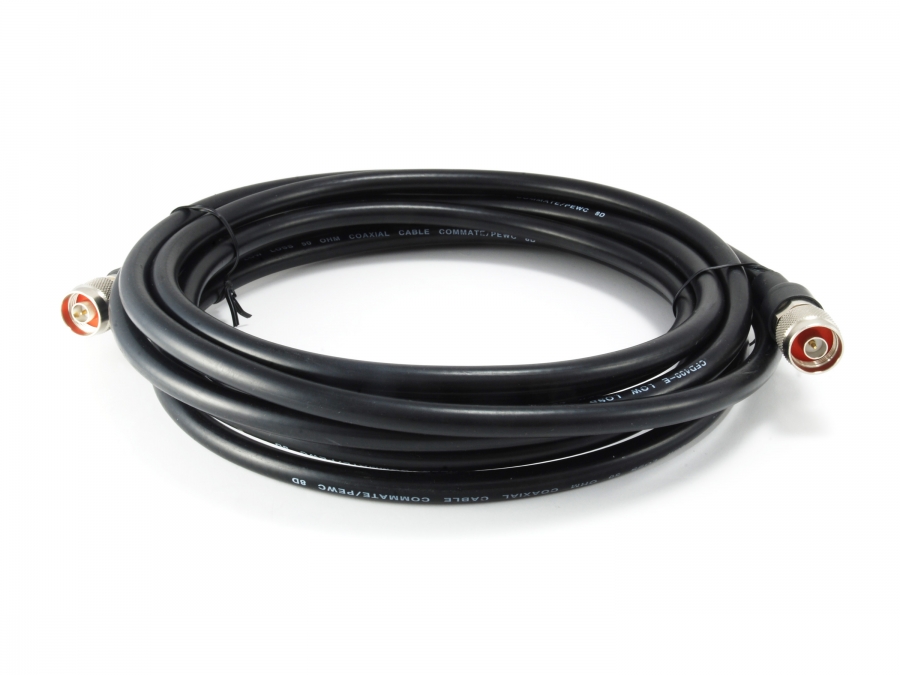

| Cable length | 5 m |

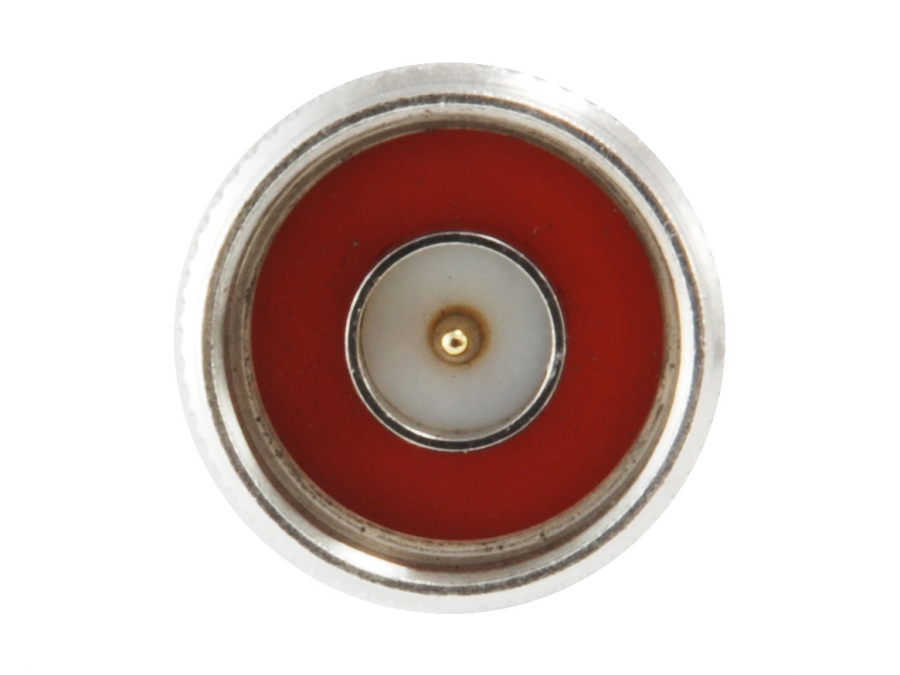

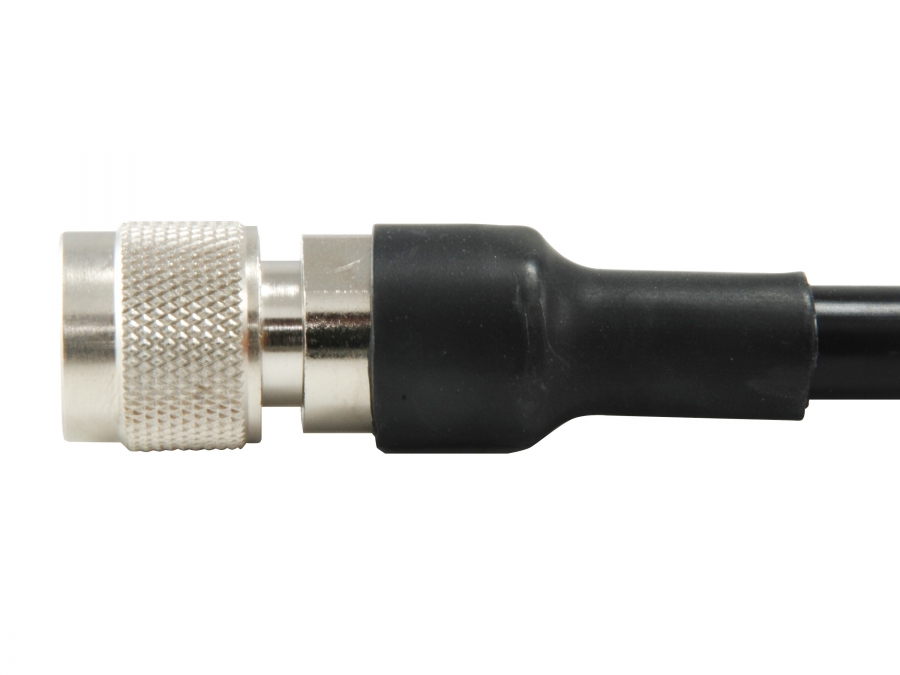

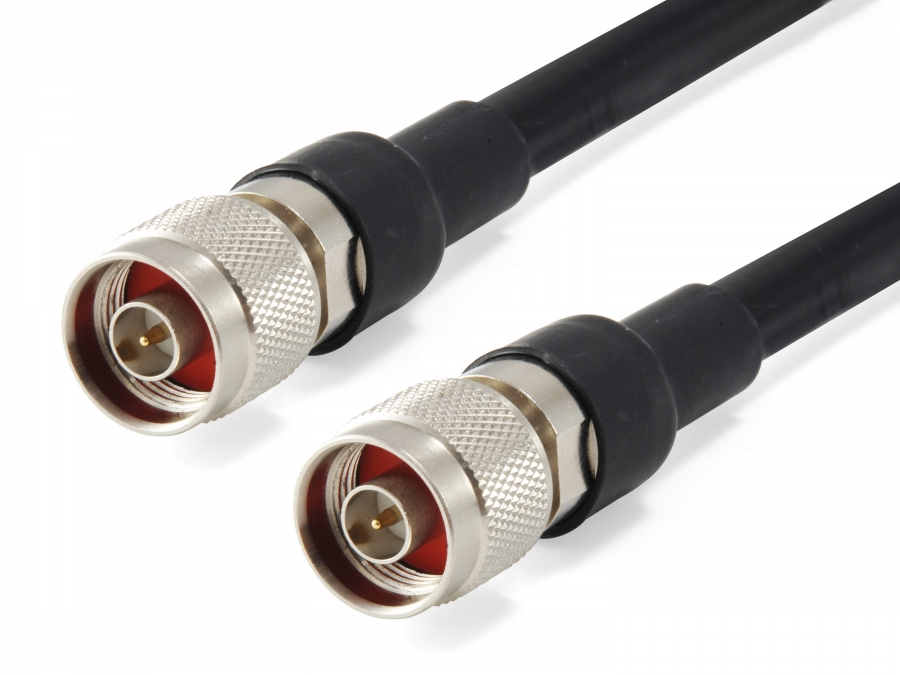

| Connector 1 | N |
| Connector 2 | N |
| Cable type | CFD400 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Product colour | Black |
| Impedance | 50 Ω |
| Frequency band | 0 - 6 GHz |
| Jacket outer diameter | 1.03 cm |
| Jacket material | Polyvinyl chloride (PVC) |
| Conductor material | Copper |
| Conductor size | 2.74 mm |
| Insulation thickness | 2.2 mm |
| Load capacitance | 23.9 pF |
| Voltage Standing Wave Ratio (VSWR) | 1.2 - 1.5 |
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Width | 235 mm |
| Depth | 235 mm |
| Height | 50 mm |
| Quantity per pack | 1 pc(s) |
| Weight | 590 g |
| Package width | 300 mm |
| Package depth | 300 mm |
| Package height | 50 mm |
| Package weight | 607 g |
| Harmonized System (HS) code | 85442000 |
| Master (outer) case width | 470 mm |
| Master (outer) case length | 335 mm |
| Master (outer) case height | 290 mm |
| Master (outer) case gross weight | 7 kg |
| Products per master (outer) case | 10 pc(s) |
