Level One LevelOne WLAN Access Point & Extender outdoor PoE DualBand

LEVEL ONE

WAB-8011

Jauns

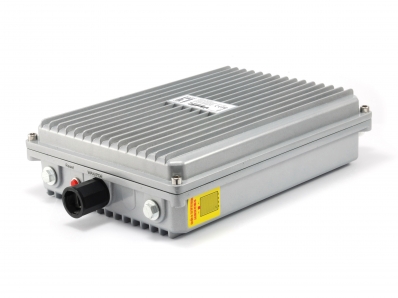

The LevelOne WAB-8011 is a managed, outdoor dual-band 802.11ac/n wireless access point, capable of a combined speed of up to 1200 Mbps. The device runs on 2.4 and 5 GHz frequencies, and can be used as part of a managed network when controlled by the LevelOne WAC-2000/WAC-2003 Wireless LAN Controller. LevelOne WAB-8011 also offers PoE, removing the need for an external power supply, which makes it easy to install. Advanced weatherproof design, rated to IP65 means the WAP is designed for outdoor deployments, and can withstand rain, humidity, dust, snow and extremely hot conditions. A fast, versatile and secure access point for a wide variety of outdoor network requirements. The LevelOne WAB-8011 is a managed, outdoor dual-band 802.11ac/n wireless access point, capable of a combined speed of up to 1200 Mbps. The device runs on 2.4 and 5 GHz frequencies, and can be used as part of a managed network when controlled by the LevelOne WAC-2000/WAC-2003 Wireless LAN Controller. LevelOne WAB-8011 also offers PoE, removing the need for an external power supply, which makes it easy to install. Advanced weatherproof design, rated to IP65 means the WAP is designed for outdoor deployments, and can withstand rain, humidity, dust, snow and extremely hot conditions. A fast, versatile and secure access point for a wide variety of outdoor network requirements.

2.4 GHzY
5 GHzY
Maximum data transfer rate1200 Mbit/s
Wi-Fi data rate (max)433 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Frequency band2.4 - 2.483, 5.15 - 5.35, 5.46 - 5.72, 5.725 - 5.82 GHz
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
Number of users100 user(s)
Channels quantity165 channels
Modulation16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM
Wi-Fi Multimedia (WMM)/(WME)Y
Operating modesAccess Point (AP),Gateway,Repeater,WISP
Quality of Service (QoS) supportY
Security algorithms64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Service Set Identifier (SSID) featuresSSID broadcast on/off
Number of SSID supported4
Web-based managementY
Firmware upgradeableY
Ethernet LAN (RJ-45) ports1
WAN connectionEthernet (RJ-45)
Power over Ethernet (PoE)Y
Power consumption (typical)30 W
Product colourGrey
International Protection (IP) codeIP65

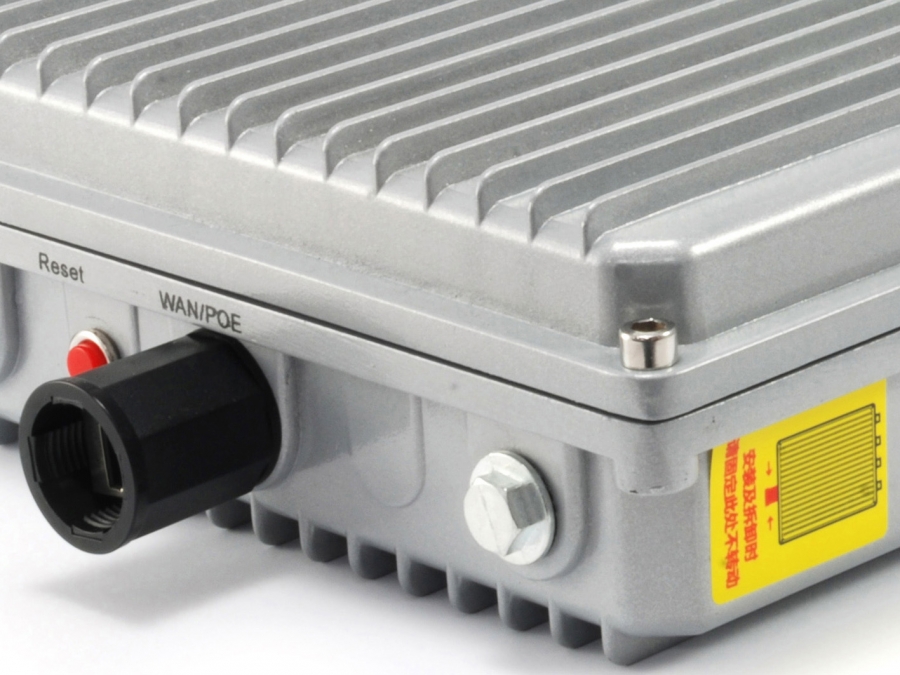

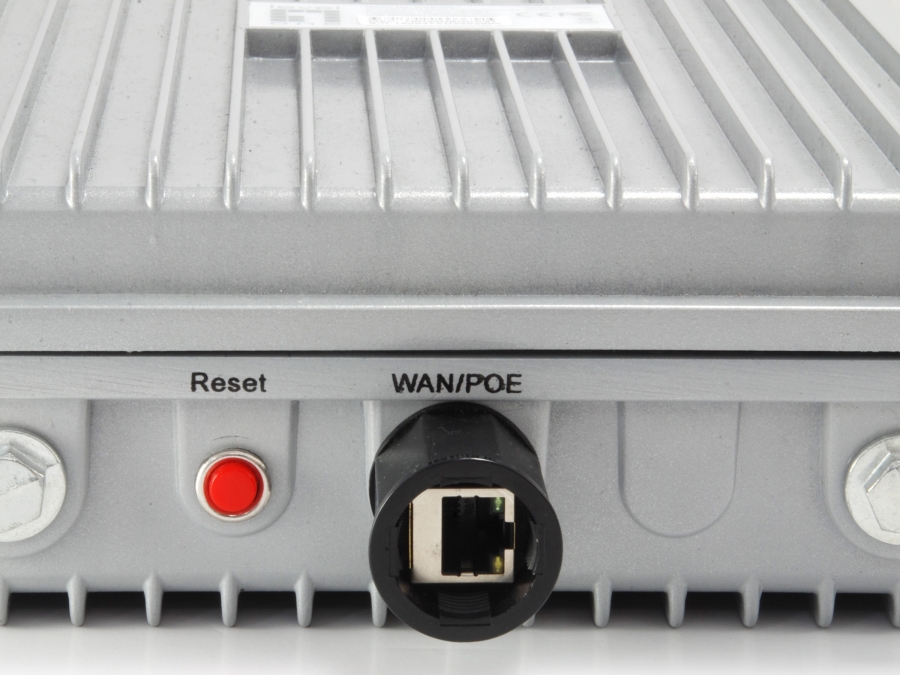

Reset buttonY
Country of originChina
CertificationCE, FCC
InternalN

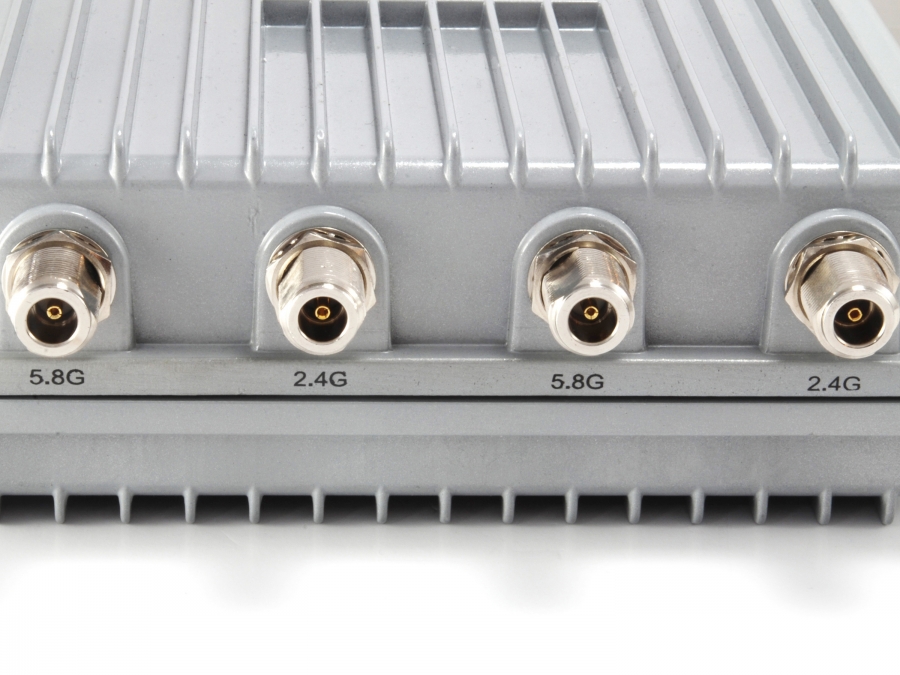

Antenna connector typeN-type
Number of connectors4
Width230 mm
Depth380 mm
Height85 mm
Weight4 kg
CD manualY
CD quick installation guideY
Package width285 mm
Package depth455 mm
Package height125 mm
Package weight4.4 kg
Package typeBox
Mounting kitY
Quick start guideY
Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)-40 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 90%
Harmonized System (HS) code85176990
Master (outer) case width475 mm
Master (outer) case length650 mm
Master (outer) case height305 mm
Master (outer) case gross weight23.5 kg
Products per master (outer) case5 pc(s)
