Level One LevelOne WLAN Access AC750 Wireless PoE DualBand

LEVEL ONE

WAP-8221

Jauns

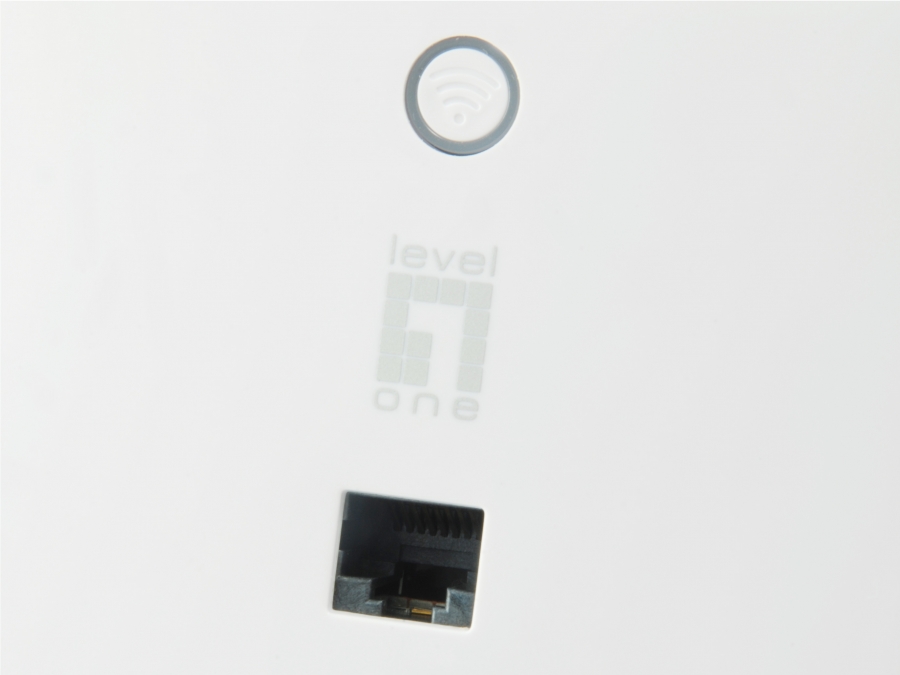

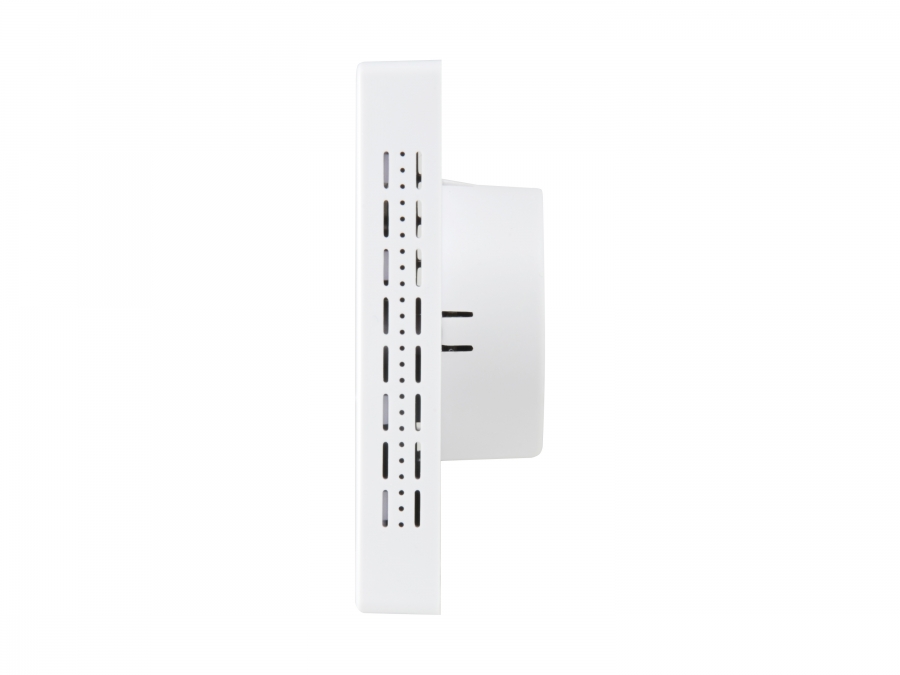

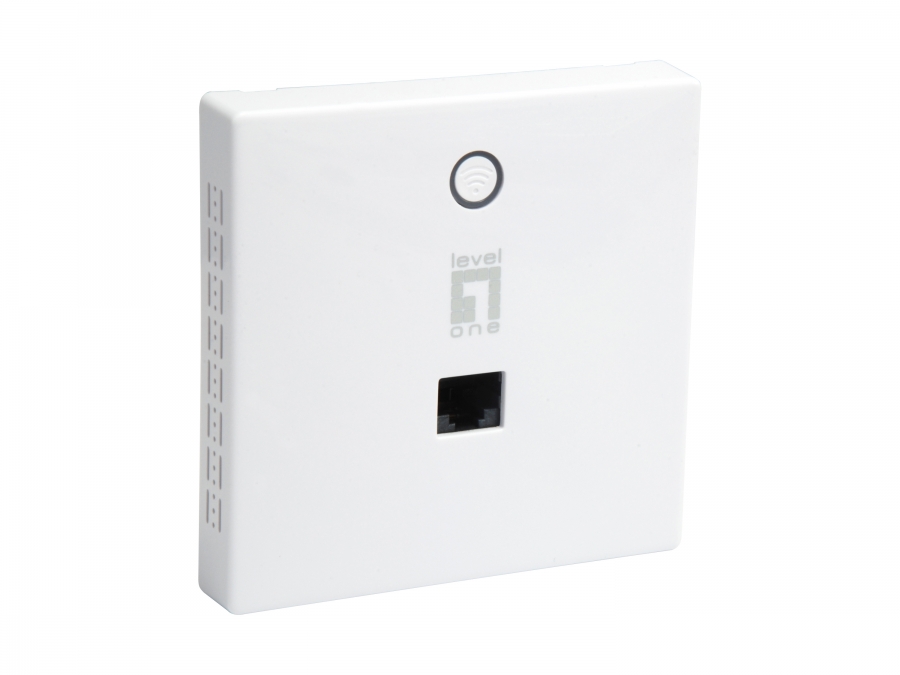

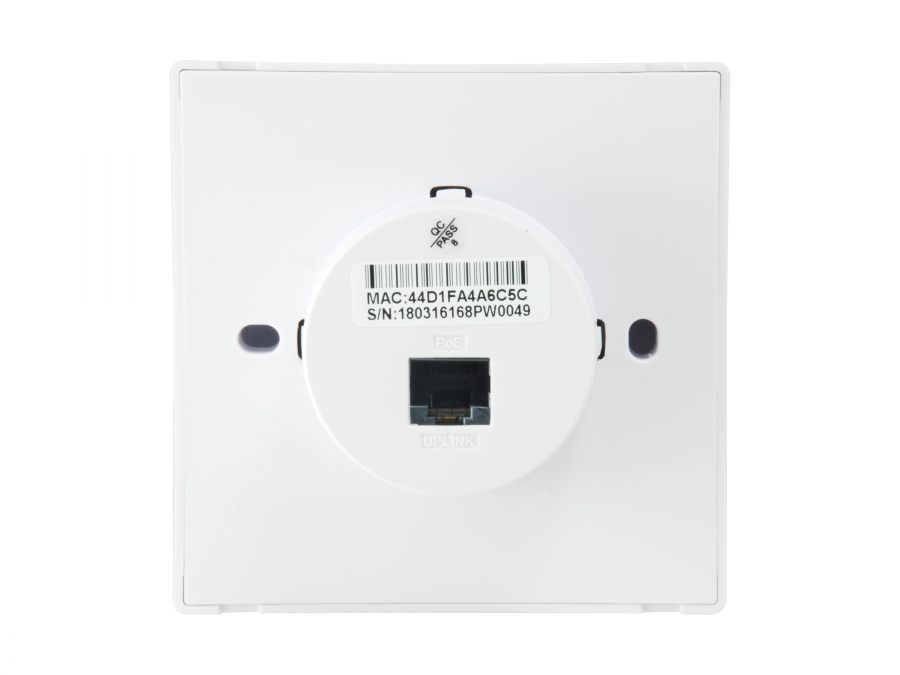

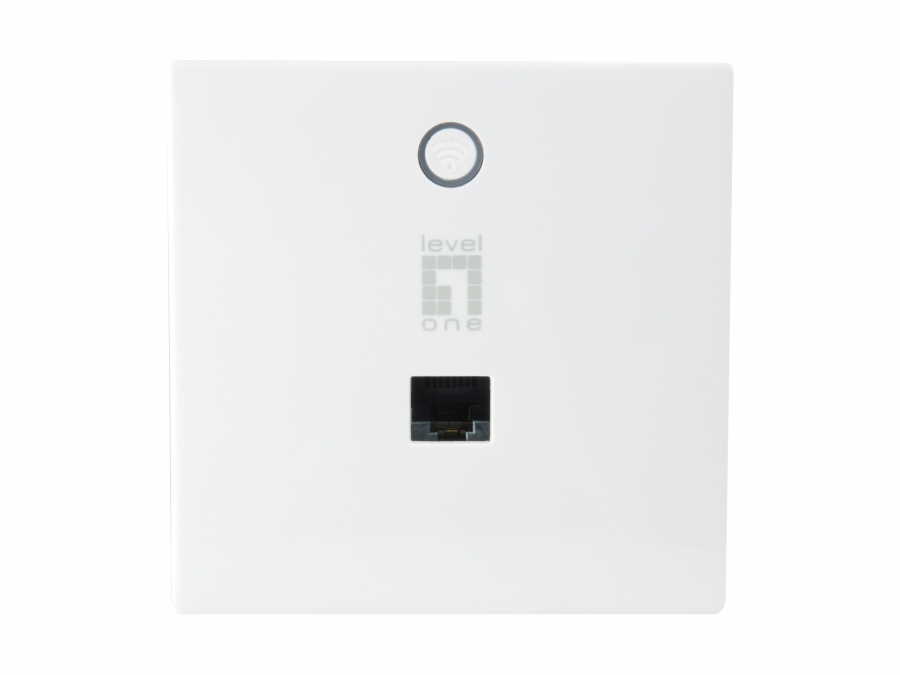

LevelOne new access point, the WAP-8221, can be used to create wireless networks that are not only technically perfect but also visually perfect. Since there is almost not to see with the wireless access point hardware: The wireless access point - just like a power outlet - is simply mounted on the wall. hotels and guesthouses can carefully set up WLANs for guests in each room. It can achieve a combined speed of up to 750 Mbps. The WAP-8221 operates in the 2.4 and 5 GHz bands and can also be used as part of a managed network when controlled by the LevelOne WAC-2000 / WAC-2003 WLAN controller. There is an RJ45 socket for the network cable on the back and front. LevelOne WAP-8221 also offers PoE, removing the need for an external power supply, which makes it easy to install. A fast, versatile and secure access point for a wide variety of network requirements.

2.4 GHzY
5 GHzY
Maximum data transfer rate750 Mbit/s
Wi-Fi data rate (max)433 Mbit/s
Ethernet LAN data rates10,100 Mbit/s
Frequency band2.4 ~ 2.483, 5.180 ~ 5.825 GHz
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
Number of users128 user(s)
Modulation16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Wi-Fi Multimedia (WMM)/(WME)Y
Operating modesAccess Point (AP),Gateway,Repeater,WISP
Flow control supportY
Quality of Service (QoS) supportY
Security algorithms64-bit WEP, 128-bit WEP, AES, TKIP, WPA, WPA-PSK, WPA2
Service Set Identifier (SSID) featuresSSID broadcast on/off
Number of SSID supported8
Web-based managementY
Switch typeManaged
Firmware upgradeableY
Ethernet LAN (RJ-45) ports1
WAN connectionEthernet (RJ-45)
Power over Ethernet (PoE)Y
Power consumption (typical)10 W
PlacementWall
Product colourWhite
Reset buttonY
LED indicatorsPower, Status
Country of originChina
CertificationCE
InternalN
Antenna featuresIntegrated antenna
Antennas quantity3
Antenna gain level (max)2 dBi
Width86 mm
Depth31 mm
Height86 mm
Weight104 g
CD manualY
CD quick installation guideY
Package width110 mm
Package depth65 mm
Package height120 mm
Package weight202 g
Package typeBox
Mounting kitY
Quick start guideY
Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)-20 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 95%
Harmonized System (HS) code85176990
Master (outer) case width340 mm
Master (outer) case length580 mm
Master (outer) case height515 mm
Master (outer) case gross weight21.3 kg
Products per master (outer) case100 pc(s)
