Level One LevelOne Antenne panel direktional innen/außen 2.4GHz 18dBi

LEVEL ONE

WAN-2182

Jauns

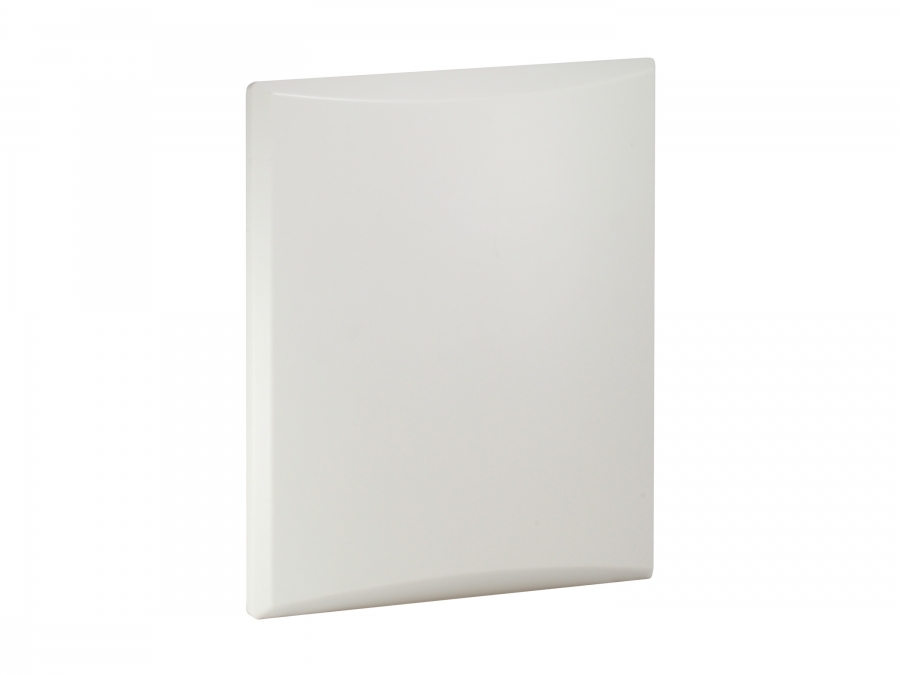

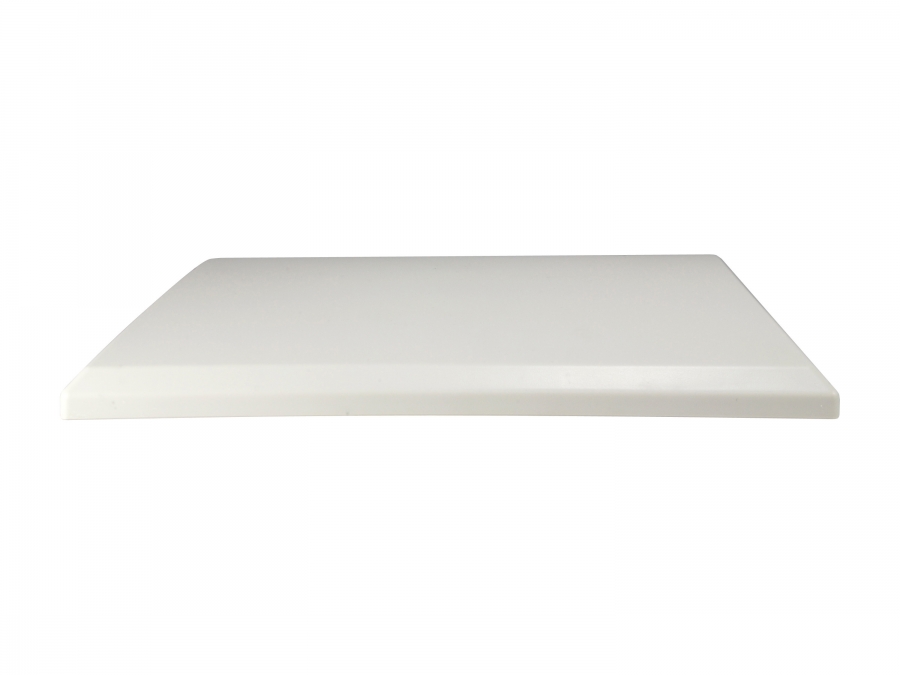

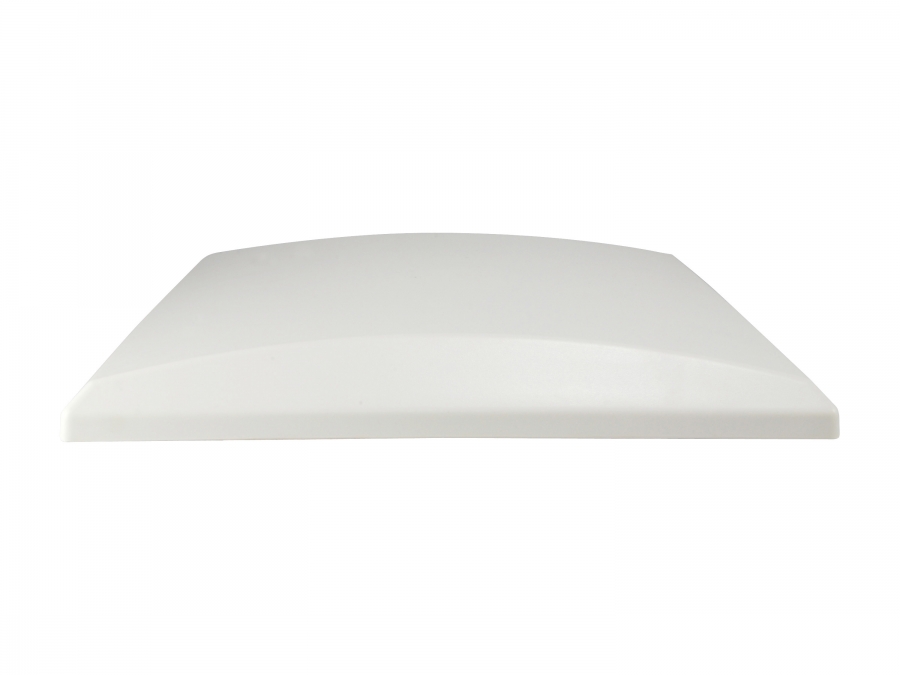

The LevelOne WAN-2182 is a directional antenna for increased performance and reduced interference, operating on the 2.4 GHz frequency. WAN-2182 can be mounted either indoors or outdoors. The antenna’s gain value is 18dBi, and if mounted outdoors the weatherproof housing can withstand temperatures from minus 30°C up to 60°C, as well as rain, snow, dust and other harsh conditions.- Provides 18dBi directional operation - Directional operation provides extended point to point coverage - For IEEE 802.11b/g/n/ac Wireless applications in 2.4GHz frequency range - Low wind loading - 40°C to 70°C operating temperature range

Antenna gain level (max)18 dBi
Frequency band2.4 GHz
Networking standardsIEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Impedance50 Ω
Horizontal beam width25.8°
Vertical beam width20.7°
Antenna typeDirectional antenna
Antenna connector typeN-type
PolarizationVertical polarization
Voltage Standing Wave Ratio (VSWR)2.0
Protection featuresDust resistant, Snow resistant, Water resistant
Survival wind speed180 km/h
PurposeIndoor & outdoor
Maximum cable loss with connectors-10 dB
Country of originTaiwan
Product colourGrey
Operating temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%
Width295 mm
Depth330 mm
Height35 mm
Weight1.04 kg
Package width333 mm
Package depth354 mm
Package height84 mm
Package weight1.79 kg

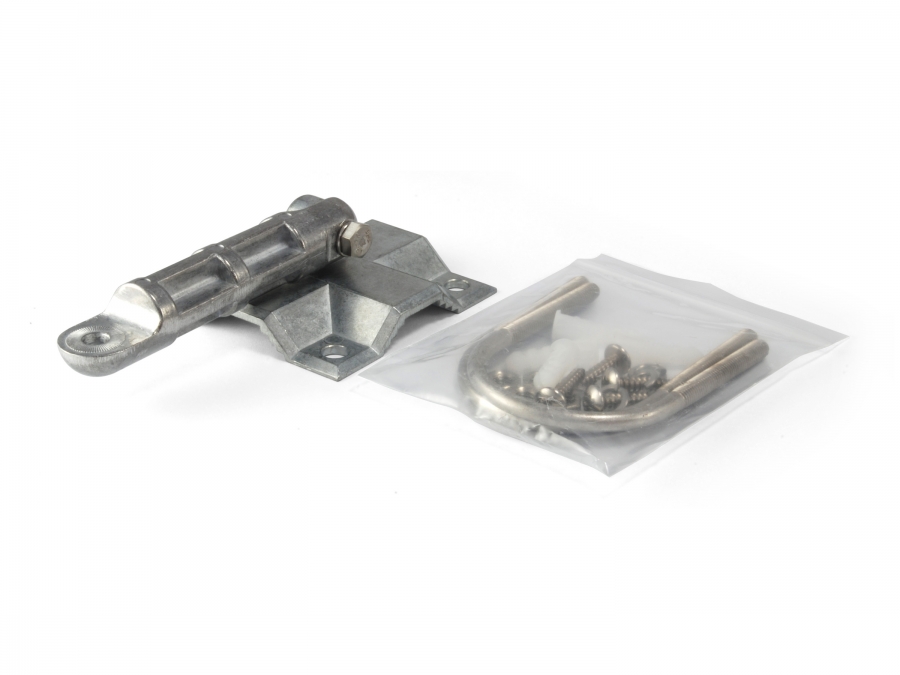

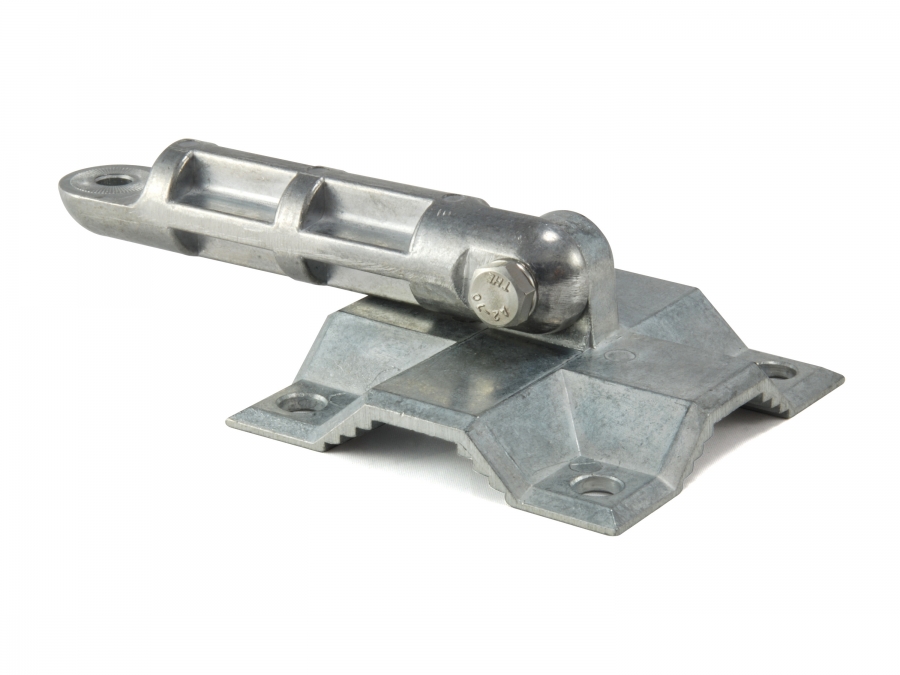

Mounting kitY
Quick installation guideY
Package typeBox
Harmonized System (HS) code85177100
Master (outer) case width460 mm
Master (outer) case length690 mm
Master (outer) case height370 mm
Master (outer) case gross weight19 kg
Products per master (outer) case10 pc(s)
