Delock Switch VGA 4 port with Audio manual

DELOCK

87636

Jauns

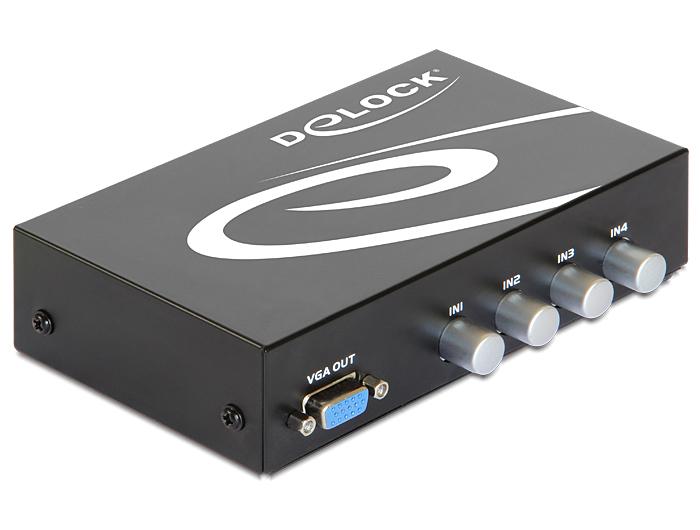

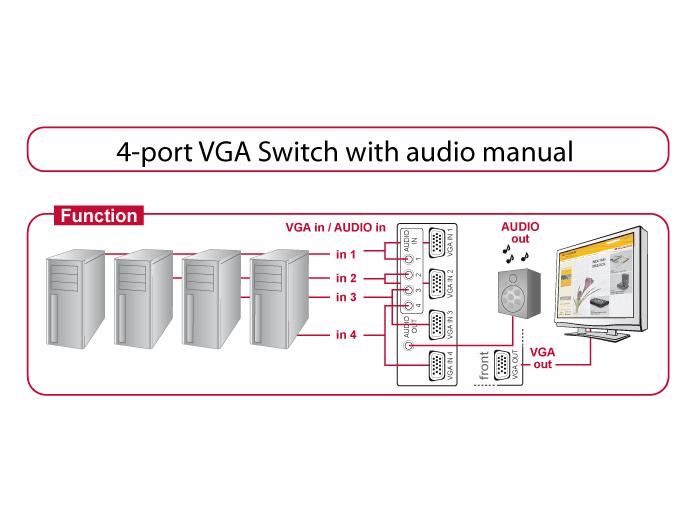

This Delock switch can be used for connection of up to 4 different computers with VGA port to one VGA display or beamer. By using one of the 4 buttons you can manually select which computer should be connected to the VGA device.

More details

Description:
This Delock switch can be used for connection of up to 4 different computers with VGA port to one VGA display or beamer. By using one of the 4 buttons you can manually select which computer should be connected to the VGA device.

Specification:

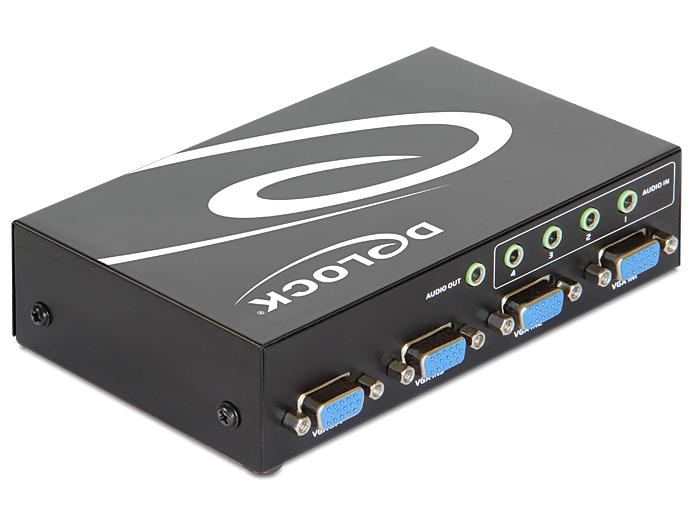

• Connector:
video output: 1 x VGA 15 pin female
audio output: 1 x 3.5 mm 3 pin stereo jack female
video input: 4 x VGA 15 pin male
audio input: 4 x 3.5 mm 3 pin stereo jack female
• 4 mechanical buttons
• Resolution: max. 1600 x 1280
• VGA bandwidth: 250 MHz
• Metal housing
• No external power supply needed
• Dimensions (LxWxH): ca. 152 x 86 x 32 mm
• Colour: black

System requirements:
• PC or notebook with one free VGA port and
one free 3.5 mm stereo jack port
• VGA and audio connection cables

Package content:
• Switch VGA
• User manual
