Delock Serial Switch RS-232 / RS-422 / RS-485 2-port manual

DELOCK

87729

Jauns

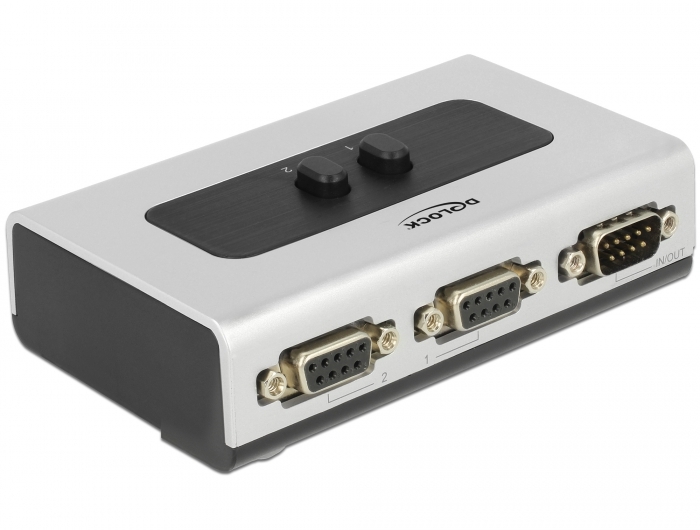

This RS-232 / RS-422 / RS-485 switch by Delock is a manually bidirectional switch for connecting different devices with RS-232 / RS-422 / RS-485 port. This switch offers two different applications.

1. It can be connected to two devices with RS-232 / RS-422 / RS-485 port e.g. computer or modem on one RS-232 / RS-422 / RS-485 port.

2. It can be connected to one device with RS-232 / RS-422 / RS-485 port on two RS-232 / RS-422 / RS-485 lines.
System requirements:
• A free Sub-D 9 pin interface
Specification:
• Connectors:
  2 x serial Sub-D 9 pin female
  1 x serial Sub-D 9 pin male
• Serial male and female ports with nuts
• Signals (1:1): TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
• 2 mechanical buttons
• Plastic housing

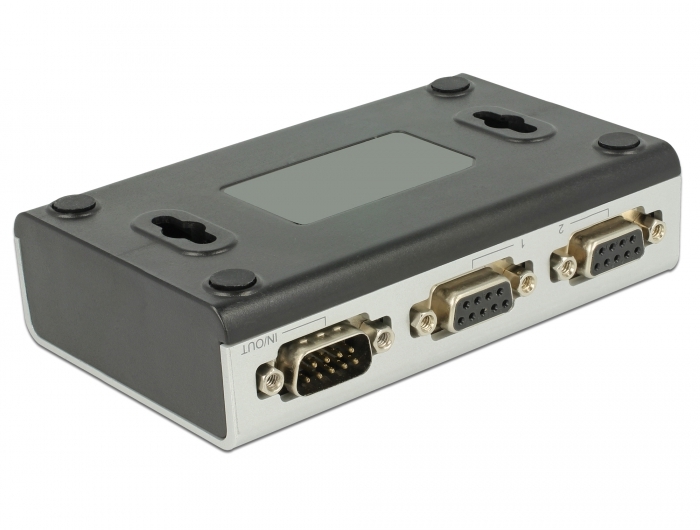

• Wallmount option
• No external power supply needed
• Dimensions (LxWxH): ca. 112 x 71 x 30 mm (without button)
• Colour: grey / black
Package content:
• Switch
• User manual
Data sheet:
http://www.delock.de/produkt/87729/pdf.html?sprache=en
