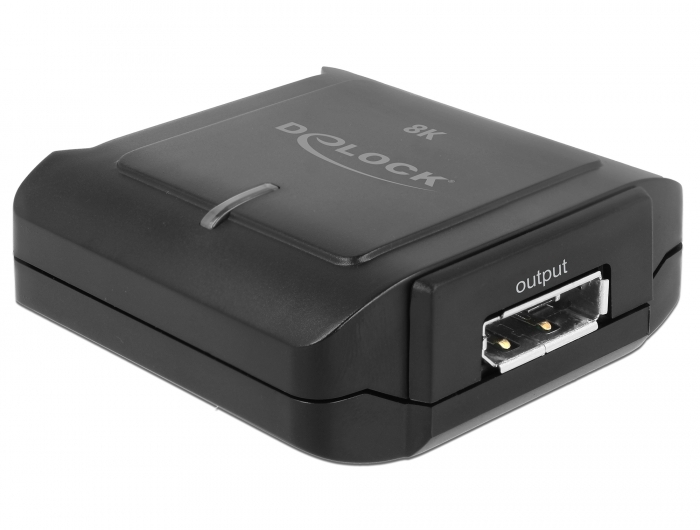

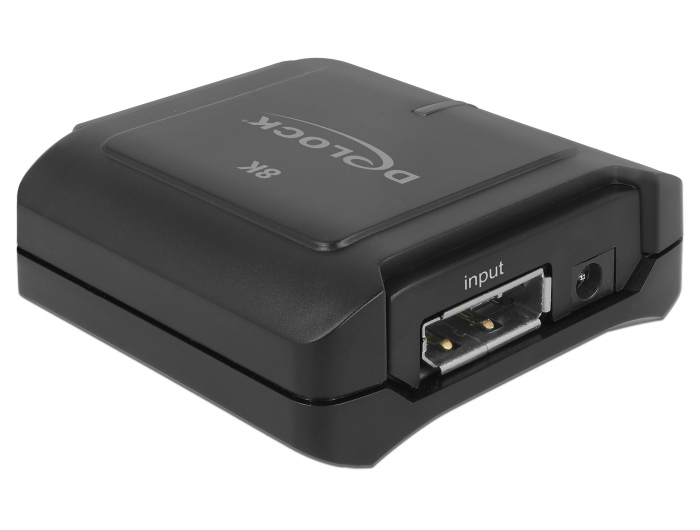

Delock DisplayPort 1.4 Repeater 8K 30 Hz

DELOCK

11474

Jauns

This DisplayPort repeater by Delock can be used for signal enhancement of a DisplayPort connection up to 12 m. An up to 2 m long cable can be connected from a PC or laptop to the input port of the repeater, and on the other side an up to 10 m long cable to the output port of the repeater, which is then connected to a display or TV.
System requirements:
• A free DisplayPort port on your system and display
• DisplayPort connection cables
Specification:
• Connectors:
  Input:
  1 x DisplayPort 20 pin female
  1 x DC 5 V power connector
  Output:
  1 x DisplayPort 20 pin female
• DisplayPort 1.4 specification
• Downwards compatible to DisplayPort 1.3, 1.2 and 1.1
• Supports HBR3 (8.1 Gbps) data rate
• Transmission of audio and video signals
• Data transfer rate up to 32.4 Gb/s
• Resolution up to:
  7680 x 4320 @ 30 Hz
  (depending on the system and the connected hardware)
• Resolution and maximum cable length:
  7680 x 4320 @ 30 Hz / 2 m in, 10 m out
• Daisy Chain (cascadable)
• Colour: black
• Dimensions (LxWxH): ca. 55 x 54 x 20 mm
Package content:
• DisplayPort repeater

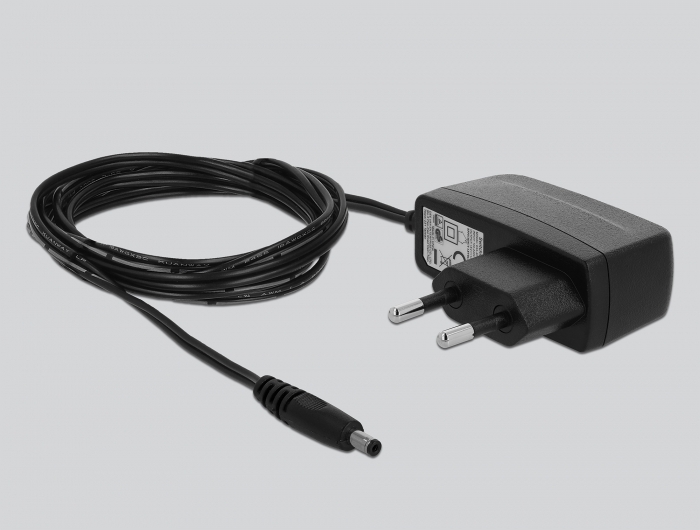

• External power supply
• User manual
Data sheet:
http://www.delock.de/produkt/11474/pdf.html?sprache=en
