Delock Mini DisplayPort 1.2 to VGA adapter with latch passive

Delock Mini DisplayPort 1.2 to VGA adapter with latch passive

DELOCK

65981

Jauns

Salīdzināt

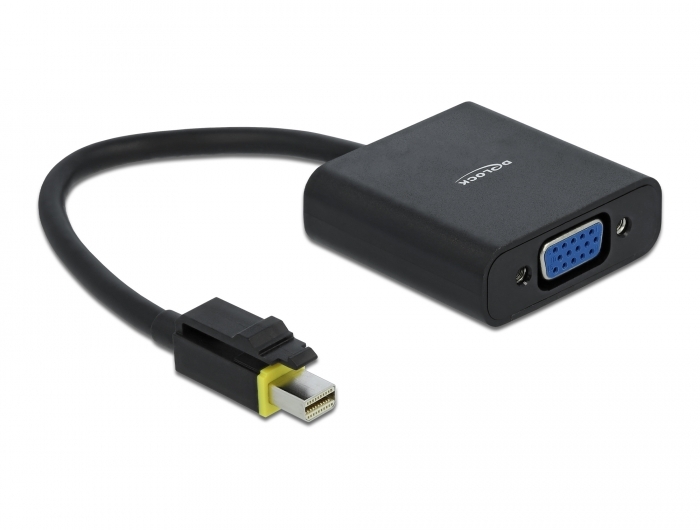

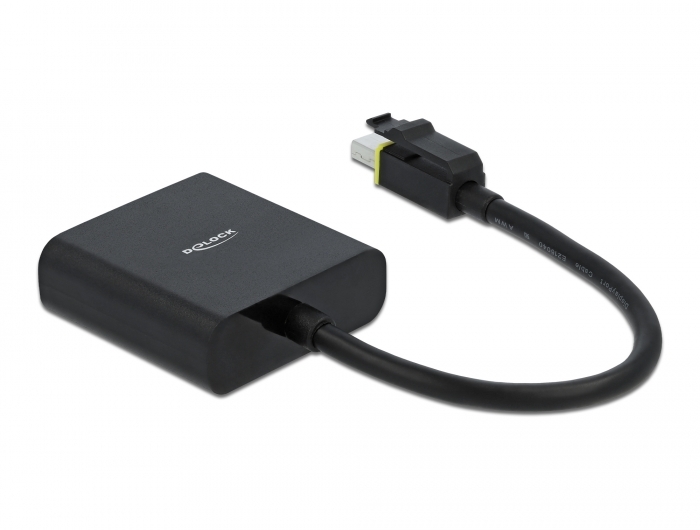

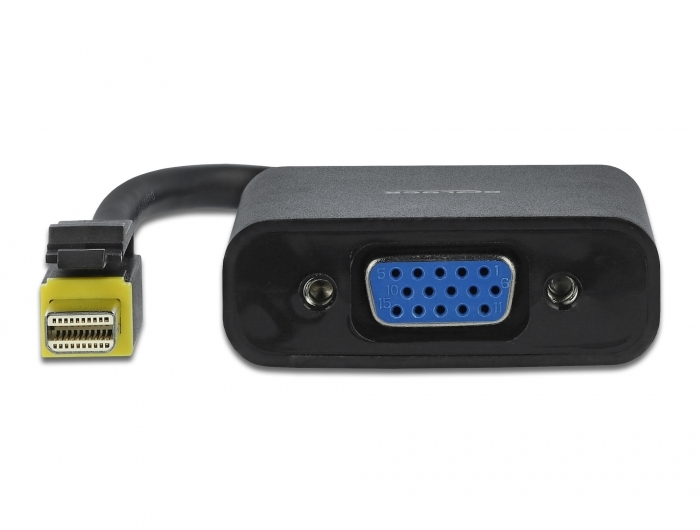

This mini DisplayPort adapter by Delock can be used to connect a VGA monitor to graphics cards with mini DisplayPort ports that have special notches in the slot bracket above the ports. The additional latch of the plug of the adapter snaps into the notch and prevents the adapter from being pulled out unintentionally.
System requirements:
• A free mini DisplayPort DP++ female
Specification:
• Connectors:
  1 x mini DisplayPort male with latch >
  1 x VGA female
• Chipset: Analogix ANX9833
• DisplayPort 1.2 specification
• Passive converter (level shifter), suitable only for graphics cards with DP++ output
• Cable gauge: 32 AWG
• Cable diameter: ca. 4.8 mm
• Contacts gold-plated
• LS0H (halogen-free)
• Resolution up to 1920 x 1200 @ 60 Hz
  (depending on the system and the connected hardware)
• Transfer of digital video signals
• Cable length incl. connectors: ca. 15 cm
• Colour: black
Package content:
• Adapter mini DisplayPort to VGA
Data sheet:
http://www.delock.de/produkt/65981/pdf.html?sprache=en
