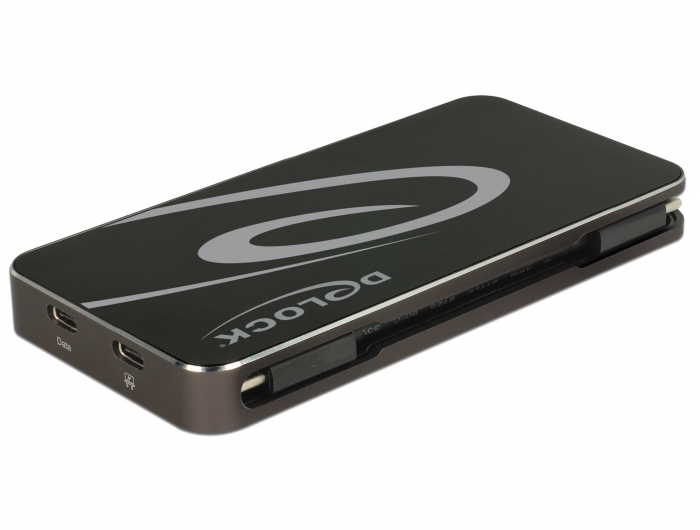

Delock USB Type-C™ 3.1 Docking Station HDMI + DP + VGA 1080p, USB Hub and USB PD function




This docking station by Delock can be connected to a computer with a USB-C™ Alt-Mode or Thunderbolt™ 3 port and provides a variety of interfaces. Three monitors can be operated simultaneously at the Displayport, HDMI and VGA outputs, the same image is displayed on all ports. Two built-in USB Type-A ports and one USB Type-C™ port allows the use of peripherals. With a USB-C™ power supply, laptops such as the Macbook or Chromebook can be charged during operation.
System requirements:
• Windows 8.1/8.1-64/10/10-64, Windows 10 Mobile, Android ex 6.0, Mac OS ex 10.12
• Device with a free USB Type-C™ port and Displayport alternate mode
  or with a free Thunderbolt™ 3 port

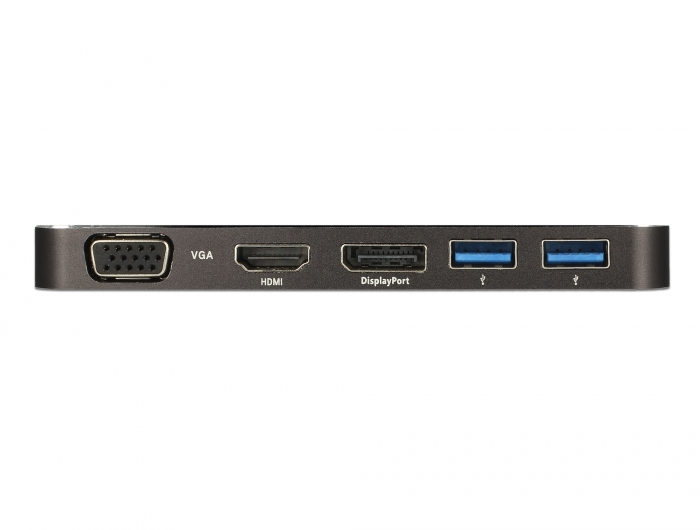

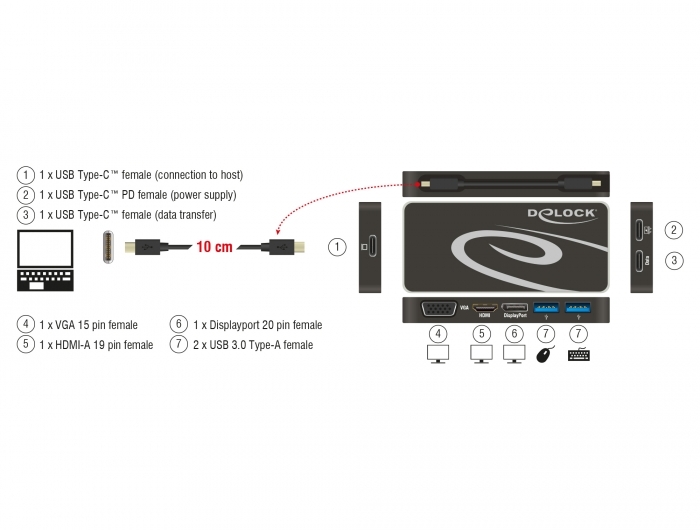

• Connectors:
  1 x HDMI-A 19 pin female
  1 x Displayport 20 pin female
  1 x VGA 15 pin female
  1 x USB Type-C™ PD female (power supply)

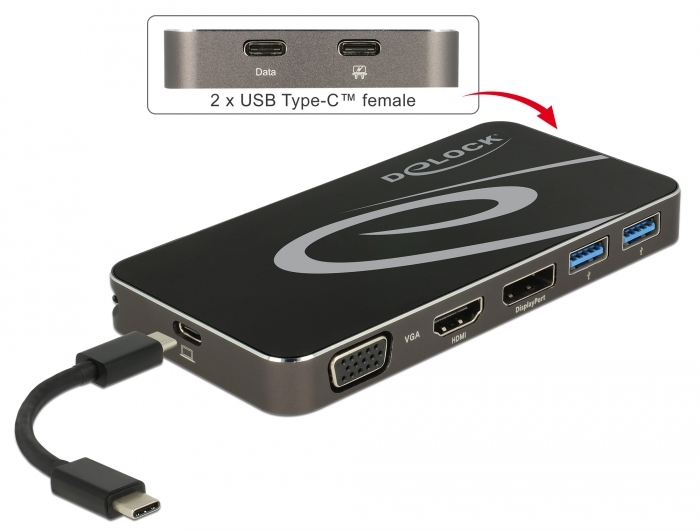

  1 x USB Type-C™ female (data transfer)
  1 x USB Type-C™ female (connection to host)
  2 x USB 3.0 Type-A female
• Chipset: VL101R, VL170, VL813, CH7039
• Resolution up to 1080p @ 60 Hz
  (depending on the system and the connected hardware)
• Transmission of audio and video signals
• Setting: extended, mirrored, primary display
• Output power: 4.5 W per port
• Input power: 1 x USB Type-C™ female max. 60 W
• Colour: black
• Dimensions (LxWxH): ca. 127 x 63 x 14 mm
Package content:
• USB-C™ docking station

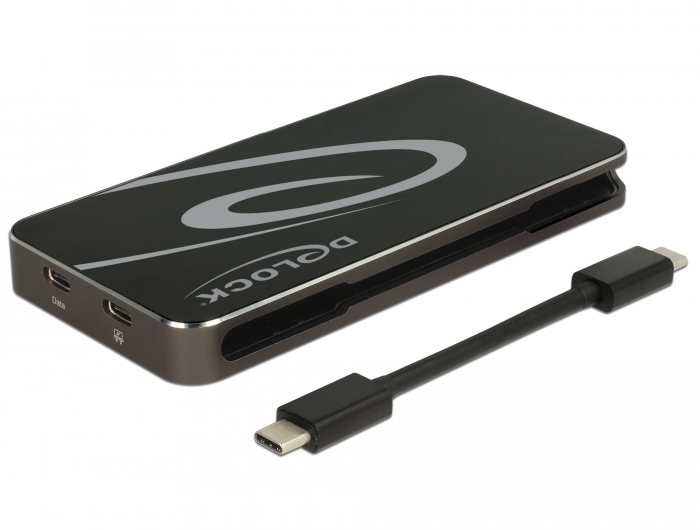

• Cable USB-C™ male to USB-C™ male, length ca. 10 cm
• User manual
