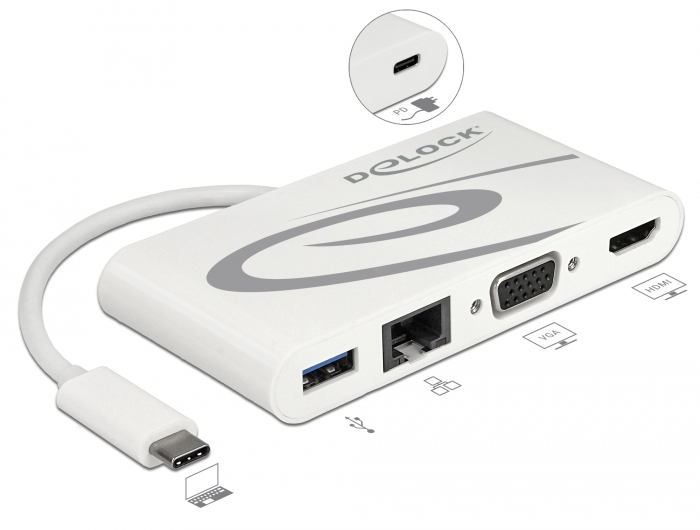

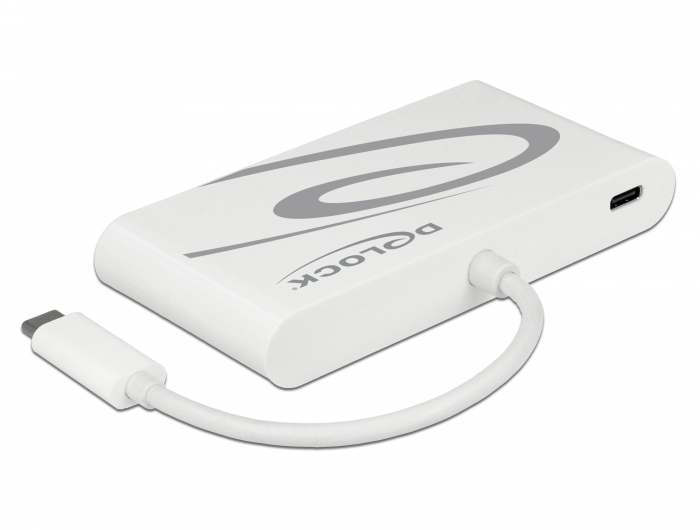

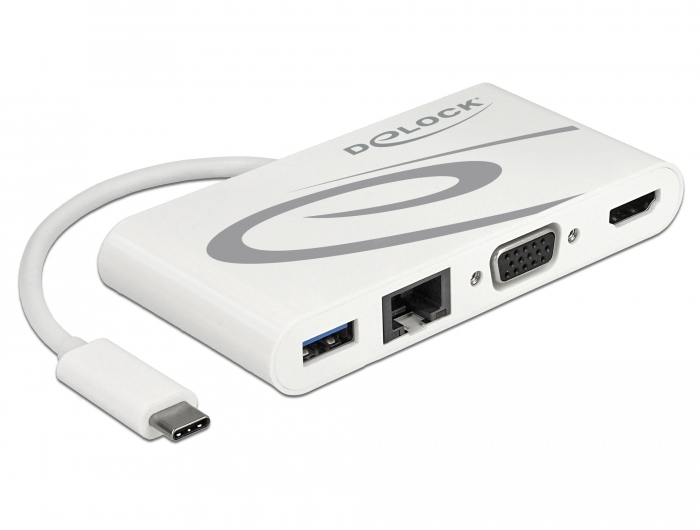

Delock USB Type-C™ 3.1 Docking Station HDMI 4K 30 Hz + VGA + LAN + USB PD

DELOCK

87731

Jauns

This docking station by Delock can be connected to a computer with a USB-C™ Alt Mode or Thunderbolt™ 3 port and provides a variety of interfaces. One monitor can be operated at the HDMI or VGA output. One built-in USB Type-A port allows the use of peripherals. With a USB-C™ power supply, laptops such as the MacBook or Chromebook can be charged during operation.
System requirements:
• Android 8.0 or above
• Linux Kernel 4.6 or above
• Mac OS 10.9 or above
• Windows 8.1/8.1-64/10/10-64
• Windows 10 Mobile
• PC or laptop with a free USB Type-C™ port and DisplayPort alternate mode or
• PC or laptop with a free Thunderbolt™ 3 port
Specification:

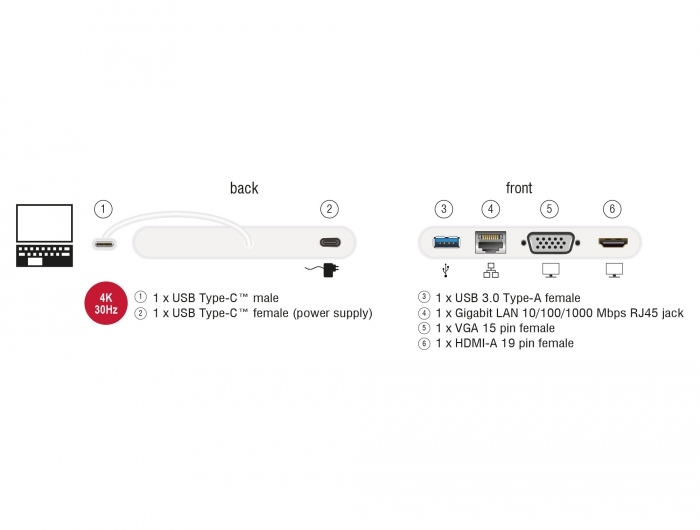

• Connectors:
  front side:
  1 x Gigabit LAN 10/100/1000 Mbps RJ45 jack
  1 x HDMI-A 19 pin female
  1 x VGA 15 pin female
  1 x USB 3.0 Type-A female
  back side:
  1 x USB Type-C™ female (power supply)
  1 x USB Type-C™ male
• Resolution:
  HDMI up to 2560 x 1440 @ 60 Hz / 3840 x 2160 @ 30 Hz
  (depending on the system and the connected hardware)
  VGA up to 1920 x 1080 @ 60 Hz
  (depending on the system and the connected hardware)
• Transmission of audio and video signals
• Only 1 monitor usable with the adapter
• Output power USB Type-A female: max. 4.5 W
• Input power PD: max. 100 W
• Cable length incl. connector: ca. 14 cm
• Colour: white
• Dimensions (LxWxH): ca. 103 x 52 x 16 mm
Package content:
• USB-C™ docking station
• User manual
Data sheet:
http://www.delock.de/produkt/87731/pdf.html?sprache=en
