Delock USB Type-C™ DP 1.4 Docking Station Triple 4K Display - HDMI / DisplayPort / USB / LAN / SD / PD 3.0

DELOCK

87772

Jauns

This docking station by Delock can be connected to a computer with a USB-C™ DP Alt Mode or Thunderbolt™ 3 port and provides a variety of interfaces. Up to three monitors can be operated simultaneously at the DisplayPort and HDMI outputs. Four built-in USB ports allow the use of peripherals, connections for headset and Gigabit network, as well as SD and Micro SD slot complete the features.

Multi-Stream Transport (MST)
The product is an MST hub and supports the extended desktop configuration of DisplayPort. This allows multiple monitors to be combined into one large display. The maximum resolution for simultaneous playback on two or three monitors depends on the system and connected hardware.

USB Power Delivery (USB PD 3.0) support up to 85 watt
The docking station has a USB Type-C™ Power Delivery port to connect the power supply of the laptop or tablet to charge it.

Stand

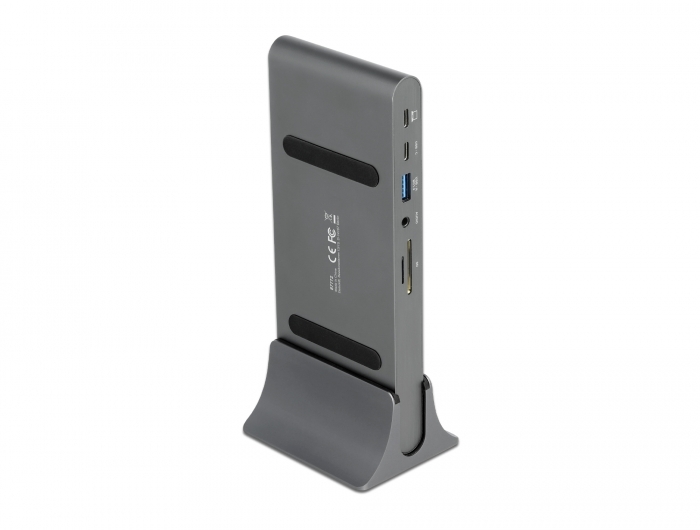

The Delock docking station can be operated either horizontally or vertically. A stand is included for vertical operation.
System requirements:
• Android 9.0 or above
• iPad Pro (2018)
• Mac OS 10.15.5 or above
• Windows 8.1/8.1-64/10/10-64
• Device with a free USB Type-C™ port and DisplayPort alternate mode or with a free
  Thunderbolt™ 3 port
Specification:
• Connectors:
  1 x SuperSpeed USB (USB 3.2 Gen 1) USB Type-C™ female >
  1 x SuperSpeed USB (USB 3.2 Gen 1) USB Type-C™ female
  1 x SuperSpeed USB (USB 3.2 Gen 1) Type-A female - Battery Charging
  specification BC1.2
  2 x SuperSpeed USB (USB 3.2 Gen 1) Type-A female
  1 x HDMI-A female
  2 x DisplayPort female
  1 x Gigabit LAN 10/100/1000 Mbps RJ45 jack
  1 x Headset 3.5 mm 4 pin jack
  1 x SD slot
  1 x Micro SD slot
  1 x DC jack
• Maximum resolution (depending on the system and the connected hardware):

with DSC:

Single DisplayHDMI: 3840 x 2160 @ 60 Hz
DP: 5120 x 2880 @ 60 Hz
Dual Display SSTHDMI + DP: 2 x 3840 x 2160 @ 60 Hz
DP + DP: 2 x 5120 x 2880 @ 60 Hz
Triple Display SSTHDMI + 2 x DP: 3 x 3840 x 2160 @ 60 Hz
Dual Display MSTHDMI + DP: 2 x 3840 x 2160 @ 60 Hz
DP + DP: 2 x 3840 x 2160 @ 60 Hz
Triple Display MSTHDMI + 2 x DP: 3840 x 2160 @ 60 Hz + 2 x 3840 x 2160 @ 30 Hz

without DSC:

Single DisplayHDMI: 3840 x 2160 @ 60 Hz
DP: 3840 x 2160 @ 60 Hz
Dual Display SSTHDMI + DP: 2 x 3840 x 2160 @ 60 Hz
DP + DP: 2 x 3840 x 2160 @ 60 Hz
Triple Display SSTHDMI + 2 x DP: 3 x 3840 x 2160 @ 60 Hz
Dual Display MSTHDMI + DP: 2 x 3840 x 2160 @ 30 Hz
DP + DP: 2 x 3840 x 2160 @ 30 Hz
Triple Display MSTHDMI + 2 x DP: 3840 x 2160 @ 30 Hz + 2 x 1920 x 1080 @ 60 Hz

• Transmission of audio and video signals
• Functions: Mirrored or Extended (depending on the operating system)
• Supports HDCP 1.4
• Supports HDR
• Output power for host: max. 85 W
• Colour: grey
• Dimensions (LxWxH): ca. 180 x 77 x 18 mm

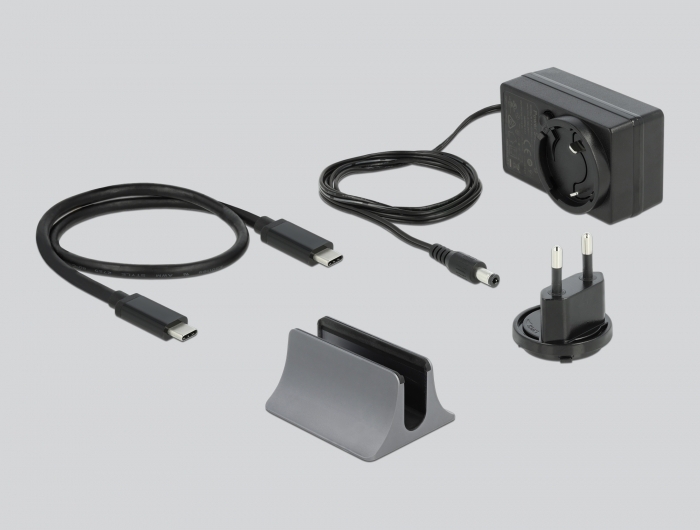

Package content:
• USB-C™ docking station
• Cable USB-C™ male to USB-C™ male, length ca. 50 cm
• Stand
• Power supply
• User manual
Data sheet:
http://www.delock.de/produkt/87772/pdf.html?sprache=en
