Delock M.2 Docking Station for 2 x M.2 NVMe PCIe SSD with Clone function

DELOCK

63331

Jauns

This M.2 docking station by Delock enables the installation of two M.2 PCIe NVMe SSDs and it can be connected via USB to the PC or laptop. The included USB cable allows the connection to a free USB-C™ port.

M.2 PCIe SSD clone function

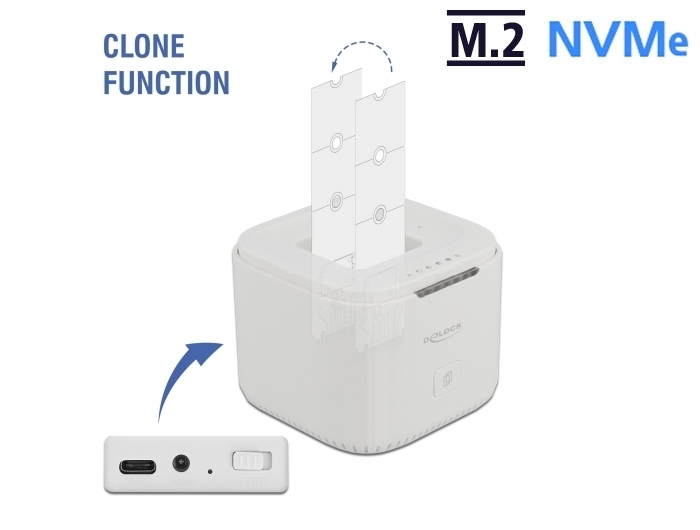

The clone function enables to copy the content of one SSD to another without using a PC.

Good cooling
A fan in the bottom area of the docking station ensures sufficient cooling of the SSDs used, so that the operation also works without problems with closed lid.

Suitable as transport box
Due to the elegant design and the specially designed lid, the docking station is also suitable as a transport box for two M.2 memories.
System requirements:
• Android 9.0 or above
• Chrome OS 83.0 or above
• iPad Pro (2018)
• Linux Kernel 5.4 or above
• Mac OS 10.15.6 or above
• Windows 8.1/8.1-64/10/10-64
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 port
Specification:
• Connectors:
  1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ female
  2 x 67 pin M.2 key M slot
  1 x DC jack
• Chipset: Asmedia ASM2362
• Supports M.2 modules with key M or key B+M based on PCIe (NVMe)
• Supports NVM Express (NVMe)
• Data transfer rate up to 10 Gbps
• Supports UASP
• LED indicator for power, access and copy status
• Function key:
  1 x Clone button
  1 x On / Off switch
• Dimensions (LxWxH): ca. 132 x 93 x 93 mm
• Hot Plug, Plug & Play
Package content:
• M.2 docking station

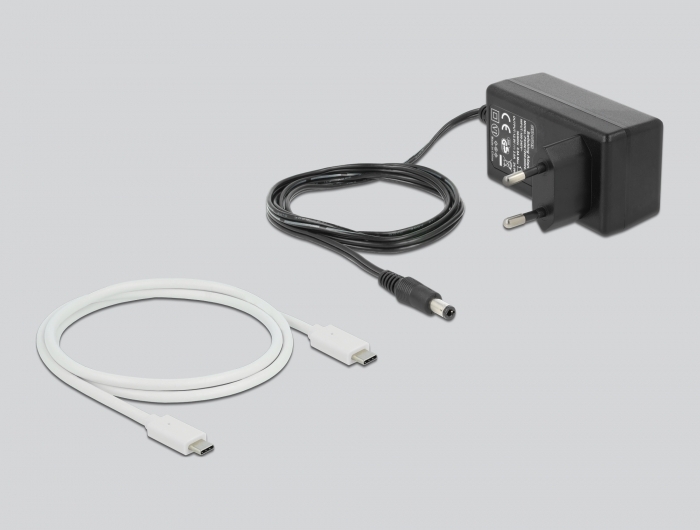

• Cable USB-C™ male to USB-C™ male, length ca. 1 m
• External power supply 12 V / 2 A
• User manual
Data sheet:
http://www.delock.de/produkt/63331/pdf.html?sprache=en
