Icy Box Dockingstation IcyBox DisplayLink Hybrid 4x4K@60HZ USB-C+A retail

Manufacturer: ICY BOX

Kods IB-DK2280AC

Condition: Jauns

Vairāk informācijas

Always well connected
As a multi-port DockingStation, the IB-DK2280AC features five USB 3.2 Gen 1 ports with data transfer rates of up to 5 Gbit/s and a new USB Type-C® port with up to 10 Gbit/s. This allows you to connect a variety of even older devices and ensure that your hardware always stays connected.

Prepared for all challenges
The integrated SD 4.0 card reader and additional USB ports let you exchange files quickly in between devices. USB-C Power Delivery with up to 100 W, a 2.5 Gbit Ethernet port, and a 3.5 mm audio input and output add and expand the capabilities of your computer with the ports you really need.

Cross-system compatibility

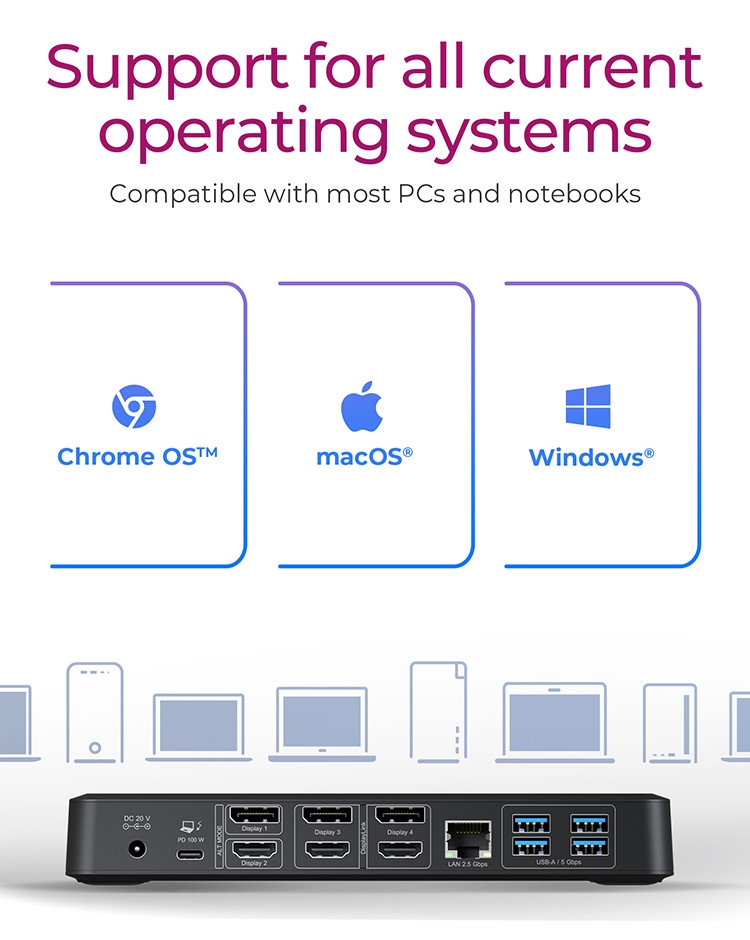

The full quad-display experience is available with Windows® 10 or Chrome OS™ 100 or later. Only macOS® does not support Display- Port™ MST. Nevertheless, the IBDK2280AC allows you to connect up to three additional displays to your iMac or MacBook.

Connectivity technology	Wired
Host interface	USB4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
HDMI ports quantity	3
Microphone in	N
Headphone outputs	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Power Delivery	Y
USB Power Delivery up to	100 W
HDMI version	2.0/2.1
DisplayPorts quantity	3
DisplayPort version	1.4
Combo headphone/mic port	Y
Headphone connectivity	3.5 mm
DC-in jack	Y
USB Type-C DisplayPort Alternate Mode	Y
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	2500 Mbit/s
Product colour	Black
Card reader integrated	Y
Compatible memory cards	SD
Data transfer rate	10 Gbit/s
Maximum digital resolution	7680 x 4320 pixels
Number of displays supported	4
Maximum refresh rate	60 Hz
Cable lock slot	Y
Cable lock slot type	Kensington
On/off switch	Y
LED indicators	Power
Plug and Play	Y
UASP support	Y
Housing material	Acrylonitrile butadiene styrene (ABS)
Country of origin	Taiwan
Power source type	DC
AC input voltage	100-240 V
AC input frequency	50/60 Hz
Power supply	135 W
Output voltage	20 V
Output current	6.75 A
Compatible power plug types	EU
Windows operating systems supported	Y
Mac operating systems supported	Y
Linux operating systems supported	Y
Other operating systems supported	ChromeOS
Width	218 mm
Depth	90 mm
Height	31 mm
Weight	490 g
Quantity per pack	1 pc(s)
Package width	279 mm
Package depth	93 mm
Package height	118 mm
Package weight	1.3 kg
Cables included	USB Type-C to USB Type-C
AC adapter included	Y
Manual	Y
Products per master (outer) case	5 pc(s)
Master (outer) case width	300 mm
Master (outer) case length	300 mm
Master (outer) case height	280 mm
Master (outer) case gross weight	8.46 kg
Cable length	1 m
