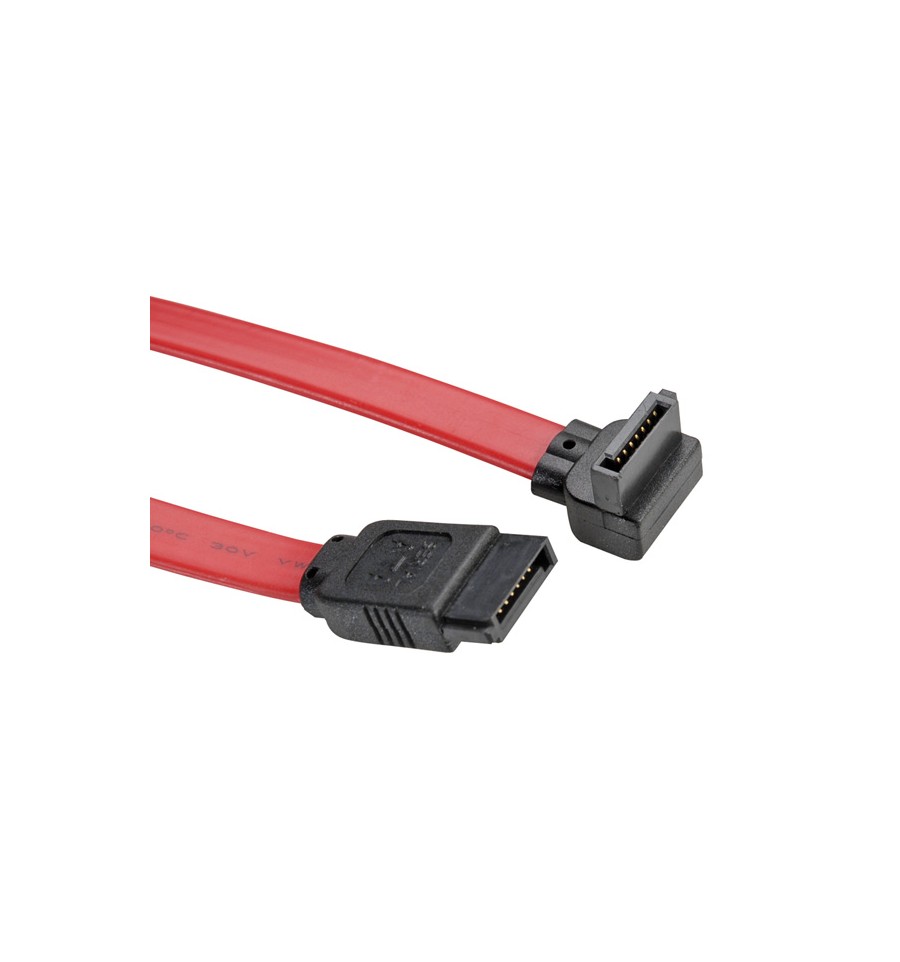

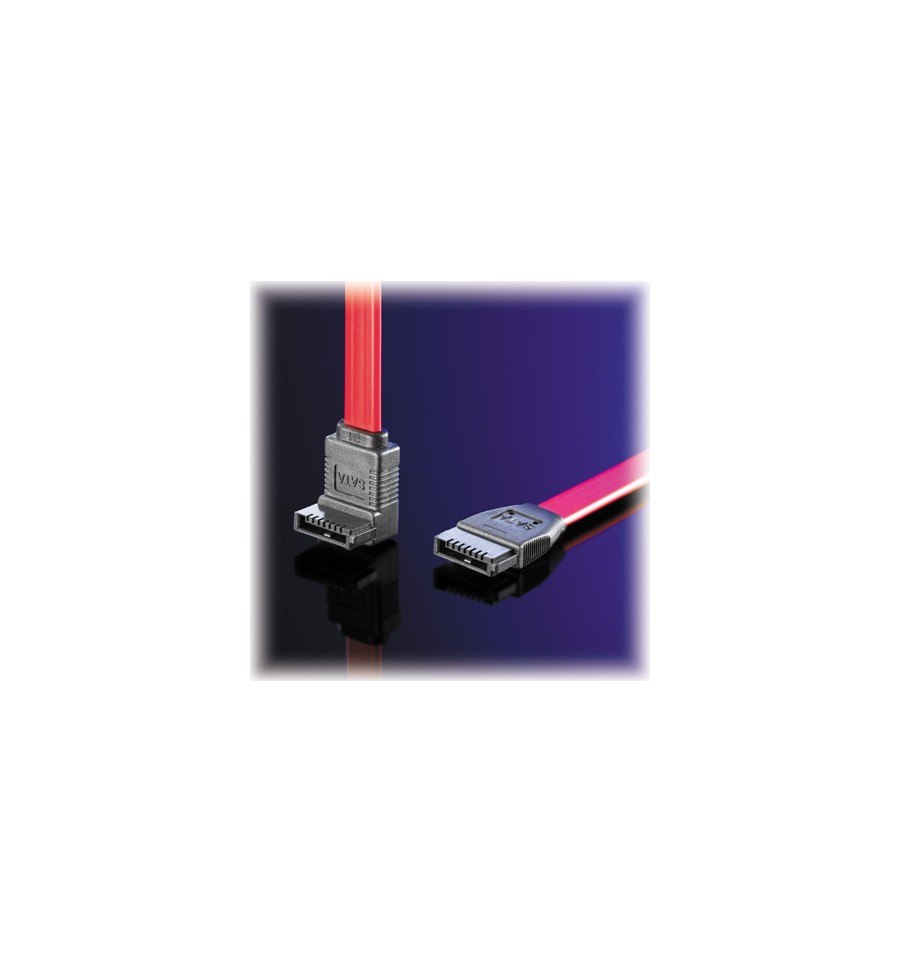

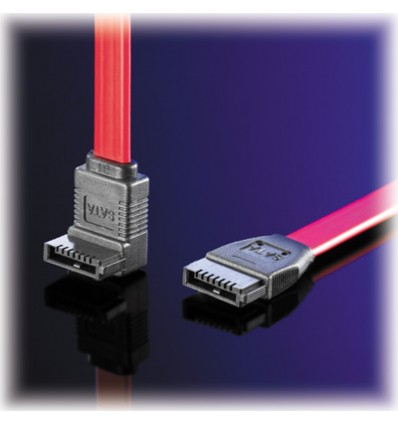

ROLINE Internal SATA 3.0 Gbit/s Cable, angled 1 m

ROLINE

11.03.1561

Jauns

The narrow high quality cable design simplifies cable, routing and installation and improves the internal air flow.
  • Connect your high-speed Serial ATA device (e. g. HDD) to a Serial ATA Controller
  • Support data transfer rates of up to 3.0 Gbit/s (SATA II)
  • Compatible with SATA 1.5 Gbit/s (SATA I)
  • 4-pin cable with ground wires
  • Connectors: 2x internal 7...

More details

The narrow high quality cable design simplifies cable, routing and installation and improves the internal air flow.
  • Connect your high-speed Serial ATA device (e. g. HDD) to a Serial ATA Controller
  • Support data transfer rates of up to 3.0 Gbit/s (SATA II)
  • Compatible with SATA 1.5 Gbit/s (SATA I)
  • 4-pin cable with ground wires
  • Connectors: 2x internal 7-pin SATA
  • Cable with angled to one side SATA connector, e. g. for the use inside narrow housings or mini PCs
Area of applicationInternal
Cable compositionSATA
Cable shieldingNot screened
Colour (Cable)red
Conveyance goodNo
Left Connector GenderMale
Left Connector TypeSATA 7-pin (Data)
Length1.0 m
ManufacturerROLINE
Manufacturer Item No.11.03.1561
Max. bandwidth3 Gbit/s
Product groupCable
Right Connector GenderMale
Right Connector TypeSATA 7-pin (Data)
side 1 connectorSATA Male 7-pin, angled
side 2 connectorSATA Male 7-pin

eSATA / S-SATA / ATA / IDE
