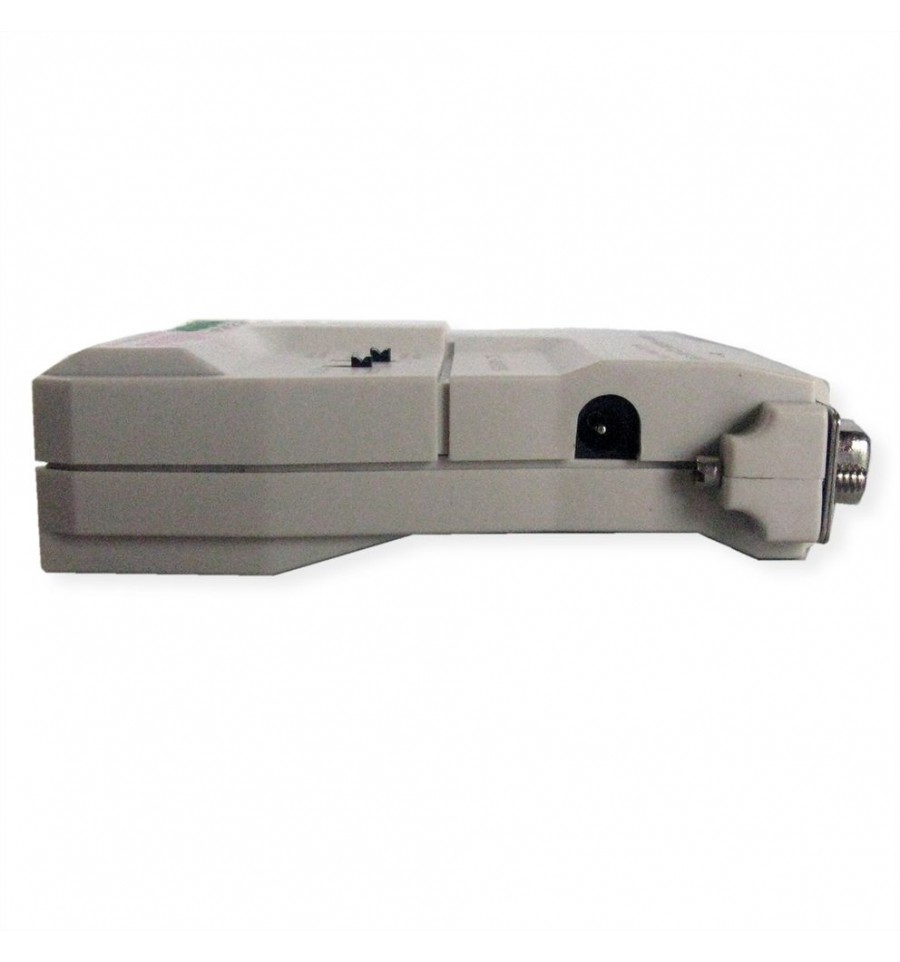

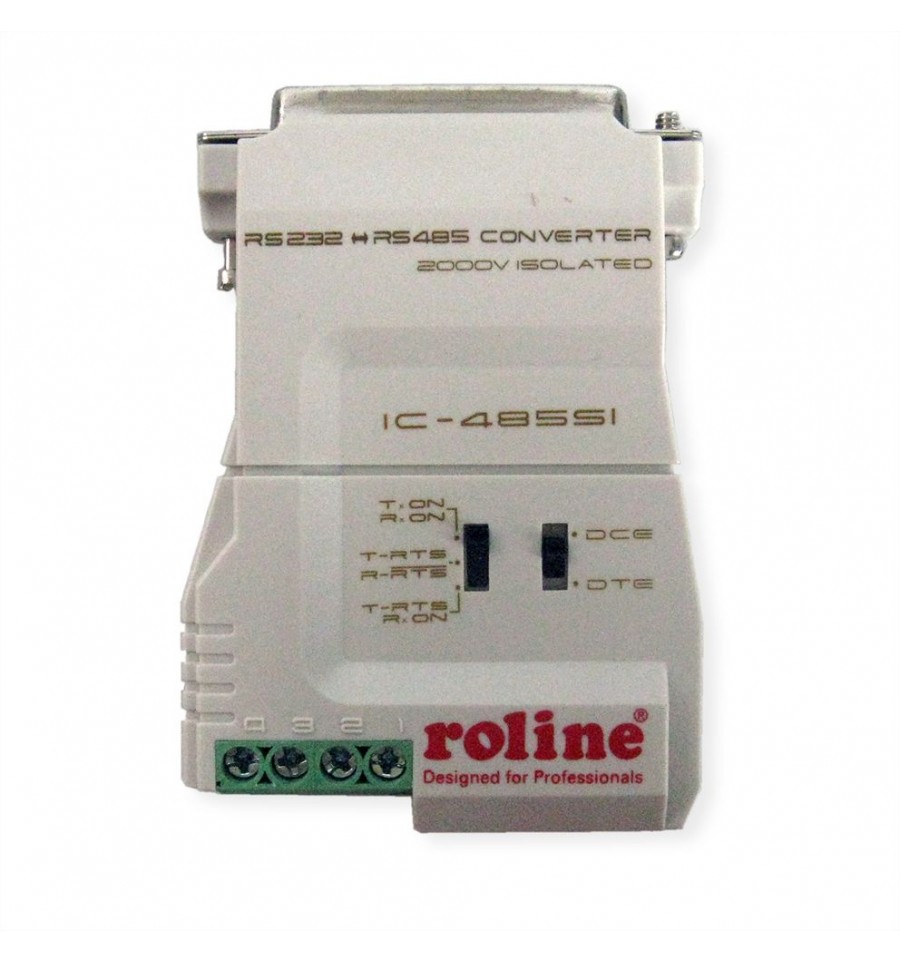

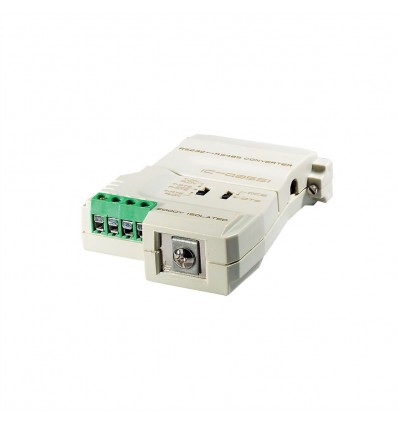

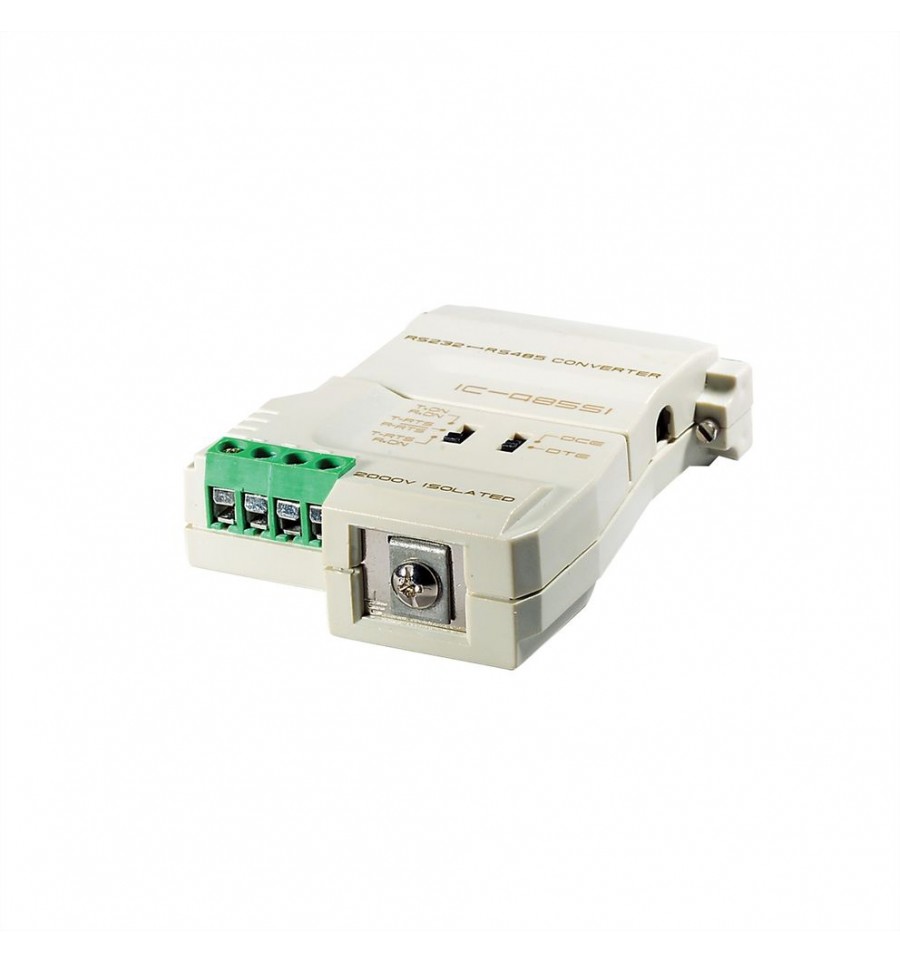

Converter RS232-RS485, with Galvanic Isolation

ROLINE

12.02.1029

Jauns

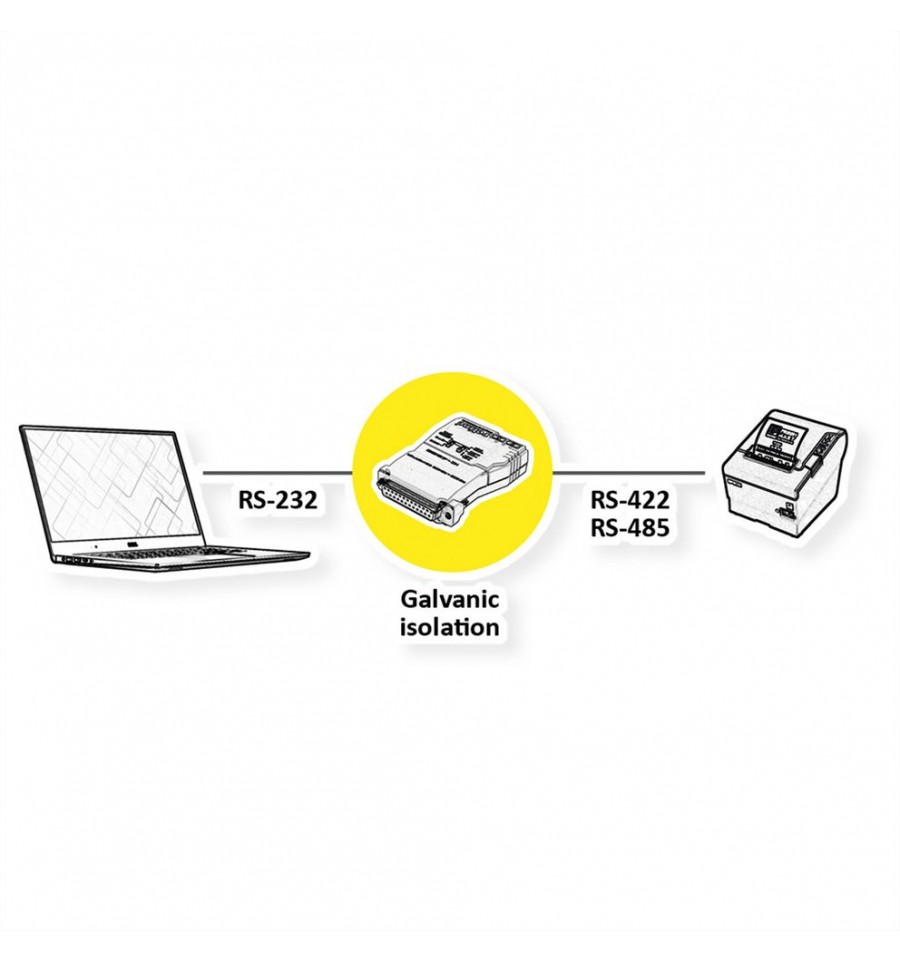

  • Point to point or multiple connection possible
  • DCE/DTE adjustable
  • Full duplex transfer over 4 lines
  • Only the data lines are converted

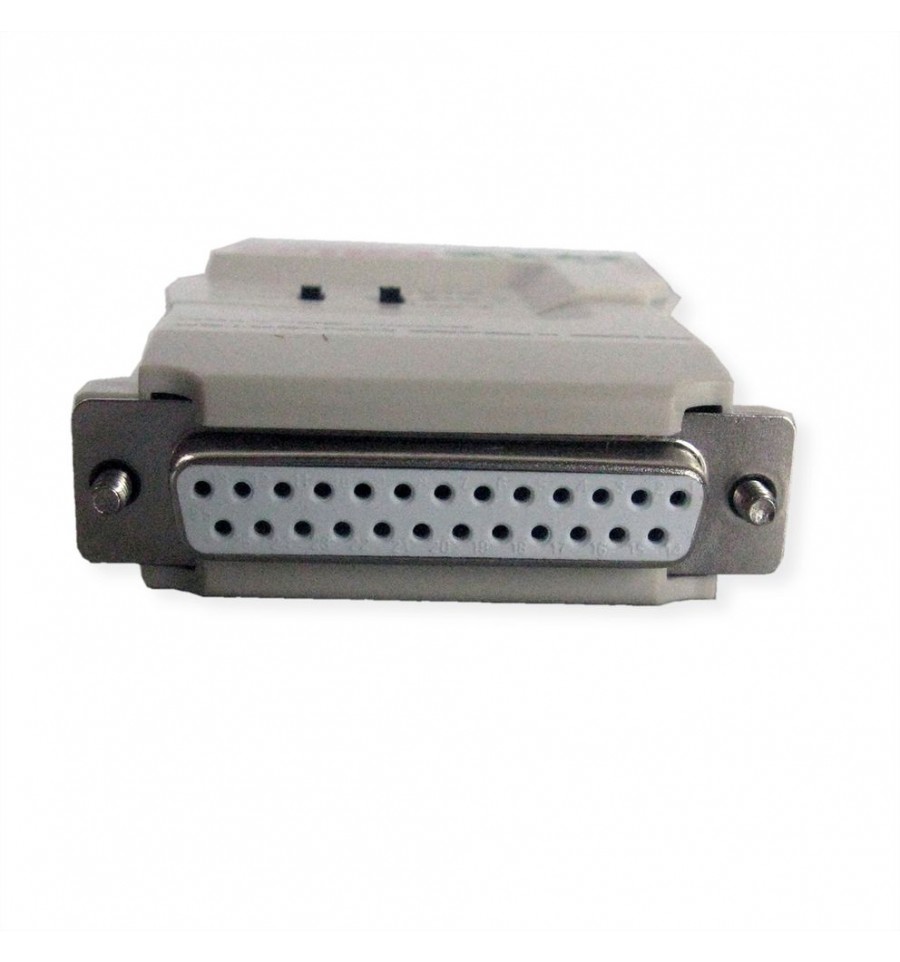

  • 25 pin socket on the RS232 side
  • Power supply via supplied mains adapter
  • Robust plastic casing

  • Contents: Converter, power cupply unit (9V DC, 300mA), manual

More details

  • Point to point or multiple connection possible
  • DCE/DTE adjustable
  • Full duplex transfer over 4 lines
  • Only the data lines are converted
  • 25 pin socket on the RS232 side
  • Power supply via supplied mains adapter
  • Robust plastic casing

  • Contents: Converter, power cupply unit (9V DC, 300mA), manual

Area of applicationExternal
Colourgrey
Content of deliveryconverter, power cupply unit (9V DC, 300mA), manual
Conversion directionRS232, RS485
Conveyance goodNo
Dimensions (HxWxD)19 x 75 x 54 mm
Left Connector GenderFemale
Left Connector TypeTerminal block
ManufacturerROLINE
Manufacturer Item No.12.02.1029
Max. bandwidthmx. 100kBps
Product groupAdapters, Terminators, Converters
Right Connector GenderFemale
Right Connector TypeD-Sub 25-pin (DB-25)
Side A connection (PC)Terminal Block 4 pin
Side B connection (Peripherals)DB25 Female
Technical particularitywith galvanic isolation

Serial/Parallel
