SFP-Modul D-Link DEM-311GT MiniGBIC 1000BaseSX (Multi-Mode) retail

D-LINK

DEM-311GT

Jauns

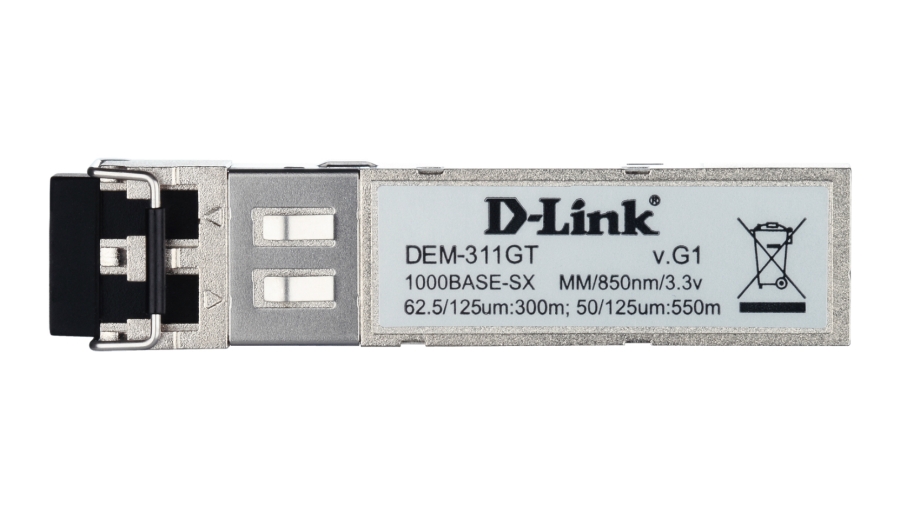

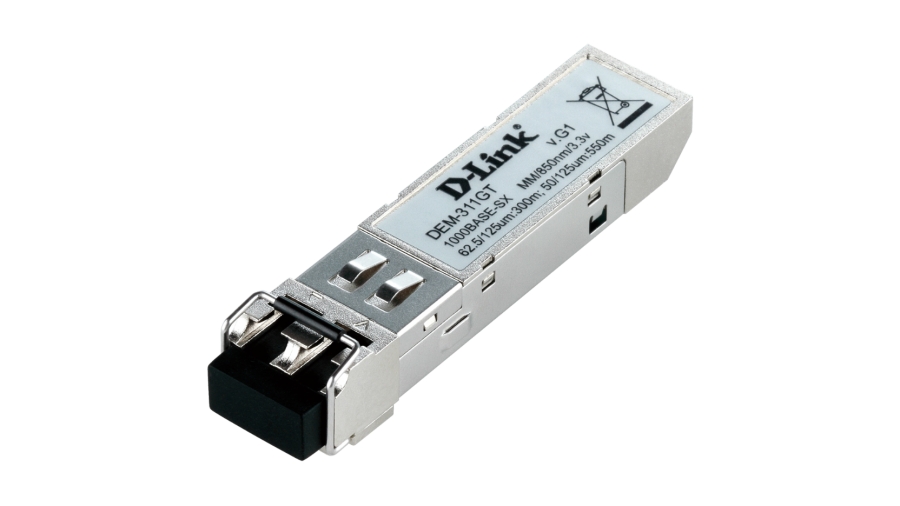

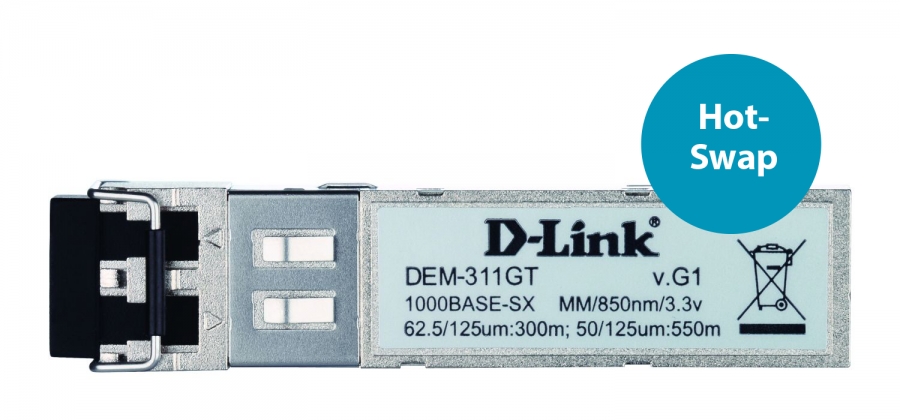

D-Link’s new line of Gigabit Interface Converters (GBICs) and Small Form-Factor Pluggables (SFPs) transceivers represent an industry leading combination of performance and affordability. D-Link’s new Gigabit transceivers are available in two form-factors: standard (GBIC) or (SFP)/mini-GBIC.The DEM-311GT is a high performance 850nm multimode SFP/mini-GBIC transceiver. Supporting full duplex, Gigabit speeds on multimode fiber for distances of up to 220m/550m on 62.5µm/50µm fiber respectively. The unit features a metal housing to reduce EMI and to increase durability. The DEM-311GT is hot pluggable and is backed by a standard 2-year product warranty and free technical support.

SFP transceiver typeFiber optic
Maximum data transfer rate1000 Mbit/s
Interface typeSFP
Single-mode fiber (SMF) supportedN
Multi-mode fiber (MMF) supportedY
Fiber optic connectorLC
Fiber cable diameters supported (core/cladding)50/125 µm
SFP transceiver standardSX
Maximum transfer distance550 m
Wavelength850 nm
Networking standardsIEEE 802.3x
Duplex systemFull
Hot-swapY
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 85 °C
Package width74 mm
Package depth131 mm
Package height49 mm
Package weight64 g
Shipping (inner) case length36 cm
Shipping (inner) case width26 cm
Shipping (inner) case height31 cm
Shipping (inner) case net weight3.2 kg
Products per shipping (inner) case50 pc(s)
Pallet gross weight (air)246.8 kg
Master (outer) cases per pallet (air)54 pc(s)
Products per pallet (air)2700 pc(s)
Pallet gross length102 cm
Pallet gross width122 cm
Pallet height (air)199 cm
Pallet gross weight (sea)246.8 kg
Master (outer) cases per pallet (sea)54 pc(s)
Products per pallet (sea)2700 pc(s)
Pallet height (sea)199 cm
Shipping (inner) case gross weight4.2 kg
Harmonized System (HS) code85369010
