> >>Level One LevelOne SFP Transceiver 1555Mb Single-mode Duplex LC 20km
Level One LevelOne SFP Transceiver 1555Mb Single-mode Duplex LC 20km

Level One LevelOne SFP Transceiver 1555Mb Single-mode Duplex LC 20km

LEVEL ONE

SFP-1311

Jauns

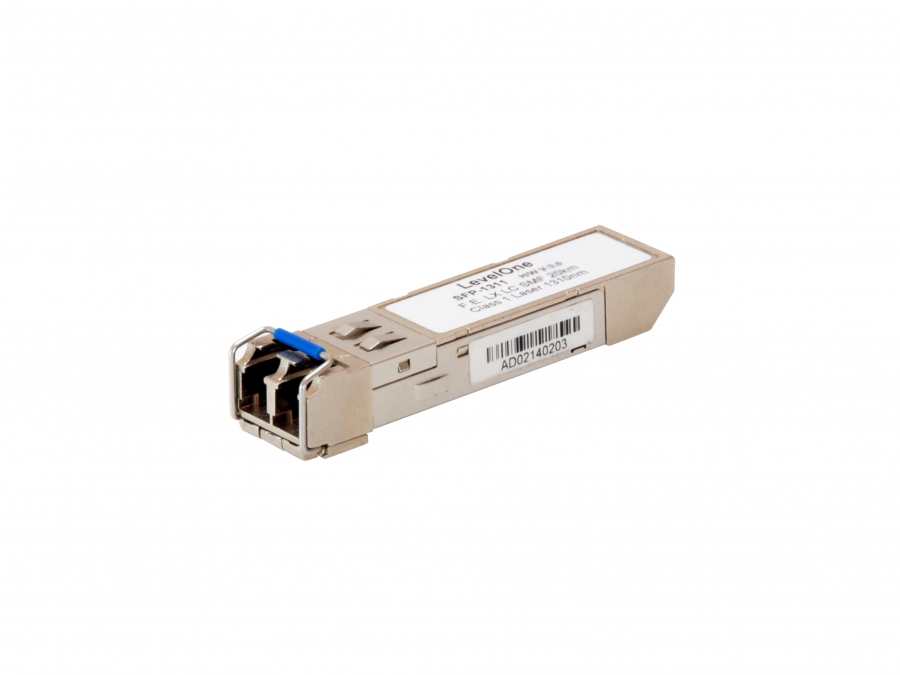

LevelOne SFP-1311 is a high performance and cost-effective single-mode SFP transceiver. Intended for use with 100BASE-FX, it provides up to 155 Mbps bi-directional data transfer rate on a single duplex fiber core. For use with 9-micron fiber cables, it can reach a distance of up to 20km. The SFP-1311 transceiver operates using a wavelength of 1310nm with a FP-Laser Diode light source and has a LC connector.- 1310nm FP LD - Data Rate: 155Mbps, NRZ - Single +3.3V Power Supply - RoHS Compliant and Lead-free - AC/AC Differential Electrical Interface - Compliant with Multi-Source Agreement (MSA) - Small Form Factor Pluggable (SFP) - Duplex LC Connector - Compliance with 100Base-FX of IEEE802.3u Standard - Compliance with FDDI PMD Standard - Compliance with ATM Standard - Eye Safety Designed to meet LASER Class 1 comply with EN60825-1

SFP transceiver typeFiber optic
Maximum data transfer rate155 Mbit/s
Interface typeSFP
Single-mode fiber (SMF) supportedY
Fiber optic connectorLC
Fiber cable diameters supported (core/cladding)9/125 µm
Maximum transfer distance20000 m
Wavelength1310 nm
Tx power (min)-15 dBmW
Tx power (max)-8 dBmW
Link budget17 dB
Networking standardsIEEE 802.3u
Duplex systemFull
Fiber ports quantity1
Hot-swapY
SafetyEN 60825-1
Country of originChina
CertificationCE, FCC
Input voltage3.3 V
Maximum voltage6 V
Maximum current0.3 A
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%
Width57 mm
Depth12 mm
Height13.7 mm
Weight20 g
Number of products included1 pc(s)
Package width106 mm
Package depth20 mm
Package height65 mm
Package weight35 g
Sustainability certificatesRoHS
Harmonized System (HS) code85369010
