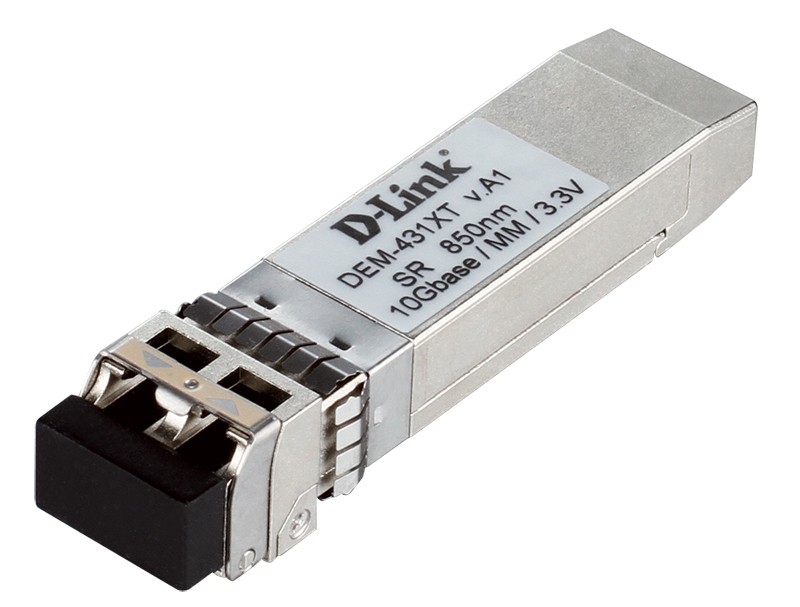

SFP-Modul D-Link DEM-431XT MiniGBIC 10GE SFP+ (Multi-Mode) retail

D-LINK

DEM-431XT

Jauns



SFP transceiver typeFiber optic
Maximum data transfer rate10000 Mbit/s
Interface typeSFP+
Multi-mode fiber (MMF) supportedY
Fiber optic connectorLC
Fiber cable diameters supported (core/cladding)50/125,62.5/125 µm
Maximum transfer distance300 m
Wavelength850 nm
Tx power (min)-6.5 dBmW
Tx power (max)-1 dBmW
Rx power (min)-11.1 dBmW
Rx power (max)-1 dBmW
Networking standardsIEEE 802.3ae
SafetyUL, TUV, CDRH
CertificationCE, FCC, VCCI, C-Tick
Maximum voltage3.3 V
Maximum current300 A
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 85%
Storage relative humidity (H-H)5 - 95%
Width14.8 mm
Depth11.8 mm
Height56.5 mm
Weight18 g
Package width74 mm
Package depth131 mm
Package height49 mm
Package weight64 g
Sustainability certificatesRoHS
Shipping (inner) case length36 cm
Shipping (inner) case width26 cm
Shipping (inner) case height31 cm
Shipping (inner) case net weight3.2 kg
Products per shipping (inner) case50 pc(s)
Pallet gross weight (air)272 kg
Master (outer) cases per pallet (air)60 pc(s)
Products per pallet (air)3000 pc(s)
Pallet gross length102 cm
Pallet gross width122 cm
Pallet height (air)199 cm
Pallet gross weight (sea)272 kg
Master (outer) cases per pallet (sea)60 pc(s)
Products per pallet (sea)3000 pc(s)
Pallet height (sea)199 cm
Shipping (inner) case gross weight4.2 kg
Harmonized System (HS) code85369010
