Level One LevelOne Switch 8x GE GES-2110 2xGSFP Hilbert

LEVEL ONE

GES-2110

Jauns

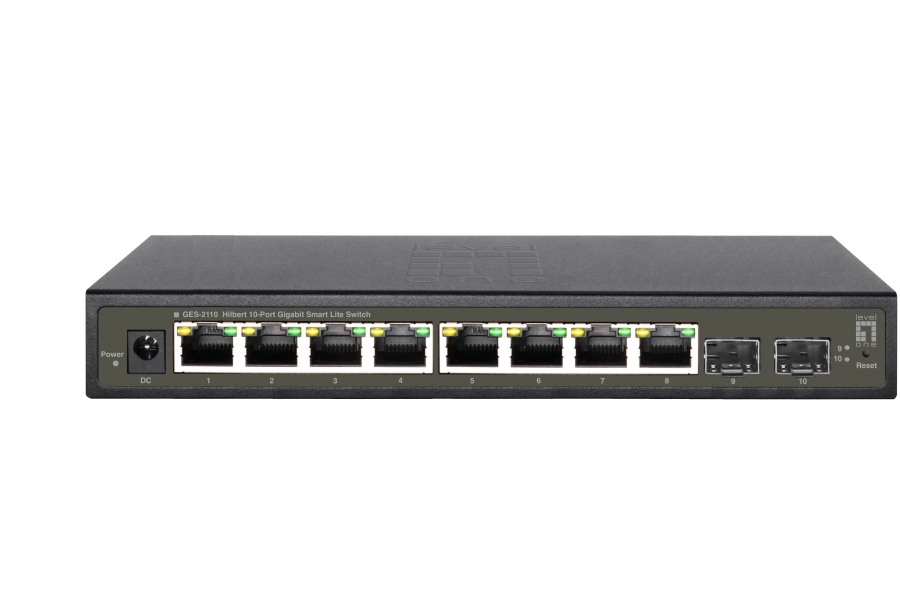

The LevelOne GES-2110 Hilbert gigabit smart lite switch is a next-generation Ethernet Switch offering powerful better functionality and usability that delivers the cost-effectively business and transports Ethernet services via fiber or copper connections. GES-2110 delivers 8 (10M/100M/1G) RJ45 ports and 2 Gigabit SFP ports. can be matched with the latest LevelOne IP Locator, the software is the easiest to use switch discovery tool, it can search all Hilbert series switches, instantly know the forgotten IP and other info. Compatible with mainstream Windows and Mac operating systems.The LevelOne GES-2110 provides high HW performance and environment flexibility for Enterprises. GES-2110 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportY
Web-based managementY
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity8
Combo SFP ports quantity2
Networking standardsIEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportN
Port mirroringY
Full duplexY
Flow control supportY
Link aggregationY
Broadcast storm controlY
Rate limitingY
MAC address auto-learning supportedY
MAC address auto-aging supportedY
VLAN supportY
Virtual LAN featuresTagged VLAN
Number of VLANs32
MAC address table8000 entries
Switching capacity20 Gbit/s
Number of queues4
Jumbo frames supportY
Jumbo frames9000
Packet buffer memory1.5 MB
IGMP snoopingY
Multicast supportY
Rack mountingN
Product colourBlack
LED indicatorsActivity, Link
Country of originChina
CertificationUKCA, FCC Class A
Flash memory2 MB
FanlessY
Mean time between failures (MTBF)43800 h
Master (outer) cases per pallet (air)16 pc(s)
Pallet gross length80 cm
Pallet gross width120 cm
Pallet height (air)174.4 cm
Power sourceDC
Power supply includedY
DC input voltage12 V
Input current1 A
Power consumption (max)10 W
Surge protectionY
Surge protection voltage8 kV
Power over Ethernet (PoE)N
Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 95%
Heat dissipation34.12 BTU/h
Width225 mm
Depth121 mm
Height35 mm
Weight700 g
Quick start guideY
AC adapter includedY
Package typeBox
Package width290 mm
Package depth172 mm
Package height93 mm
Package weight950 g
Sustainability complianceY
Sustainability certificatesCE, RoHS
Master (outer) case net weight750 g
Master (outer) case width540 mm
Master (outer) case length320 mm
Master (outer) case height400 mm
Master (outer) case gross weight12.2 kg
Products per master (outer) case12 pc(s)
