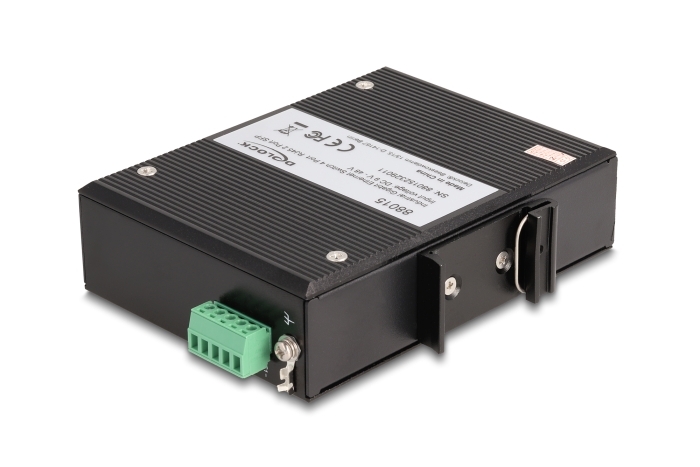

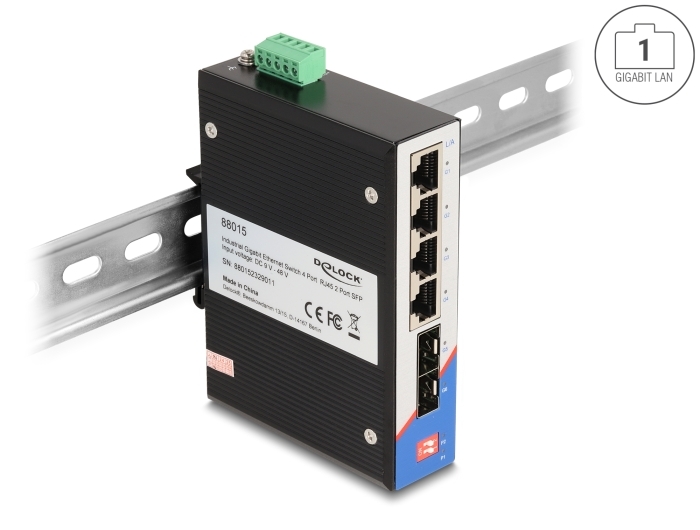

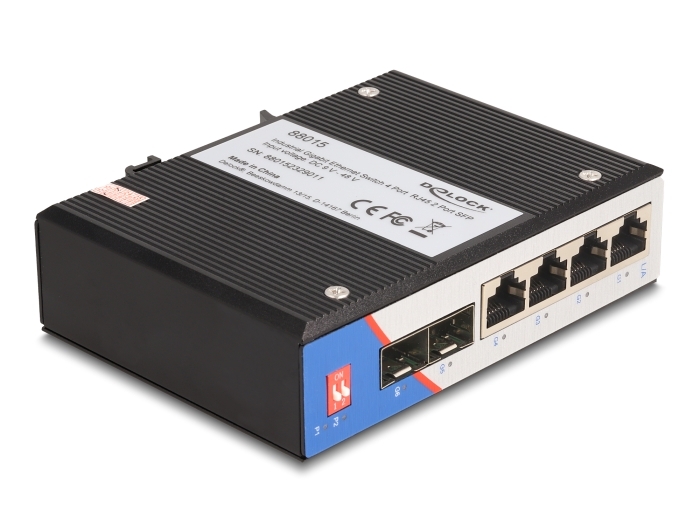

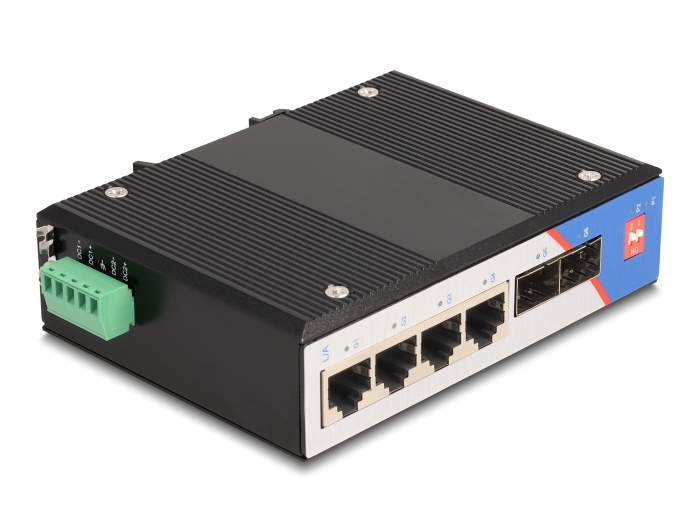

Delock Industrial Gigabit Ethernet Switch 4 Port RJ45 2 Port SFP for DIN rail

DELOCK

88015

Jauns

This robust, industry capable Gigabit Ethernet switch by Delock can be used to connect different network components.
Two SFP uplink ports with 1 Gbps offer flexible connection options.

Redundant power supply with 9 V to 48 V
The switch accepts two terminal power sources, allowing it to be permanently connected to multiple power sources, enabling applications that require high availability.
System requirements:
• Power supply with DC 9 V - 48 V (not included)
Specification:
• Connectors:
  4 x RJ45 jack for 10/100/1000 Mbps Base-T
  2 x SFP slot for 1 Gbps SFP module
  1 x 5 pin terminal power connector
• Data transfer rate up to 1 Gbps
• Supports IEEE 802.3 / 802.3u / 802.3z / 802.3ab
• VLAN port Isolation
• LEDs for status monitoring
• Redundant power supply with 9 V to 48 V
• Power consumption: max. 6 W
• Robust metal housing
• Fanless
• Suitable for 35 mm DIN rail
• Protection class: IP40
• Operating temperature: -40 °C ~ 85 °C
• Dimensions (LxWxH): ca. 116 x 85 x 33 mm
Package content:
• Switch
• User manual
Data sheet:
http://www.delock.de/produkt/88015/pdf.html?sprache=en
