Jauns $Digitus 24 Port 10/100/1000 + 4SFP+ UPLINK Switch, 19\", L2+ Features$

Digitus 24 Port 10/100/1000 + 4SFP+ UPLINK Switch, 19\", L2+ Features

Kods DN-80223

Condition: Jauns

Vairāk informācijas

24 Port GE 4 SFP+ UPLINK L2+ Switch 24 Port 10/100/1000+4SFP+ UPLINK Switch

24 Port 10/100/1000 + 4 10 G SFP+ UPLINK Switch, 19", L2+ Features

Support RJ45 Auto-MDI/MDIX
Panel light monitors working status and assists in fault analysis
Supports full-duplex ieee 802.3x flow control and Backpressure half-duplex flow control
Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az)
High reliability design, supporting traditional STP/RST layer 2+ link protection technology; Supports manual aggregation and dynamic aggregation, which increases link bandwidth, improves link reliability, and implements load balancing and link backup
Management and maintenance Supports Console, Telnet, and SSH management modes
The system supports WEB management, which facilitates installation and debugging for engineers and maintenance personnel
Virtual Gateway Supports file upload and download management through TFTP

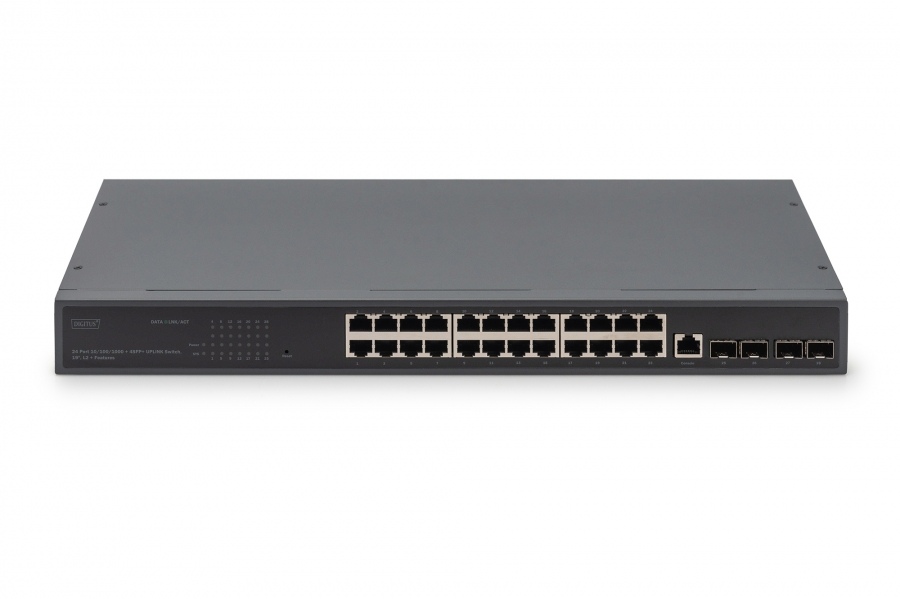

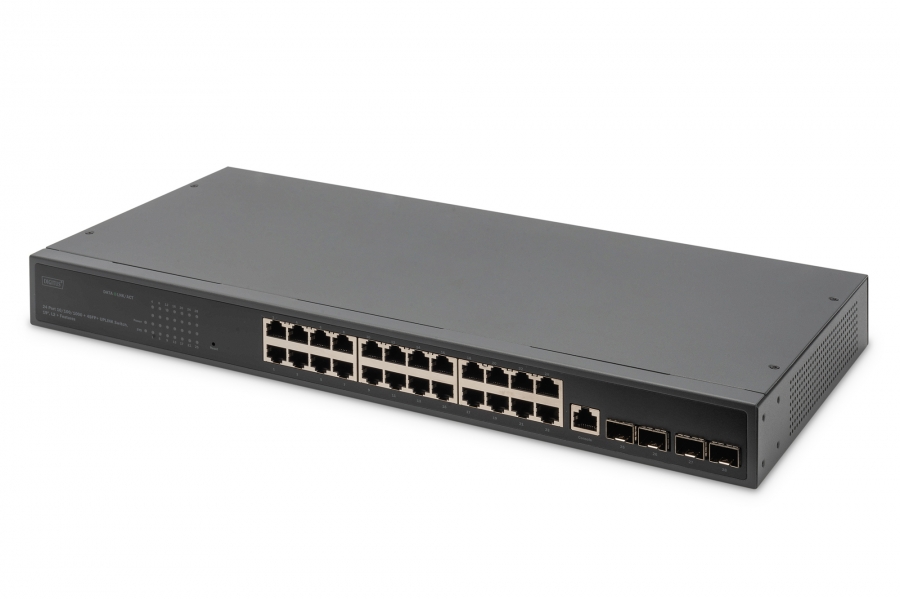

Digitus DN-80223, with its 24 Gigabit RJ45 port and four independent SFP + fiber expansion slot, is ideal for connecting local networks to data centers.
Equipped with 4 * 10G SFP+ slot, flexibly expand your network. The 10G uplink switch provides high performance, enterprise QoS, advanced security policies and comprehensive layer 2+ management features.
With all these advanced features, the switch is powerful and flexible enough to meet almost all IT needs.

Industrial usage: false
Installation type: 19 inch
Managed: true
Outdoorsuitable: false
PoE (Power over Ethernet): false
Protection against vanadlism: false
VLAN: true
Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1X, IEEE 802.1q, IEEE 802.1p, IEEE 802.1d, IEEE 802.1w,IEEE 802.3ad
Interface: 24*10/100/1000Mbps RJ45 Port, 4* 10G SFP+ Slots, 1*Console
Indicator: PWR, LINK/ACT, SYS
Network media: 10BASE-T: UTP category 3,4,5 cable(<=100m), 100BASE-TX: UTP category 5, 5e cable(<=100m),1000BASE-T: UTP category 5e, 5 cable(<=100m) 1000BASE-X: MMF, SMF, 10GBASE-X: MMF, SMF
MAC Address Table: 16K, Auto-learning, Auto-aging
jumbo frame: 12K Bytes
Transfer Mode: Store-and-forward
Packet Forward Speed: 95.23Mpps
Switching Capacity:128Gbps
Packet buffer: 12Mbit
Dimensions(L*W*H): 440*260*44mm
Fan Quantity: Fanless
Green energy saving: IEEE 802.3az
Power supply: 24W
Input Power Supply: 12V/2A
Operating Temperature: 0°C ~ 40 °C
Storage Temperature:-40 °C ~ 70 °C
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
System Settings: Basic information, system status, user management,SNTP configuration, importing/exporting configuration files, firmware upgrade
Port Settings: Basic configuration, port statistics, Broadcast Storm, Port Rate limiting, Port security, link aggregation, port Mirroring, and port Isolation, Port aggregation,Load balancing, static aggregation, LACP
MAC binding: MAC static binding, dynamic learning, MAC binding automatic conversion, MAC aging and learning restriction, and MAC filtering
VLAN configuration: VLAN information, VLAN configuration, VLAN port configuration, Voice VLAN, QinQ, Guest-VLAN, GVRP, MVR
ARP: IP Source Guard, ARP Check, gratuitous-ARP, ARP defense, DAI, tri-binding
DHCP: IPV4/IPV6 DHCP Snooping, DHCP Server, DHCP Relay
STP: STP/MSTP/RSTP, PortFast,Root Guard, Bpdu Guard
SNMP configuration: SNMP community, SNMP view, SNMP TRAP, SNMP(V1,V2C,V3)
RMON configuration: RMON(1,2,3,9)
ACL configuration: Standard ACLs, ipv6-based ACLs, extended ACLs, Mac-based ACLs, expert ACLs, and time-range ACLs
QOS configuration: QOS Application, QOS Scheduling Strategy, Queue Mapping (DSCP&CoS)
IGMP Snooping configuration: IGMP SNOOPING configuration, multicast group information, IGMP SNOOPING VLAN, IGMP SNOOPING (V1,V2,V3))
ERPS: ERPS configuration, ERPS mode, ERPS role
LLDP: LLDP TLV configuration to view neighbor information
Error-Disable: Error-Disable, Loopback-detection
Web tools: Ping/Ping6, Traceroute/Traceroute 6, cable detection
Log management: Log management and Debug information

Package content:
24 Port RJ45, 4 10G SFP+ Uplink Switch
Power Cord
Manual
