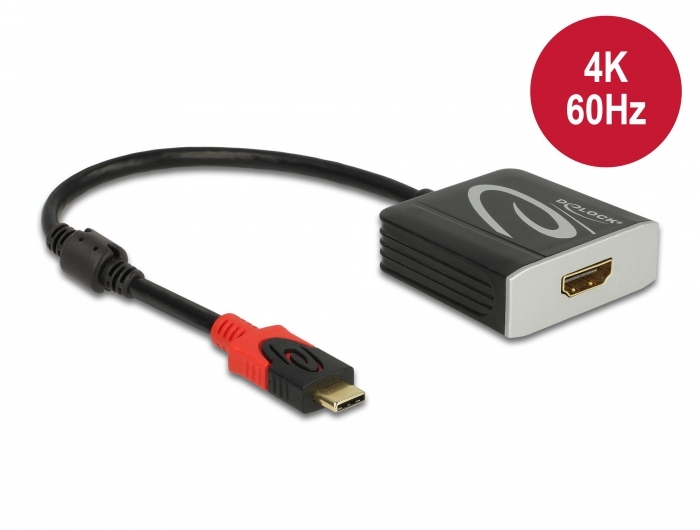

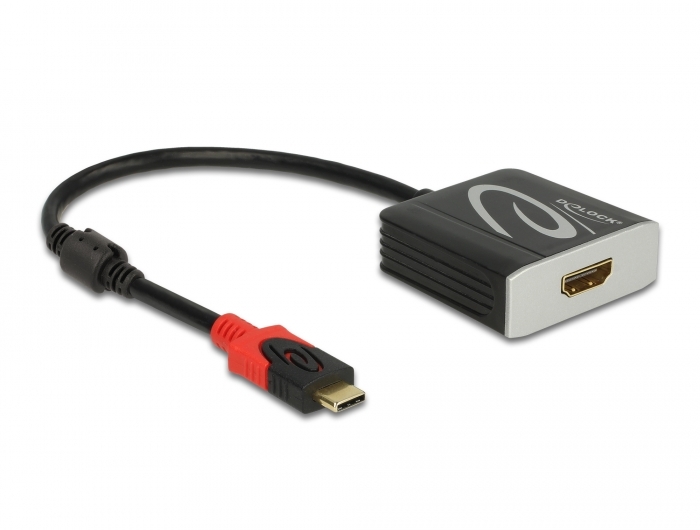

Delock Active USB Type-C™ to HDMI Adapter 4K 60 Hz (HDR)

Kods 65400

Condition: Jauns

Vairāk informācijas

This adapter by Delock is suitable for the connection of a HDMI monitor to a computer with USB-C™ interface and DisplayPort alternate mode support. The adapter supports a resolution up to 4K Ultra HD at 60 Hz and is backward compatible to Full-HD 1080p.

Active adapter
The adapter offers an active conversion, thus it is also suitable for graphics cards that are not capable of outputting DP++ signals.

System requirements:
• Device with a free USB Type-C™ port and DisplayPort alternate mode or with a free
Thunderbolt™ 3 port

Specification:
• Connectors:
  1 x USB Type-C™ male >
  1 x HDMI-A female
• Chipset: Parade PS186, Fresco Logic FL7102
• DisplayPort 1.4 and High Speed HDMI specification
• Active converter, for graphics cards with DP and DP++ output
• Signal direction: USB Type-C™ input > HDMI output
• Cable gauge:
  32 AWG data line
  24 AWG power line
• Cable diameter: ca. 5 mm
• Connectors: gold-plated
• Transmission of audio and video signals
• Data transfer rate up to 18 Gbps
• Resolution up to 3840 x 2160 @ 60 Hz
  (depending on the system and the connected hardware)
• Supports HDR
• Supports HDCP 1.4 and 2.3
• 1 x ferrite core
• Cable length without connectors: ca. 20 cm
• Colour: black

Package content:
• USB-C™ to HDMI adapter

Data sheet:
http://www.delock.de/produkt/65400/pdf.html?sprache=en
