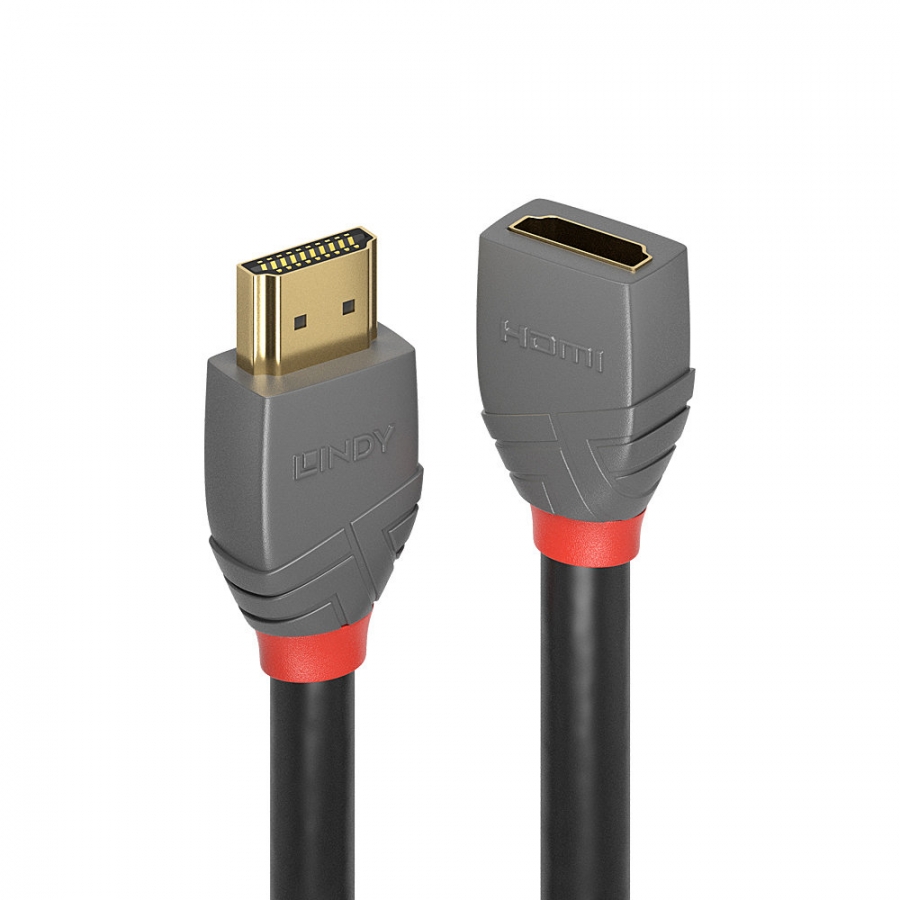

Lindy 1m High Speed HDMI Extension, Anthra Line

Lindy

LIN36476

Jauns

Connectors:

  • Connector A: HDMI Type A Male
  • Connector B: HDMI Type A Female
  • Housing Material: PVC
  • Connector Plating: Gold
  • Pin Construction: Copper Alloy
  • Pin Plating: Gold
  • Dimensions (approx.) WxDxH: M: 19.5x35.0x11.0mm (0.75x1.38x0.43in)
  • F: 20.5x35.0x11.0 (0.81x1.38x0.43in)



Cable construction:

  • Length: 1m (3.281ft)
  • Standard: HDMI 2.0
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 7.0mm (0.28n)
  • Jacket Material: PVC
  • Conductor Material: Bare Copper
  • Conductor Gauge: 28AWG
  • Shielding: Aluminium Magnesium Alloy 85%



Specifications:

  • Supported Bandwidth: 18Gbps
  • Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit
  • Nominal Attenuation: 1.35GHz > -5.5dB (HBR1)
  • 2.7GHz > -8.5dB (HBR2)
  • 4.05GHz > -11.0dB (HBR3)"
  • Minimum Bend Radius: 70mm (2.76in)
  • Operating Temperature: -10°C - 80°C (14°F - 176°F)
  • Storage Temperature: -20°C - 85°C (-4°F - 185°F)



Miscellaneous:

  • Packaging Type: Polybag
  • Warranty (Years): 10
  • Certificated: RoHS, REACH, CP65, UL



Purchasing information:

  • No.: 36476
  • EAN: 4002888364768



This product is also available in other lengths:

  • 36475 - 0.5m (1.64ft)
  • 36476 - 1m (3.281ft))
  • 36477 - 2m (6.561ft)
  • 36478 - 3m (9.841ft)
