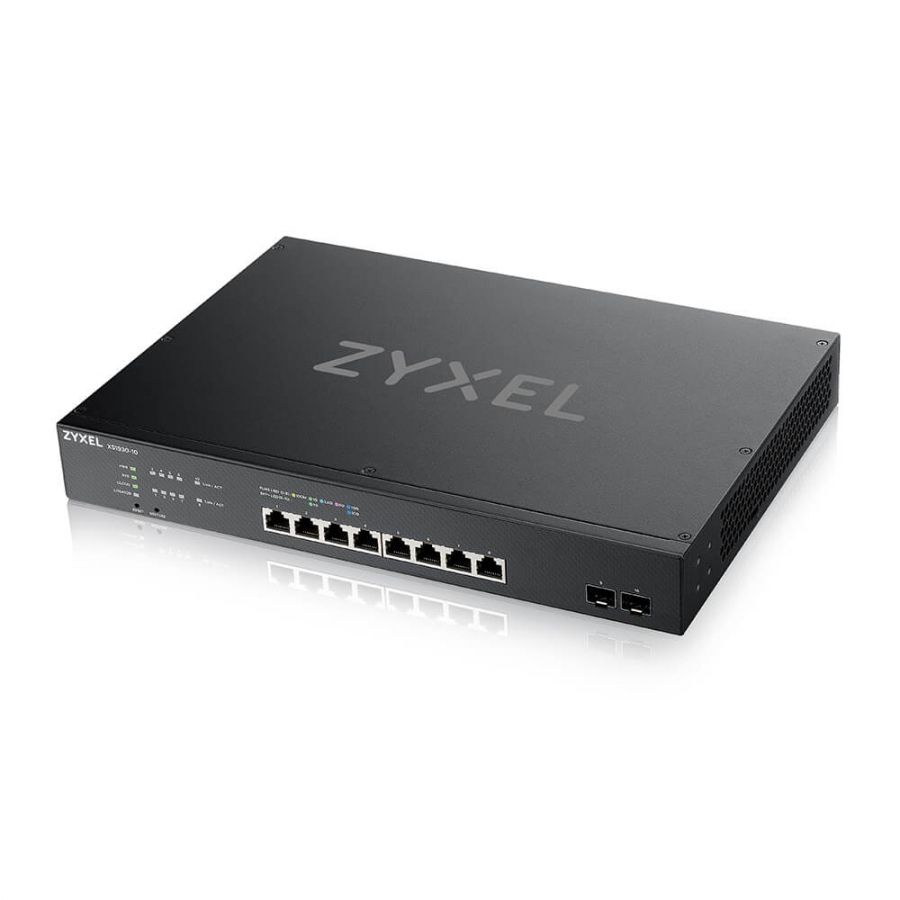

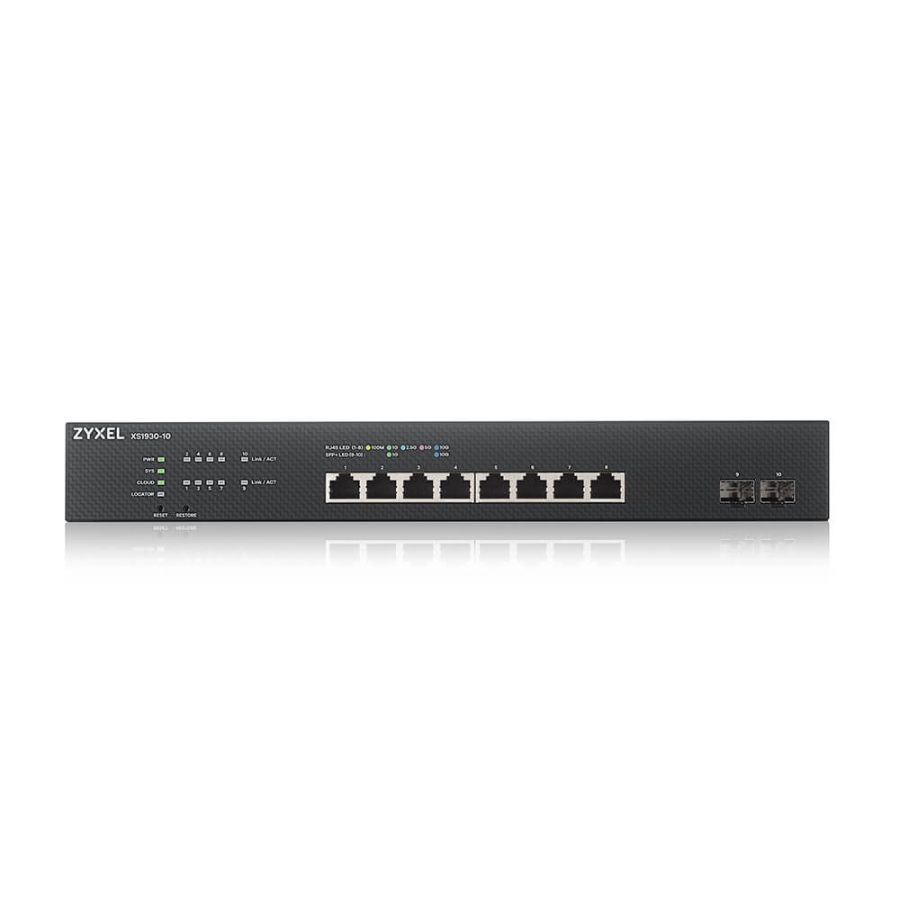

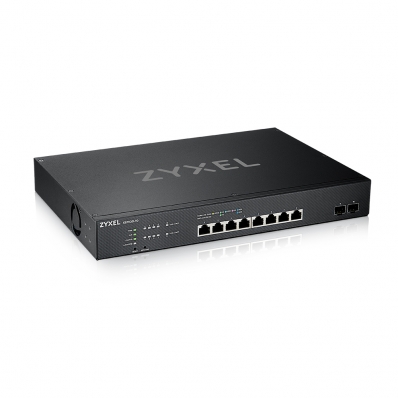

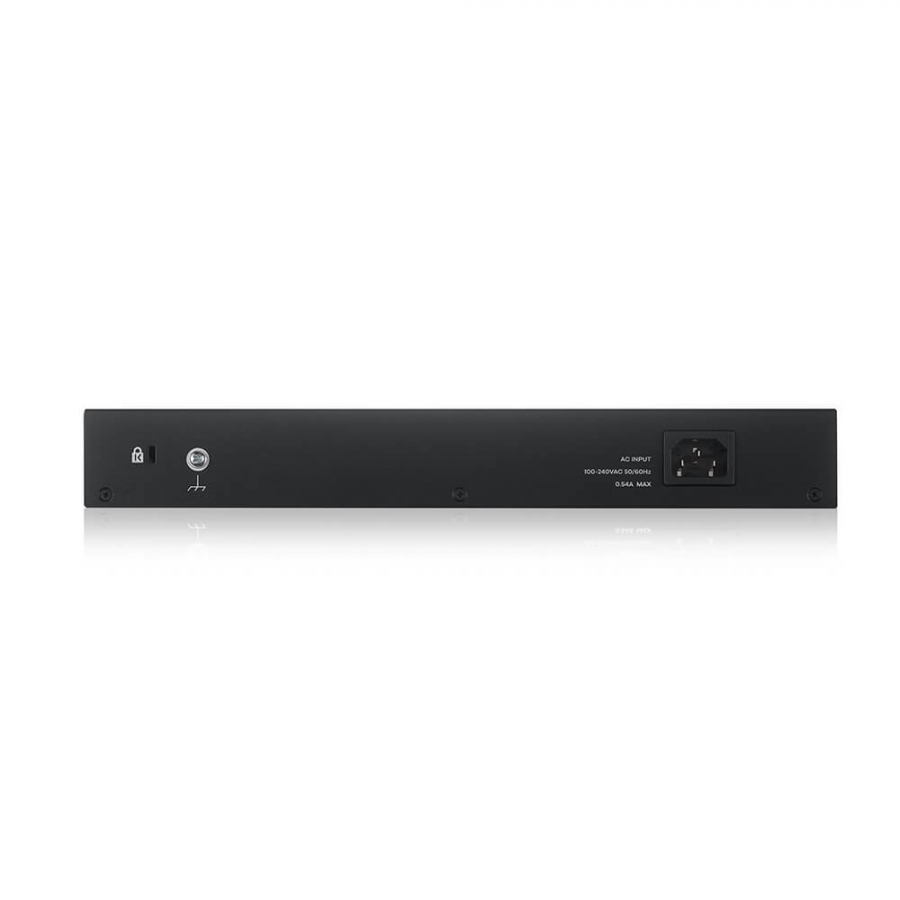

Zyxel Switch 10x GE XS1930-10 10-Port Multi GB Managed

ZYXEL

XS1930-10-ZZ0101F

Jauns

Light Up the Speed Zyxel’s XS1930 Series Multi-Gigabit Smart Managed SwitchBreakthrough 1 Gbps The new XS1930 Series switch supports IEEE 802.3bz standard for delivering Multi-Gigabit technology on existing wiring infrastructure which offering up to 10 times more bandwidth capacity without expensive and disruptive cable upgrades. In addition, it is designed with industry-first 5-color LED to instantly display the operating port speed. New era of connectivity Each of the Multi-Gigabit ports on XS1930 Series Switch support speed 100M/1G/2.5G/5G/10G that are suitable for every network device. For 2.5G/5G capable devices such as WiFi 6 (11ax) AP, servers and workstations now are able to operate at the maximum speed without forcing the connection downgrades to 1G.True backbone of WiFi 6 WiFi 6 needs higher speed LAN (>1Gbps) and power (PoE++). The PoE model XS1930-12HP supports the latest PoE standard IEEE 802.3bt (PoE++) providing port power up to 60W for WiFi6 AP, as well as backwarding compatibility with existing PoE/PoE+ devices. With a large power budget of up to 375W, XS1930-12HP gives enough headroom for connections up to 8 WiFi 6 (11ax) APs.Experience The Near Silent Operation The built-in smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the XS1930 series is operating. It is ideal for your office environment.Manage it your way! The XS1930 Series introduces Zyxel NebulaFlex, which allows you to easily switch between standalone mode and our license-free Nebula cloud management platform anytime with just a few simple clicks.Smart managed switch inside and out The XS1930 Series aims to widen user experience with its unique One-touch ‘Restore’ button as well as fully-loaded SMB features such as VLAN, enhanced QoS, and LAG along with IPv4/IPv6 Layer 3 static route, can all be configured via its local user-friendly web interface efficiently.Designed for the long haul Quality hardware design is how Zyxel differentiate ourselves from others. We ensure stability and longevity for XS1930 Series for your networks.

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportY
Web-based managementY
Cloud-managedY
Configuring Location Settings (CLI)Y
MIB supportY
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
SFP+ module slots quantity2
Networking standardsIEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3x
10G supportY
Port mirroringY
Ethernet LAN data rates100,1000,2500,5000,10000 Mbit/s
VLAN supportY
MAC address table16000 entries
Switching capacity200 Gbit/s
Multicast supportY
Rack mountingY
Product colourBlack
LED indicatorsY
Power supply includedY
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)44.2 W
Power over Ethernet (PoE)N
Operating temperature (T-T)-20 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Heat dissipation151.06 BTU/h
Width330 mm
Depth230 mm
Height44 mm
Weight2.4 kg
Harmonized System (HS) code85176990
