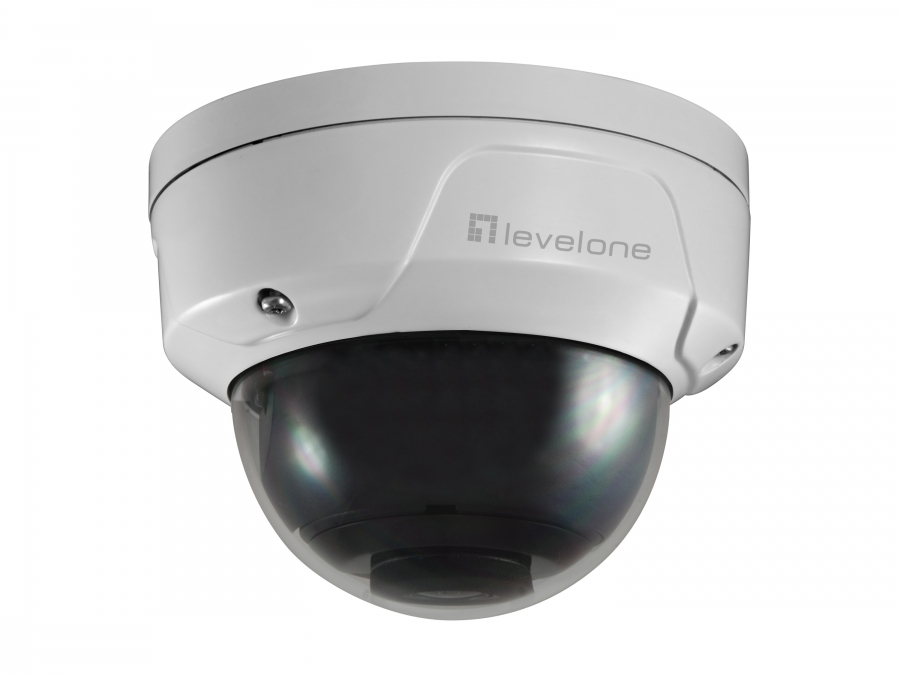

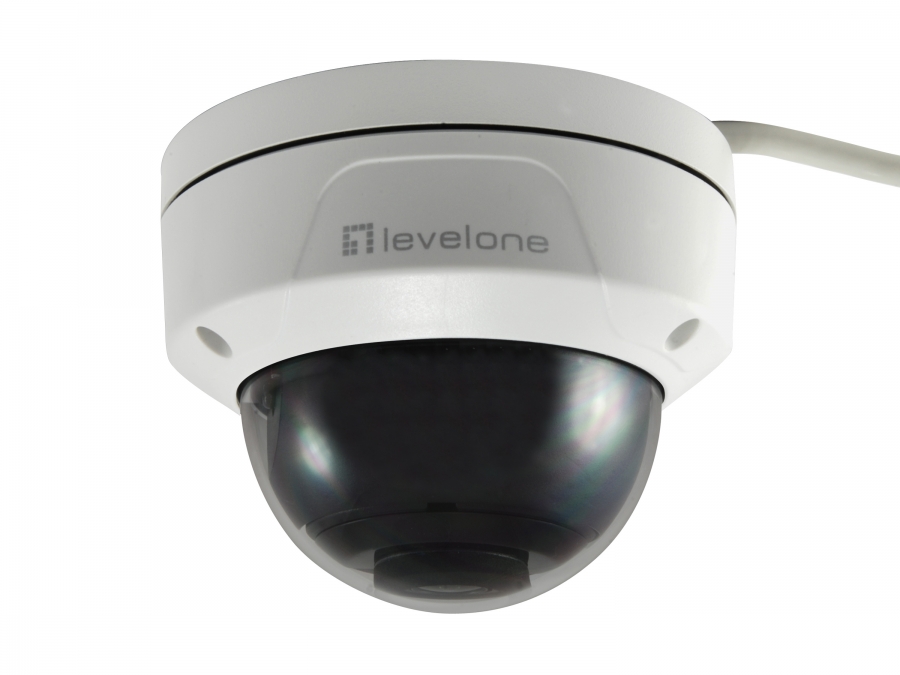

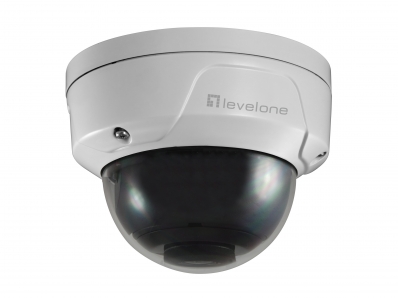

The LevelOne FCS-3090 Fixed Dome Outdoor Camera offers a highly reliable, cost-effective outdoor IP surveillance solution in a low-profile dome mounted casing, which is rated at IP67 and able to withstand outdoor operating conditions such as rain, snow, extreme heat, dust and humidity. The FCS-3090 offers 5-Megapixel resolution, and with 802.3af standard PoE, can use a single Cat.5 cable to run both power and data, making deployments easy and flexible. The dome mounting prevents malicious tampering with the camera, making it a secure and smart choice for all outdoor installations.
|
| Type | IP security camera | | Placement supported | Indoor & outdoor | | Connectivity technology | Wired | | Wide Dynamic Range (WDR) | Y | | Certification | CF, FCC | | Mounting type | Ceiling | | Product colour | White | | Form factor | Dome | | International Protection (IP) code | IP67 | | IK code | IK10 | | Country of origin | China | | Field of view (FOV) angle | 63.5° | | Camera shutter speed | 1/3 ~ 1/10000 s | | Sensor type | CMOS | | Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") | | Progressive scan | Y | | Number of lenses | 1 | | Focus adjustment | 2.0 | | Night vision | Y | | Night vision distance | 30 m | | LED type | IR | | Maximum resolution | 2560 x 1656 pixels | | Total megapixels | 5 MP | | Video formats supported | AVI | | Video compression formats | H.264, H.265 | | Supported graphics resolutions | 2560 x 1656, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1440 | | Frame rate | 30 fps | | Image quality adjustment | Brightness, Contrast, Saturation, Sharpness | | Privacy masking | Y | | Voice codecs | G.711, G.722.1, G.726 | | Ethernet LAN | Y | | Wi-Fi | N | | Bluetooth | N | | Ethernet interface type | Fast Ethernet | | Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 | | Cabling technology | 10/100Base-T(X) | | Number of users | 16 user(s) | | Card reader integrated | Y | | Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC | | Maximum memory card size | 128 GB | | Ethernet LAN (RJ-45) ports | 1 | | Terminal block port | Y | | IP address filtering | Y | | Intelligent Video Surveillance (IVS) system features | Face detection, Intrusion, Missing object | | Reset button | Y | | Power source type | PoE | | Power consumption (typical) | 5.5 W | | Power consumption (Power over Ethernet (PoE)) | 7.5 W | | Power over Ethernet (PoE) | Y | | Operating temperature (T-T) | -30 - 60 °C | | Operating relative humidity (H-H) | 0 - 95% | | Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 | | Height | 82 mm | | Diameter | 11.1 cm | | Weight | 500 g | | Package width | 134 mm | | Package depth | 134 mm | | Package height | 108 mm | | Package weight | 500 g | | Package type | Box | | Number of cameras | 1 | | Resource CD | Y | | Removable IR-cut filter | Y | | Harmonized System (HS) code | 85258900 | | Master (outer) case width | 345 mm | | Master (outer) case length | 288 mm | | Master (outer) case height | 568 mm | | Products per master (outer) case | 24 pc(s) |
|
