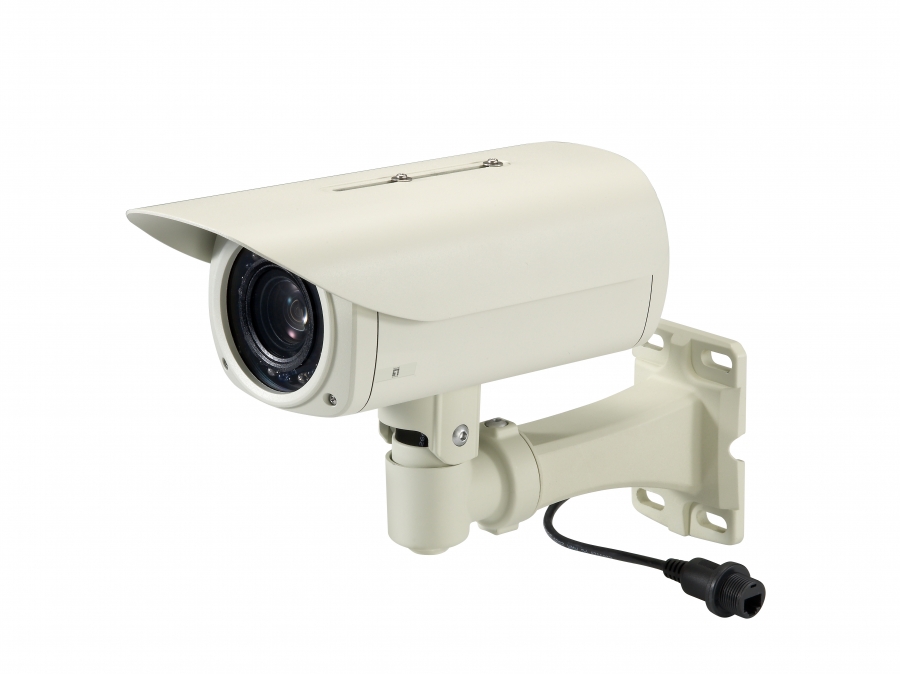

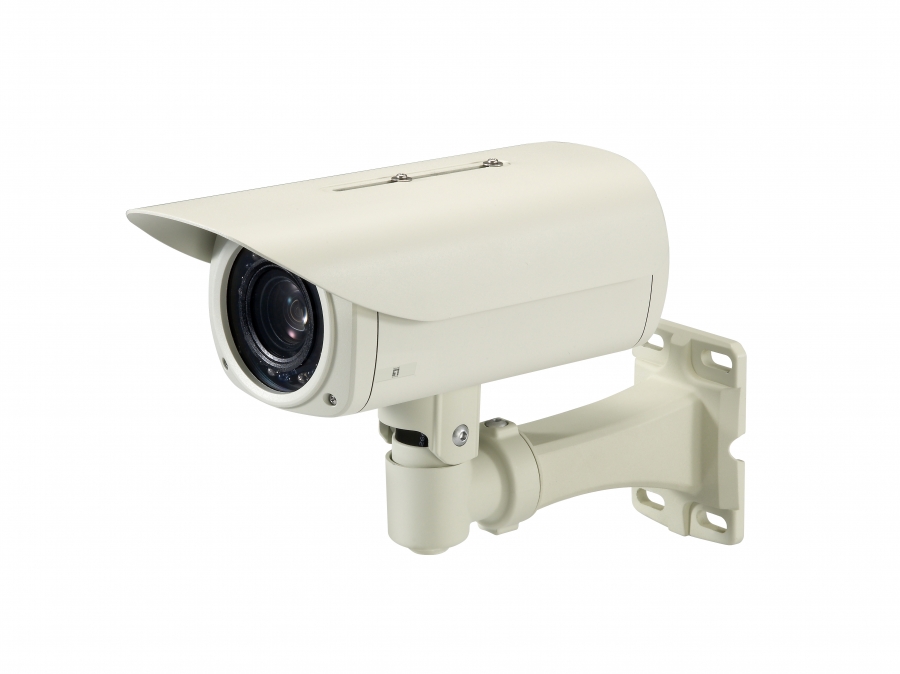

Level One LevelOne IPCam FCS-5065 Z12x Fix Out 5MP H.264 IR 12W PoE

LEVEL ONE

FCS-5065

Jauns



TypeIP security camera
Placement supportedOutdoor
Connectivity technologyWired
PTZ controlY
Wide Dynamic Range (WDR)Y
Day/night modeY
Infrared (IR) cut-off filterY
CertificationCE, FCC, ONVIF, IP67, IK10, NEMA 4X
Mounting typeWall
Product colourWhite
Form factorBullet
LED indicatorsPower
Protection featuresVandal proof
International Protection (IP) codeIP67
IK codeIK10
WeatherproofY
Country of originTaiwan
Minimum illumination0.1 lx
White balanceAuto
Camera shutter typeElectronic
Camera shutter speed1/5 - 1/10000 s
Sensor typeCMOS
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanY
Number of lenses1
Zoom capabilityY
Optical zoom12x
Auto focusY
Focal length range4.9 - 49 mm
Focus adjustment1.8 - 3.0
Night visionY
Night vision distance43 m
LED typeIR
Number of illumination LEDs27
Maximum resolution2592 x 1944 pixels
Total megapixels5 MP
Video formats supportedRAW
Video compression formatsH.264, M-JPEG
Supported graphics resolutions320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2592 x 1944
Supported video modes240p, 480p, 720p, 1080p
Frame rate30 fps
Video streamingY
Noise reductionY
Automatic gain controlY
Full HDY
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
Back Light Compensation (BLC)Y
Audio system2-way
Audio formats supportedG.711
Built-in microphoneY
Voice codecsG.711
Ethernet LANY
Wi-FiN
BluetoothN
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3, IEEE 802.3af, IEEE 802.3u
Supported network protocolsTCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
Built-in HDDN
Card reader integratedY
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size64 GB
Ethernet LAN (RJ-45) ports1
Microphone inY
Headphone outputs1
Terminal block portY
DC-in jackY
InterfaceRJ-45
Reset buttonY
Power source typePoE
Power consumption (typical)12 W
DC output voltage12
Power over Ethernet (PoE)Y
Operating temperature (T-T)-30 - 50 °C
Operating relative humidity (H-H)10 - 85%
Windows operating systems supportedWindows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Width122 mm
Depth240 mm
Height101 mm
Weight2.39 kg
Package width370 mm
Package depth272 mm
Package height183 mm
Package weight768 g
Package typeBox
Number of cameras1
Screws includedY
Quick installation guideY
Resource CDY
IrisY
Sustainability certificatesRoHS
Harmonized System (HS) code85258900
Master (outer) case width560 mm
Master (outer) case length380 mm
Master (outer) case height395 mm
Master (outer) case gross weight13.9 kg
Products per master (outer) case4 pc(s)
Back light compensation methodY
Number of video streams2
