Level One LevelOne CCTV 8-Kanal Fix Out H.264 IR 4xCam inkl.

LEVEL ONE

DSK-8001

Jauns

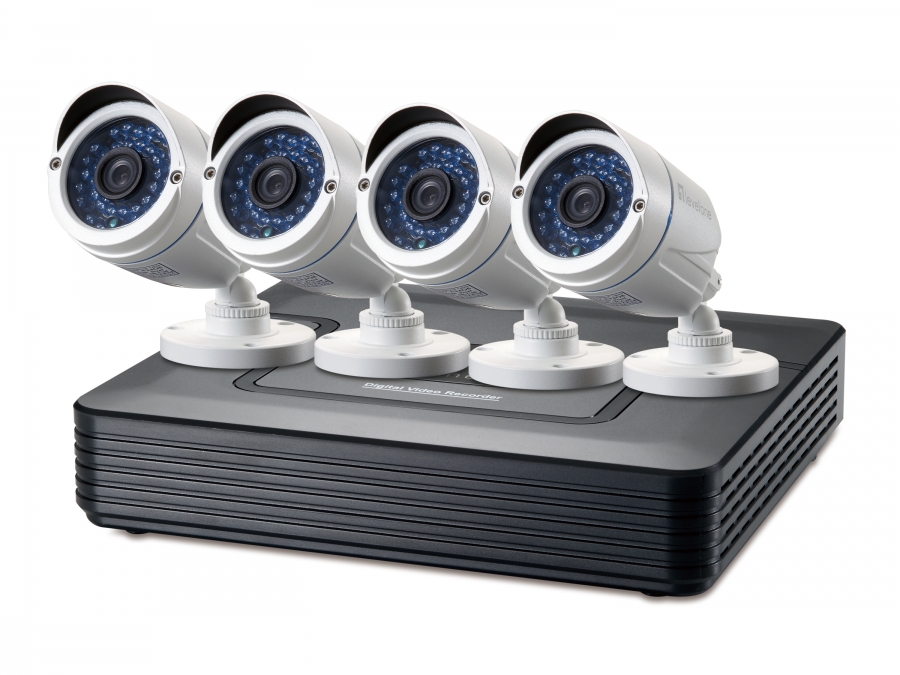

The LevelOne 8-Channel CCTV Surveillance Kit offers an ideal way to monitor a large house or building premises, for situations requiring professional-level surveillance. With superior quality, high-definition cameras stationed on all sides of the building, all access points can be securely watched at all times of the day and night. Sophisticated software allows easy monitoring of all eight cameras from any PC, laptop, tablet or smartphone. Cameras all conform to Weatherproof standard IP66, and operate in temperatures from -10 C to 55 C. Built-in infrared LEDs support night monitoring for distances up to 30 metres, providing crystal-clear images at any time, under any conditions. The quality cameras also offer full-screen, high resolution recording and playback. Everything you need for safe, secure surveillance of your home or business, providing the utmost in peace-of-mind.

Connectivity technologyWired
Camera includedY

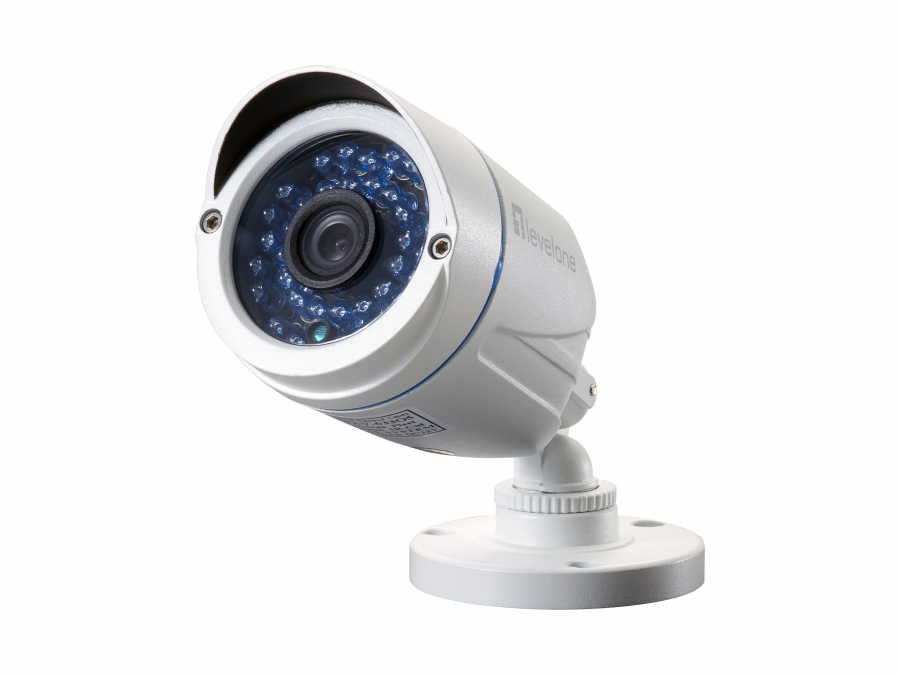

Surveillance camera form factorBullet
Built-in microphoneN
Camera interfaceBNC
Heat functionN
Placement supportedIndoor/outdoor
RotatingN
Camera cable length18 m
Number of cameras4
Night modeY
Night vision distance30 m
Sensor typeCMOS
Optical sensor size25.4 / 4 mm (1 / 4")
LED typeIR
Viewing angle65°
Camera shutter speed1/50 - 1/100000 s
International Protection (IP) codeIP66

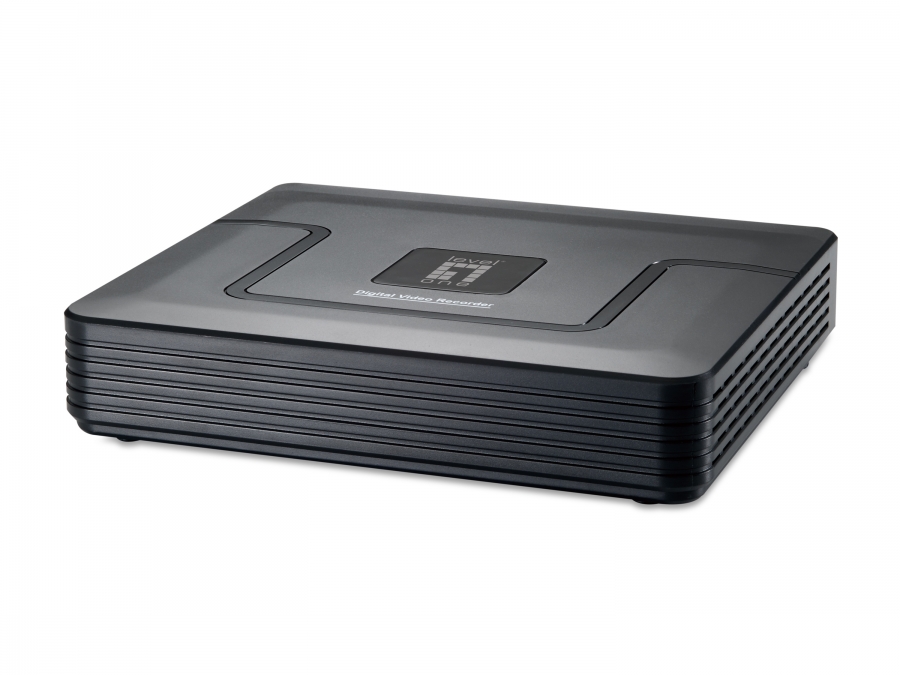

Recorder includedY
Channels quantity8 channels
Storage media typeHDD
Card reader integratedN
Operating system installedLinux Embedded
Optical drive includedN
BNC input ports8
VGA (D-Sub) ports quantity1
USB 2.0 ports quantity2
HDD size3.5"
Number of HDDs supported1
HDD capacity6000 GB
Supported network protocolsTCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP, HTTPS
DC-in jackY
LED indicatorsHDD, LAN, Power
Line inputs (RCA)1
Line outputs (RCA)1
Maximum HDD capacity6000 GB
HDMI ports quantity1
Ethernet LAN (RJ-45) ports1
Playback resolutions supported1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Ethernet LANY
Wi-FiN
Ethernet interface typeFast Ethernet
Power source typeDC
DC output voltage12
Camera power consumption (standby)4 W
Recorder power consumption (typical)8 W
Mobile operating systems supportedAndroid, iOS
Operating temperature (T-T)-40 - 80 °C
Operating relative humidity (H-H)10 - 90%
Remote viewingY
Video compression formatsH.264, MP4
Audio formats supportedG.711 A-law
Supported video modes720p
Web-based managementY
Country of originChina
Product colourBlack, White
Pallet net height120 cm
Pallet net length80 cm
Pallet net width140 cm
CertificationCE
Camera width6.4 cm
Camera depth16.5 cm
Camera height6.4 cm
Recorder width22 cm
Recorder depth22.2 cm
Recorder height4.5 cm
Width225 mm
Depth430 mm
Height221 mm
Package width374 mm
Package depth154 mm
Package height308 mm
Package weight4 kg
Power supply includedY
ManualY
Cables includedDC
Package typeBox
Quick installation guideY
Software CDY
