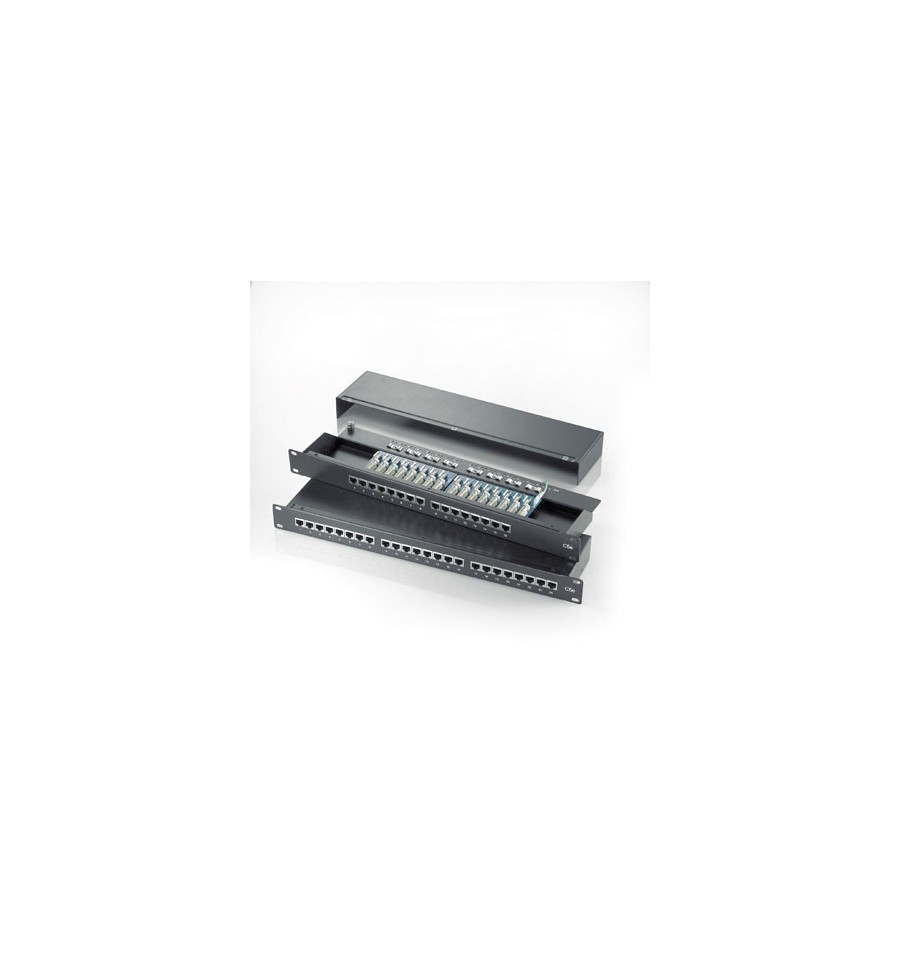

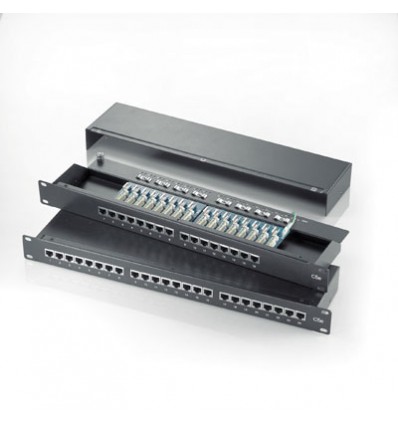

ROLINE Cat.5e 19" Patch Panel, 24 Ports, STP black

ROLINE

26.11.0328

Jauns

  • The panels comply with the EIA / TIA 568 Cat. 5e TSB40A standard
  • The cable connection on the back is implemented via LSA-plus connection technology with colour coding on the top in accordance with EIA/TIA 568
  • Sheet steel housing and cover
  • 24 Ports
  • Colour: Black

For a structured cabling system we recommend to use the following components...

More details

  • The panels comply with the EIA / TIA 568 Cat. 5e TSB40A standard
  • The cable connection on the back is implemented via LSA-plus connection technology with colour coding on the top in accordance with EIA/TIA 568
  • Sheet steel housing and cover
  • 24 Ports
  • Colour: Black

For a structured cabling system we recommend to use the following components:

ROLINE Cat.5e S/FTP Cable, Solid Wire, AWG24: 21.15.0019 (100 m), 21.15.0020 (300 m)
ROLINE Cat.5e Flush/Surface Mount Wall Jack, shielded: 25.16.8487 (white), 25.16.8486 (ivory)/25.16.8387 (white), 25.16.8386 (ivory)
ROLINE Cat.5e 19" Patch Panel, 24 Ports, shielded: 26.11.0329 (light grey), 26.11.0328 (black)
ROLINE Cat.5e S/FTP Patch Cord, grey, 5 m: 21.15.0305

Our in-house laboratory has tested this cable-plug combination, in a Channel of 100 meters, in compliance with Class D specifications.
Assembly cable connectionKrone LSAplus
AssignmentEIA/TIA 568A & 568B
Cabinet system19"-Technique
Colourblack
Connection directionStraight
Conveyance goodNo
ManufacturerROLINE
Manufacturer Item No.26.11.0328
Material (casing)Sheet steel
Modular assemblyNo
Product groupConnection technology TP
Product typePatchpanel Cat.5e
Quantity of ports24
separate strain reliefYes
Shield contactsYes
Shield typeScreened
Transfer qualityCat5e / Class D
Wall fixeningnot applicable
