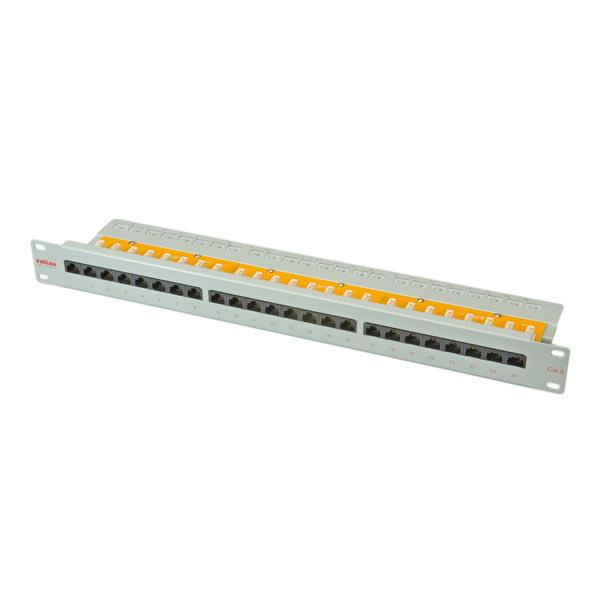

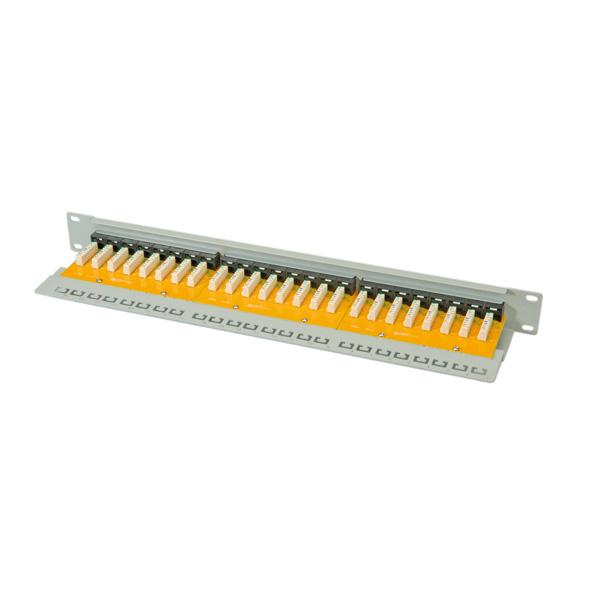

ROLINE Cat.6/Class E 19" Patch Panel, 24 Ports, UTP light grey

ROLINE

26.11.0355

Jauns

  • The ROLINE Cat.6/Class E 19" patch panel fulfils the Cat.6/Class E Permanent Link Standard and is ideal for Gigabit Ethernet networks
  • Cable assembly takes place using LSA-plus piercing terminals with colour coding on the top in accordance with EIA/TIA 568
  • 24 ports
  • Colour: Light grey

For a structured cabling system we recommend to use the follow...

More details

  • The ROLINE Cat.6/Class E 19" patch panel fulfils the Cat.6/Class E Permanent Link Standard and is ideal for Gigabit Ethernet networks
  • Cable assembly takes place using LSA-plus piercing terminals with colour coding on the top in accordance with EIA/TIA 568
  • 24 ports
  • Colour: Light grey

For a structured cabling system we recommend to use the following components:

ROLINE Cat.6 UTP Cable, Solid Wire, AWG23: 21.15.0990 (100 m), 21.15.0991 (300 m)
ROLINE Cat.6 Flush Mount Wall Jack, unshielded: 25.16.8494 (white), 25.16.8500 (ivory)
ROLINE Cat.6 Surface Mount Wall Jack, unshielded: 25.16.8394 (white), 25.16.8395 (ivory)
ROLINE Cat.6 19" Patch Panel, 24 Ports, unshielded: 26.11.0355 (light grey), 26.11.0362 (black)
ROLINE Cat.6 UTP Patch Cord, grey, 5 m: 21.15.0935

The accredited German laboratory GHMT has tested and certified this product combination, in a Channel of 100 meters, as being compliant to Class E specifications; certificate no. z2329b-10-E (with flush mount)/z2330b-10-E (with surface mount).
Assembly cable connectionKrone LSAplus
AssignmentEIA/TIA 568A & 568B
Cabinet system19"-Technique
Colourlight grey
Connection directionStraight
Conveyance goodNo
ManufacturerROLINE
Manufacturer Item No.26.11.0355
Modular assemblyNo
Product groupConnection technology TP
Product typePatchpanel Cat.6 / Class E
Quantity of ports24
separate strain reliefYes
Shield contactsNo
Shield typeNot screened
Transfer qualityCat6 / Class E
