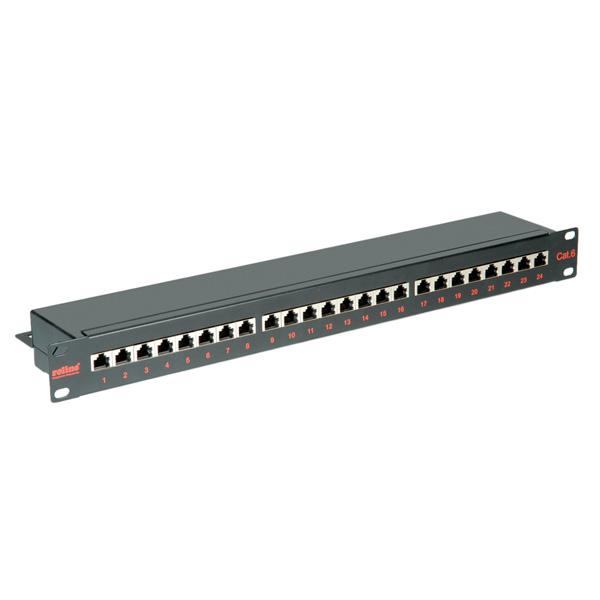

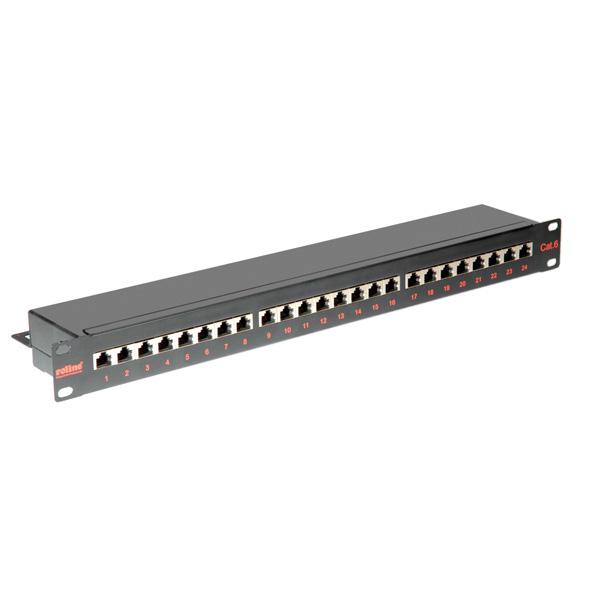

ROLINE Cat.6/Class E 19" Patch Panel, 24 Ports, STP black

ROLINE

26.11.0361

Jauns

  • The ROLINE Cat.6/Class E 19" patch panel fulfils the Cat.6/Class E Permanent Link Standard and is ideal for Gigabit Ethernet networks
  • Cable assembly takes place using LSA-plus piercing terminals with colour coding on the top in accordance with EIA/TIA 568
  • Sheet steel housing and cover
  • 24 ports
  • Colour: Black

For a structured cabling syst...

More details

  • The ROLINE Cat.6/Class E 19" patch panel fulfils the Cat.6/Class E Permanent Link Standard and is ideal for Gigabit Ethernet networks
  • Cable assembly takes place using LSA-plus piercing terminals with colour coding on the top in accordance with EIA/TIA 568
  • Sheet steel housing and cover
  • 24 ports
  • Colour: Black

For a structured cabling system we recommend to use the following components:

ROLINE Cat.6 S/FTP Cable, Solid Wire, AWG23: 21.15.0890 (100 m), 21.15.0891 (300 m)
ROLINE Cat.6 Flush Mount Wall Jack, shielded: 25.16.8492 (white), 25.16.8493 (ivory)
ROLINE Cat.6 Surface Mount Wall Jack, shielded: 25.16.8392 (white), 25.16.8393 (ivory)
ROLINE Cat.6 19" Patch Panel, 24 Ports, shielded: 26.11.0351 (light grey), 26.11.0361 (black)
ROLINE Cat.6 S/FTP Patch Cord, grey, 5 m: 21.15.0835

The accredited German laboratory GHMT has tested and certified this product combination, in a Channel of 100 meters, as being compliant to Class E specifications; certificate no. z2365b-10-E (with flush mount)/z2364b-10-E (with surface mount).
Assembly cable connectionKrone LSAplus
AssignmentEIA/TIA 568A & 568B
Cabinet system19"-Technique
Colourblack
Connection directionStraight
Conveyance goodNo
ManufacturerROLINE
Manufacturer Item No.26.11.0361
Material (casing)Metal
Modular assemblyNo
Product groupConnection technology TP
Product typePatchpanel Cat.6 / Class E
Quantity of ports24
separate strain reliefYes
Shield contactsYes
Shield typeScreened
Transfer qualityCat6 / Class E
