ROLINE Smart KVM Extender, USB

ROLINE

14.01.3249

Jauns

  • Smart combination of KVM Extender (up to 150 m), KVM Switch and PC Share
  • Remotely locates the keyboard, mouse and monitor up to 150 m away from a computer
  • Connection of the Computer Unit and Station Unit via Cat. 5e TP cable
  • Supports USB consoles
  • Video compensation can be adjusted by hot key to ensure the optimum signal quality for any length of cable wi...

More details

  • Smart combination of KVM Extender (up to 150 m), KVM Switch and PC Share
  • Remotely locates the keyboard, mouse and monitor up to 150 m away from a computer
  • Connection of the Computer Unit and Station Unit via Cat. 5e TP cable
  • Supports USB consoles
  • Video compensation can be adjusted by hot key to ensure the optimum signal quality for any length of cable within the limit
  • Locates the computer away from your desk and work area, saving you valuable space
  • Allows two users to share one computer both in local and remote areas
  • Beeps confirmation for key control makes the operation easier and cross-checked
  • Easy installation
  • Supports standard USB keyboards and mice
  • Compatible with XGA, VGA and SVGA system

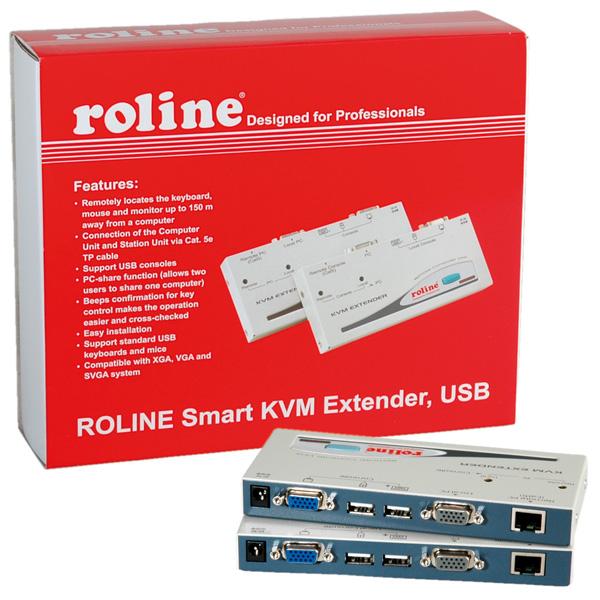

  • Contents: Local unit with power supply unit, remote unit, manual

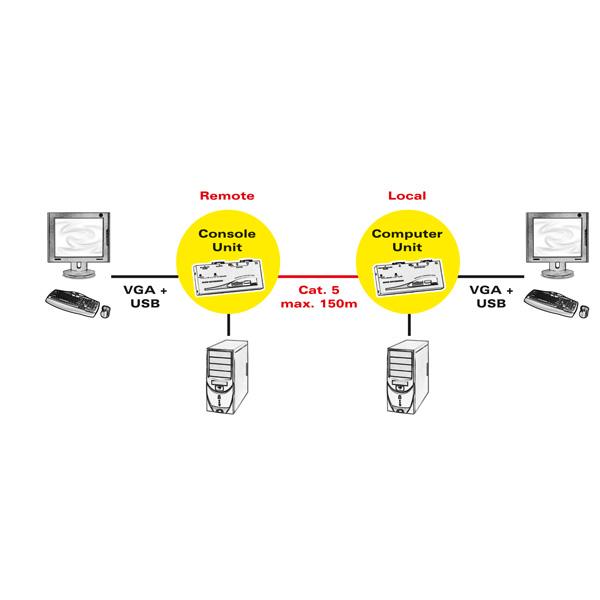

Example of use:
ROLINE KVM extension for remote operation of a workplace
The system provides a local, and a remote unit to connect another console. This can be operated via a Cat5 cable with remote VGA and USB control unit.
Up to 150 m away from the PC, the console can be placed in convenient access while the PC is installed themselves in a safe environment.
Colour (Design profile)beige-grey
Content of deliveryLocal unit with power supply unit, remote unit, manual
Conveyance goodNo
Dimensions (HxWxD)each 20 x 156 x 65 mm
Local Console connectionYes
ManufacturerROLINE
Manufacturer Item No.14.01.3249
Material (casing)metal
Max. distance local-remote unitup to 150 m
Max. resolution (nominal)1024 x 768
Network connectionRJ45
PC/Switch: connection on moulded cablesNo
PC/Switch: monitor connection1x HD15 F
PC/Switch: mouse/keyboard connection2x USB
Power supply output9V DC, 600mA
Power supply unit requiredPartially
Product groupKVM (IP) extensions
Product typeKVM-Extender, VGA
Remote console: Cable connector typeNo
Remote Console: Monitor connection1x HD15 F
Remote Console: Mouse/Keyboard connection2x USB
Supported PC-SystemsUSB
Technical particularitySmart combination of KVM Extender (up to 150m), KVM Switch and PC Share
