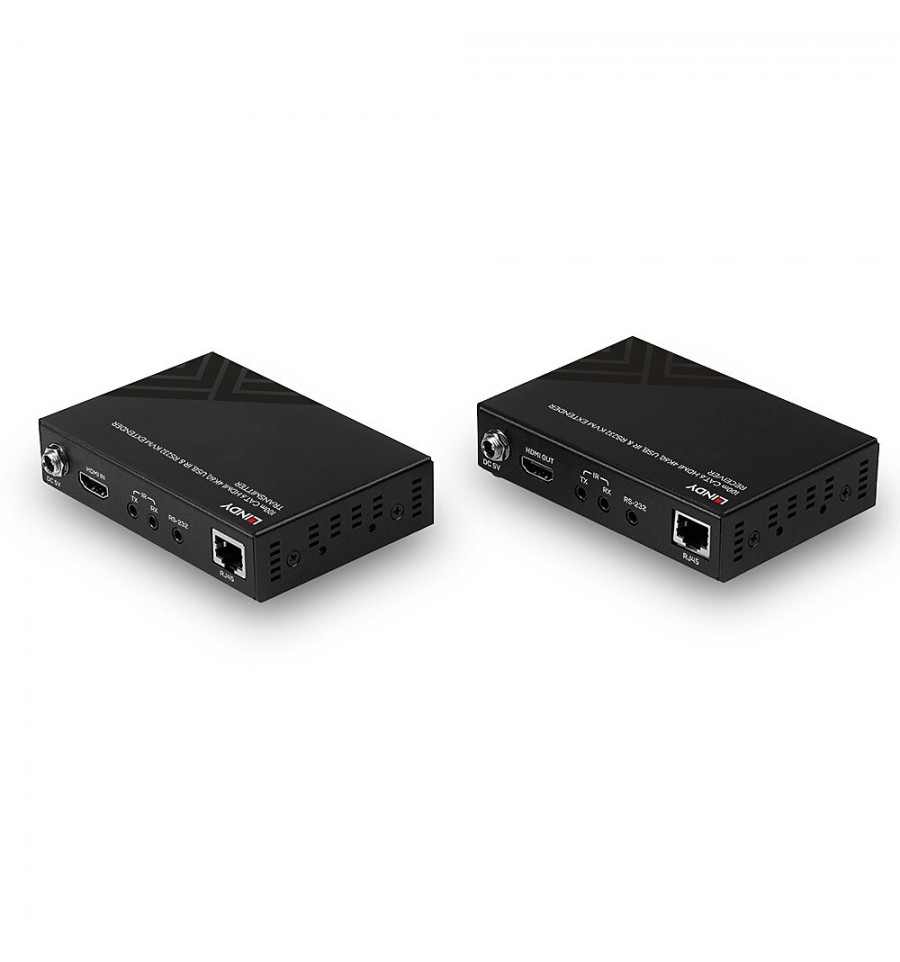

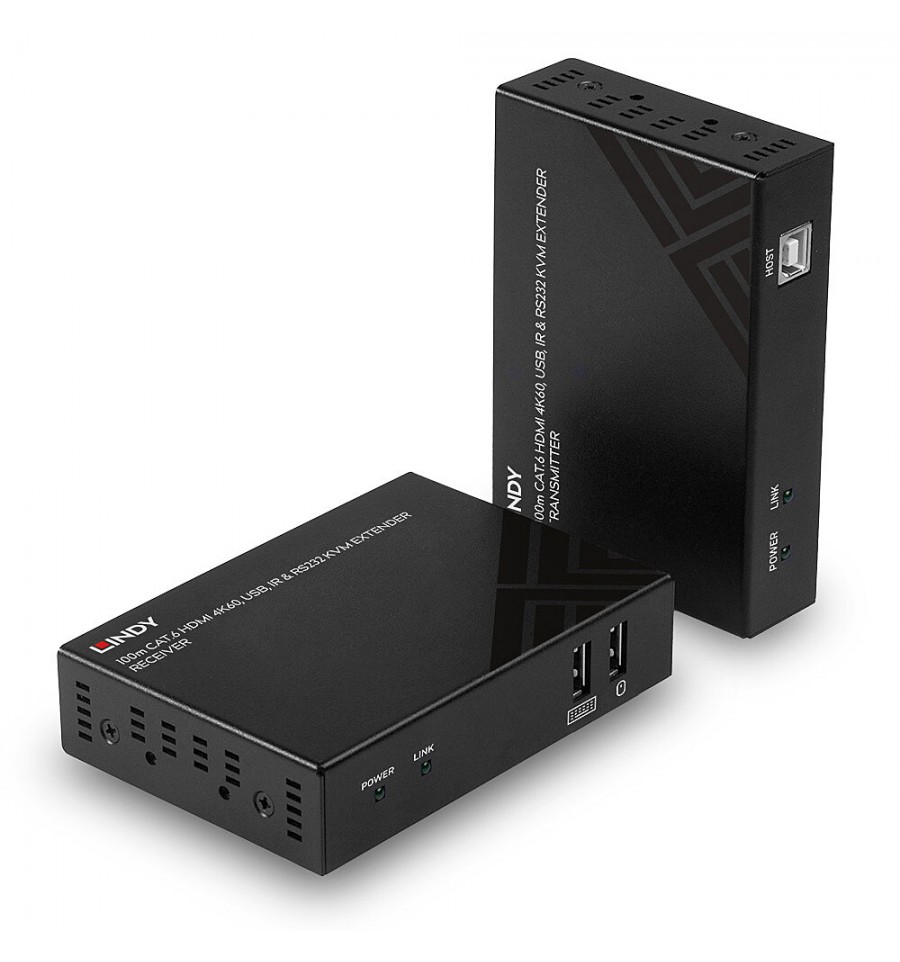

Lindy 100m Cat.6 HDMI 4K60, USB & RS232 KVM Extender

Lindy

LIN39382

Jauns

Specifications

  • AV Interface: HDMI
  • Console Interface: USB
  • Interfaces Standard: HDMI 2.0, USB (HID)
  • Supported Bandwidth: 18Gbps
  • Maximum Distance: 100m (328.08ft)
  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
  • HDCP Support: 2.2
  • Supported Audio: -
  • Separate Audio Ports: -
  • Transmission Protocol: -
  • Transmission Medium: Cat.6
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Special Features: IR and RS-232 signal extension



Connectors

  • Transmitter KVM Interfaces: HDMI (Female), USB Type B (Female)
  • Transmitter Extension Port: 1x RJ-45 (Female)
  • Receiver Console Interface: HDMI (Female), 2 x USB Type A (Female)
  • Receiver Extension Port: 1 x RJ-45 (Female)
  • Bi-directional Ports: 3.5mm RS-232 (Female), 3.5mm IR (Female)
  • Other Interfaces: -
  • Power: 5.5/2.1mm DC socket



Physical Properties

  • Dimensions (approx.) WxDxH: 111x75x25mm (4.37x2.95x0.98in) (each unit)
  • Housing Material: Metal
  • Net Weight: 1.16kg (2.56lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -15°C - 55°C (5°F - 131°F)
  • Humidity: 5 - 85% RH (non-condensing)
  • Power Requirements: 5VDC 3A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 248x195x95mm (9.76x7.68x3.74in)
  • Gross Weight: 1.4kg (3.08lb)
  • Warranty (Years): 2
  • Certification: CE, UKCA, FCC, RoHS, REACH & California Proposition 65



Package Contents

  • Transmitter unit
  • Receiver unit
  • IR Emitter cable, 1.5m
  • IR Receiver cable, 1.5m
  • 3.5mm to RS-232 DB9 Male cable, 0.5m
  • 3.5mm to RS-232 DB9 Female cable, 0.5m
  • 4 x brackets with 8 screws
  • 2 x Multi-Country Power Supply (EU, UK, US, AUS)
  • Lindy Manual



Purchasing Information

  • No.: 39382
  • EAN: 4002888393829
