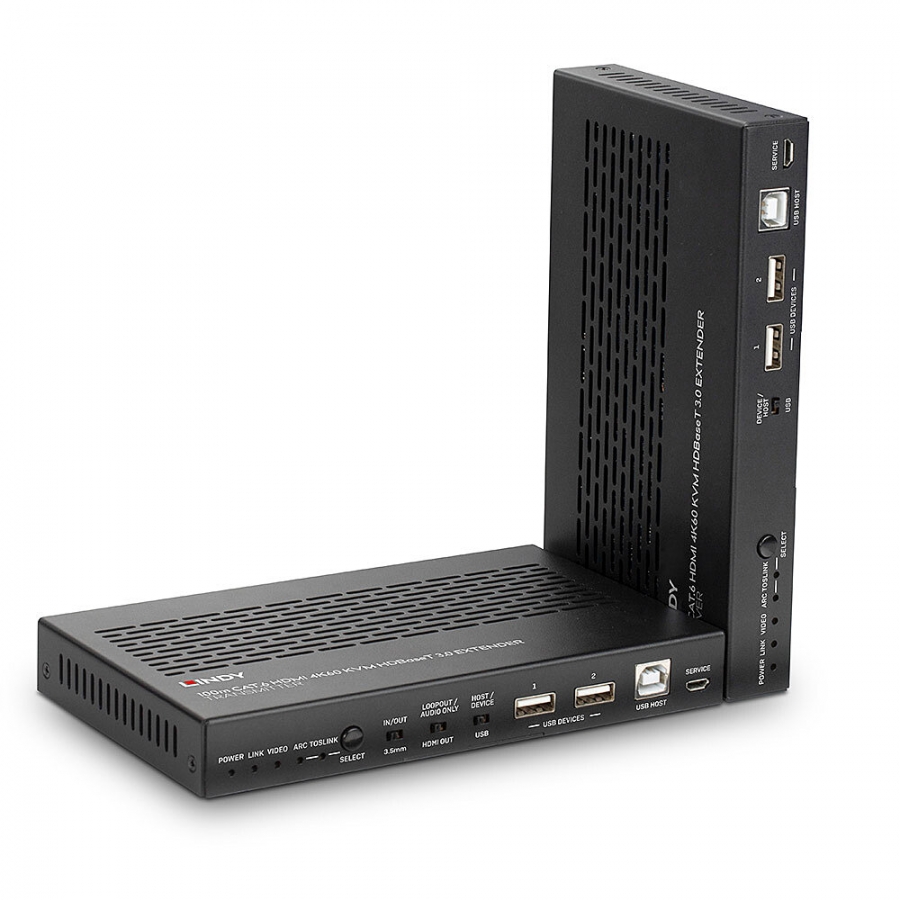

Lindy 100m Cat.6A HDMI 4K60, Audio, IR & RS-232 HDBaseT 3.0 KVM Extender

Lindy

LIN38344

Jauns

Specifications

  • AV Interface: HDMI
  • Interface Standard: HDMI 2.0, USB 2.0
  • Supported Bandwidth: 18 Gbps
  • Maximum Distance: 100m (328.08ft)
  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
  • HDCP Support: 2.3
  • EDID Pass Through: Pass-through
  • Supported Audio: HDMI Audio Pass-through

TosLink (Optical) Up to 5.1Ch

3.5mm Up to 2.0Ch

  • Separate Audio Ports: TosLink (Optical), 3.5mm
  • IR Support: 20 - 60KHz
  • CEC Support: Pass-through
  • Serial Interface: RS-232
  • Transmission Protocol: HDBaseT 3.0
  • Transmission Medium: 1 x Cat.6
  • Laser Class (only for Fibre): -
  • Wavelength (only for Fibre): -
  • Chipset: VS3000
  • Special Features: HDMI Loop Out Port

USB Host/Device on each unit
PoC (Power over Cable)

eARC/ARC and Audio embedding/de-embedding Support



Connectors

  • Transmitter Input: HDMI Type A (Female), USB Type B (Female), 3.5mm IR (Female)
  • Transmitter Output: HDMI Type A (Female), RJ-45 (Female), TosLink (Optical) (Female), 3.5mm Audio (Female), 2 x USB Type A (Female)
  • Transmitter Bi-directional Ports: 3.5mm Audio (Female), RS-232 3-Pin Terminal Block, RJ-45 Ethernet (Female)
  • Receiver Input: RJ-45 (Female), USB Type B (Female), TosLink (Optical) (Female), 3.5mm IR (Female)
  • Receiver Output: HDMI Type A (Female), 2 x USB Type A (Female), 3.5mm Audio (Female), 3.5mm IR (Female)
  • Bi-directional Ports: RS-232 3-Pin Terminal Block, RJ-45 Ethernet (Female)
  • Power: 5.5/2.1mm



Physical Properties

  • Dimensions (approx.) WxDxH: 170x88x20mm (6.69x3.46x0.79in) per unit
  • Housing Material: Metal
  • Net Weight: 1.143kg (2.52lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20 - 90% RH (non-condensing)
  • Power Requirements: 24VDC 1A
  • Colour: Black



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 290x75x220mm (11.42x2.95x8.66in)
  • Gross Weight: 1.442kg (3.18lb)
  • Warranty (Years): 2
  • Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65



Package Contents

  • HDBaseT HDMI KVM Extender, Transmitter
  • HDBaseT HDMI KVM Extender, Receiver
  • IR Emitter Cable, 1.5m
  • IR Receiver Cable, 1.5m
  • 4 x Mounting Ears & 8 x Screws
  • 2 x 3-Pin Terminal Block
  • Multi-country Power Supply (UK, EU, US & AUS)
  • Lindy Manual



Purchasing Information

  • No.: 38344
  • EAN: 4002888383448
