Level One LevelOne KVM Switch 48,3cm 16x PS2/USB KVM-1631 mit Slot

LEVEL ONE

KVM-1631

Jauns

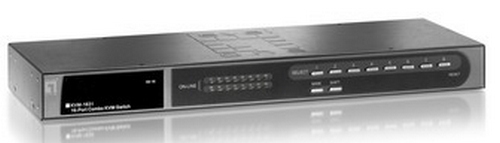

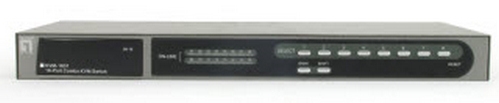

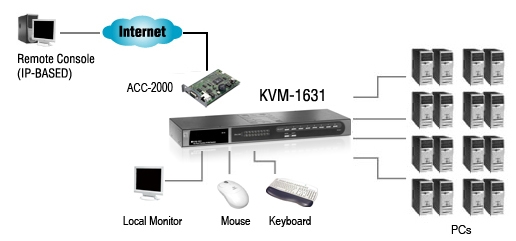

The LevelOne KVM-1631 16-port combo KVM switch enables users to control and manage a server farm or computers connected to the KVM switch with either the local console or remote console port.Local Console The LevelOne KVM-1631 Combo KVM Switch is easy to connect to a PS/2 or USB enabled keyboard and mouse with a VGA monitor through the local console port. This enables a user to control systems connected to the KVM switch directly.Remote Console In order to make use of the remote control feature, the KVM-1631 provides users with a greater variety of connectivity options through its expansion slot for optional modules.LevelOne has available an optional Cat.5 Console Module for this purpose. The ACC-1000 Cat.5 Console Module allows for the transmission of a Cat.5 signal to from the controlling unit to units or computers connected to via Cat.5 cabling to the KVM-1631. The ACC-1000 Cat.5 Module converts the Cat.5 signal into a computer signal to give users the ability to control servers and PCs from a remote location up to 300 meters away.Large System Management By making use of a Daisy chain, up to 128 computers can be connected to the KVM switch by cascading 8 KVM-0830/0831/0841/1630/1631/1641 together. This gives network administrator the ability to control larger groups of servers or systems from one console without the need to switching between different console stations.The friendly user interface makes management of the KVM switch and systems connected to it, easy manageable. It also has security measures in place to protect systems from unauthorized access.- Control servers and computers either locally via control port or remotely via optional modules through the module expansion slot - Features an expansion slot for flexible installation with optional module choices - Flexible auto-scan mode for flexible PC monitoring - Built-in daisy chain port for cascading with KVM-0830/0831 or KVM-1630/1631 up to 8 units - High video display quality up to 1920x1440 - Support Windows, NetWare, Unix, Linux, Mac OS and Sun Microsystems - Web based User-interface

Number of computers controlled16
Keyboard port typeUSB, PS/2
Mouse port typeUSB, PS/2
Video port typeVGA
Console portsUSB A, VGA (D-Sub)
VGA (D-Sub) ports quantity16
Console USB ports quantity2
Audio connectionsN
DC-in jackY
Maximum resolution1920 x 1440 pixels
Scan interval5,99 s
Hot-Plug supportY
Maximum operating distance300 m
Rack mountingY
Product colourBlack
Rack capacity1U
CascadableY
LED indicatorsY
Built-in displayY
On Screen Display (OSD)Y
Output voltage12 V
Output current1 A
Windows operating systems supportedY
Linux operating systems supportedY
Mac operating systems supportedY
Other operating systems supportedNovell NetWare 3.x, Novell NetWare 4.x, Novell NetWare 5.x, Novell NetWare 6.x
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 95%
Width160 mm
Depth445 mm
Height45 mm
Package width325 mm
Package depth555 mm
Package height310 mm
Package weight10.2 kg
ManualY
AC adapter includedY
Harmonized System (HS) code85176200
Country of originChina
