Level One LevelOne KVM Switch 8901 19" WIDESCREEN LCD RACK

LEVEL ONE

KVM-8901DE

Jauns

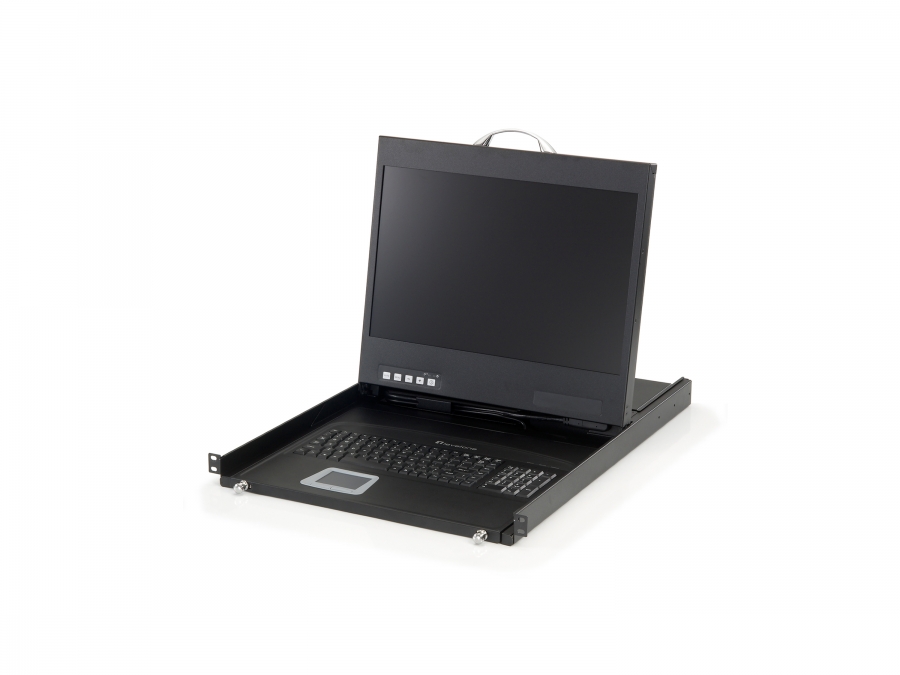

The LevelOne KVM-8901 is a compact and modular KVM console drawer designed to be used in a standard 19-inch server rack. It offers connectivity to 8 or 16 computers by depending on the LevelOne KVM module that is installed (KCM-0832 or 1632). It features a 19-inch retractable LCD(19:10) high video quality up to 1440 x 900 monitor and keyboard with built-in touchpad. Users can daisy chain up to eight units of KCM-0832/1632 together, providing control of up to 128 computers in total, support Auto Scan Mode for monitoring PCs and flexible and easy PC selection via KVM-OSD manual or hot Keys.Key Features - Modular design for optional KVM switches, enabling management of up to 128 computers - Supports video resolutions up to 1440 x 900 - Dual Interface for PS/2 and USB keyboard/mouse - Easy switching between computers with keyboard hotkeys/On Screen Display (OSD) menus - Auto scan mode for non-stop monitoring of selected computer - Password protection prevents unauthorized access - Multi-platform support: Windows, Mac OS X, Sun, Linux

Display diagonal48.3 cm (19")
Display resolution1440 x 900 pixels
DisplayTFT
Display brightness250 cd/m²
Contrast ratio (typical)500:1
Viewing angle, horizontal85°
Viewing angle, vertical85°
On Screen Display (OSD)Y
Aspect ratio16:10
Display typeLCD
Display number of colours16.78 million colours
Product colourBlack
Operating relative humidity (H-H)10 - 90%
Relative humidity10 - 90%
Console portVGA
Daisy chainY
Sustainability certificatesRoHS
Country of originTaiwan
Keyboard number of keys105
Built-in touchpadY
Keyboard languageGerman
Keyboard layoutQWERTZ
CertificationCE, FCC, REACH
Power consumption (typical)19.2 W
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Windows operating systems supportedY
Mac operating systems supportedY
Linux operating systems supportedY
Other operating systems supportedSolaris 8, Solaris 9
Width482 mm
Height44 mm
Depth610 mm
Weight20 kg
Package weight1.3 kg
Package dimensions (WxDxH)600 x 210 x 780 mm
Package width742 mm
Package depth576 mm
Package height167 mm
Cables includedAC, KVM
Screws includedY
Quick installation guideY
ManualY
Package typeBox
