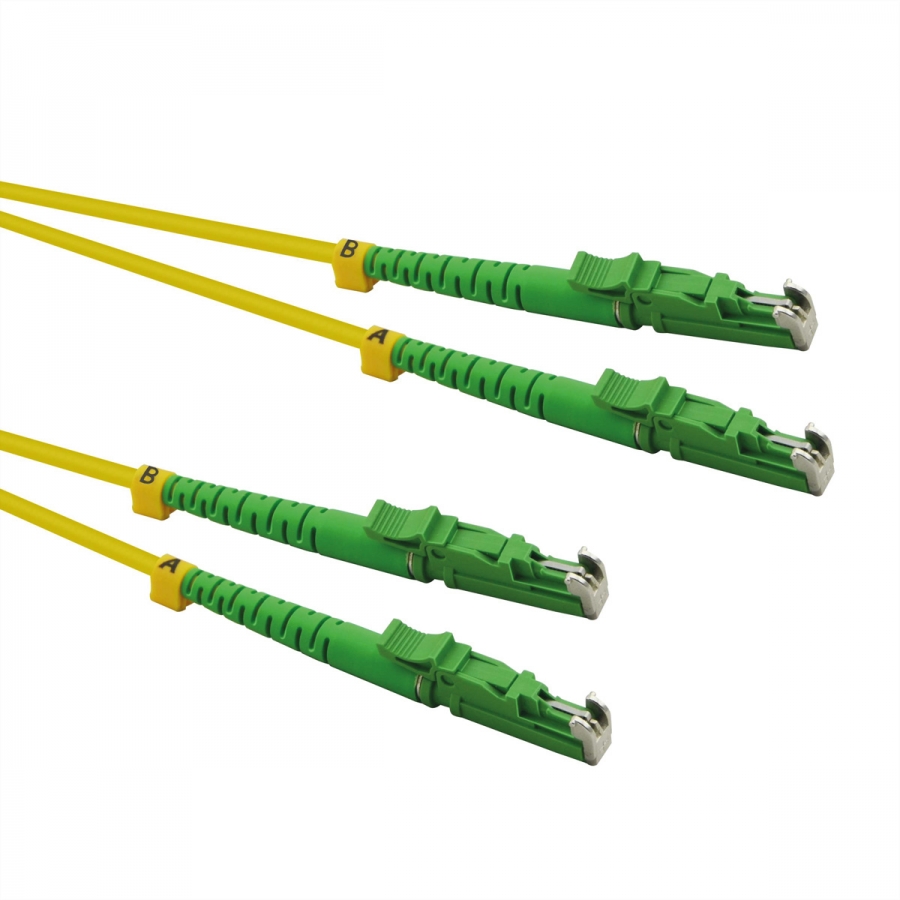

ROLINE FO Jumper Cable Duplex, 9/125µm, OS2, LSH/LSH, APC Polish, LSOH, yellow,

ROLINE

21.15.9505

Jauns

High-quality fibre optic cable with the high protective, secured LSH connection on both sides - both connections are APC polished.

  • Duplex cable with fiber type 9/125µm OS2
  • Cable material: sheath halogen-free and flame-retardant, yellow, solid core with aramid strain relief
  • LSH connectors: precision-manufactured connectors with low return loss, APC ground joint, ceramic ferrule
  • The LSH connector has a spring-loaded shutter, which fully protects the ferrule from dust and scratches
  • APC Polish (8° - APC - Angled Physical Contact - allows tighter connection and smaller end-face radii)
  • IL < 0.25dB, RL > 60dB
  • IL (typical) < 0.12dB
  • Cable OD (outer diameter): 3.0 x 6.0mm



ManufacturerROLINE
Product groupFibre optic cable
Product typeFibre Optic Jumper Cables Singlemode
Colouryellow
Length5 m
Quantity of fibre2
Cable typeDuplex Cable
External cable
Fibre section9/125µm OS2
Connection portsLSH / LSH
Side 1 Connector TypeLSH
Side 2 Connector TypeLSH
Kevlar strain relief
Cable LSOH
Current catalog editionC20-01.53
