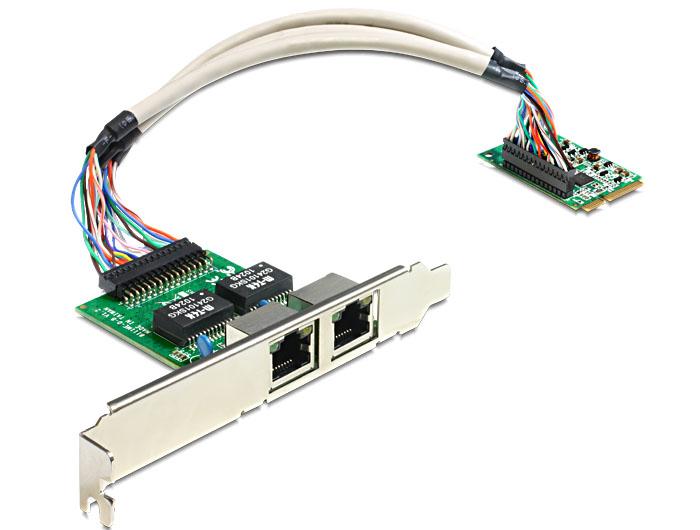

Delock MiniPCIe IO PCIe full size 2 x Gigabit LAN

DELOCK

95237

Jauns

This miniPCIe adapter by Delock expands your system by two Gigabit Lan interface, which you can lead out via the slot bracket.

More details

Description:
This miniPCIe adapter by Delock expands your system by two Gigabit Lan interface, which you can lead out via the slot bracket.

Specification:
• Chipset: Realtek RTL8111E
• Form factor: miniPCIe full size
• Interface: PCI Express Revision 1.1
• Connector: 2 x Gigabit Lan
• Data transfer rate up to 10/100/1000 Mb/s
• Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Automatic MDI/MDI crossover correction
• Support IEEE 802.1P layer 2 priority encoding
• Support IEEE 8021Q VLAN insertion and removal
• Support D3 Enhanced Power Down mode
• Integrated switching regulator and 3.3 V power source
• Cable length with connector: ca. 21.5 cm
• Operating temperature: -10 °C ~ 80 °C

System requirements:
• Windows Vista/7/7-64/8/8-64/8.1/8.1-64, Linux Kernel 2.6
• Mainboard with a free miniPCIe slot with a PCIe interface
• PC with one free slot

Package content:
• MiniPCIe module
• Connecting cable
• Gigabit Lan bracket
• Driver CD
• User manual

PCI Express
