Delock PCI Express Card 1 x internal M.2 NGFF

DELOCK

89381

Jauns

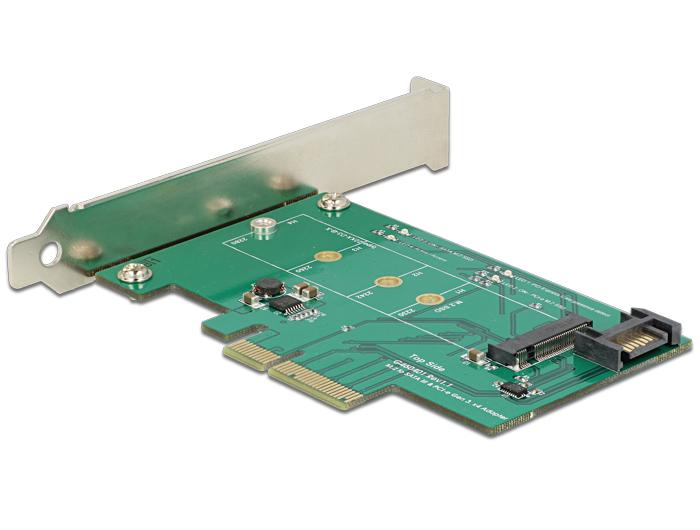

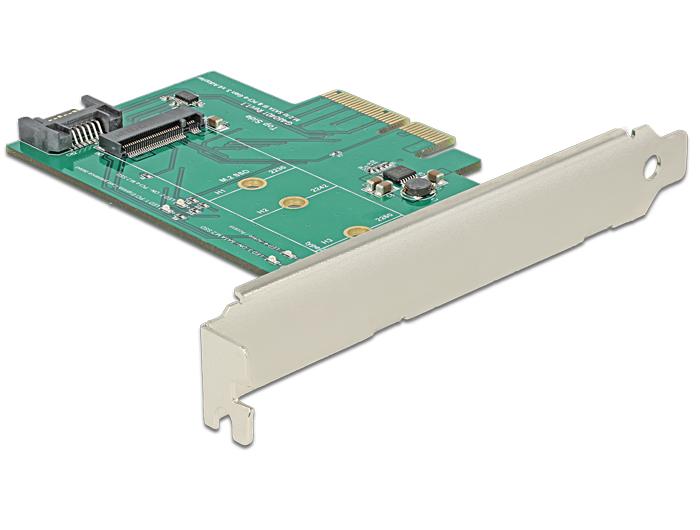

This PCI Express card by Delock expands your PC by one M.2 NGFF slot. You can connect one M.2 NGFF SSD in format 2280, 2260 2242 or 2230. If you connect a SATA module you have to connect the SATA 7 pin port with your mainboard.

More details

Description:
This PCI Express card by Delock expands your PC by one M.2 NGFF slot. You can connect one M.2 NGFF SSD in format 2280, 2260 2242 or 2230. If you connect a SATA module you have to connect the SATA 7 pin port with your mainboard.

Specification:
• Connector: internal:
1 x 67 pin M.2 NGFF key M slot
1 x SATA 6 Gb/s 7 pin female
1 x PCI Express x4
• Interface: PCIe / SATA
• Supports M.2 NGFF modules in format 2280, 2260, 2242 and 2230 with key M or
key B+M based on PCIe or SATA

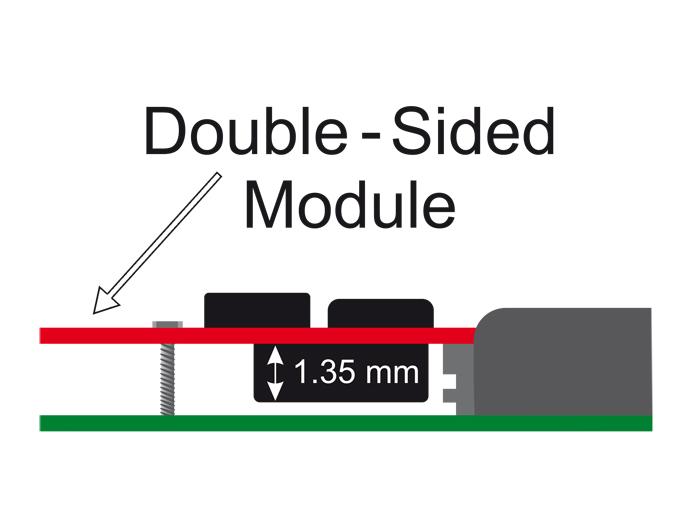

• Maximum height of the components on the module: 1.35 mm
application of double-sided assembled modules supported
• Supports M.2 NGFF PCI Express 2-Lane and 4-Lane modules

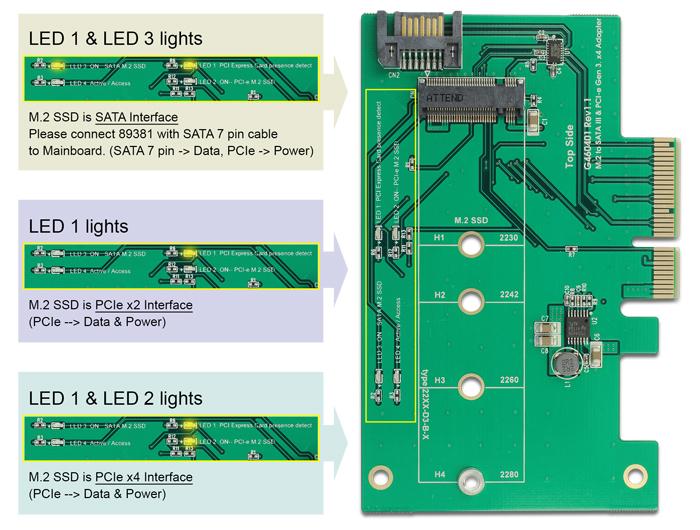

• 4 LEDs for indication of SATA or PCI Express module and for activity status
• Bootable (with SATA module)
• OS independent, no driver installation necessary

System requirements:
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
• Additional need a free SATA port and SATA data cable if using a SATA module

Package content:
• PCI Express card

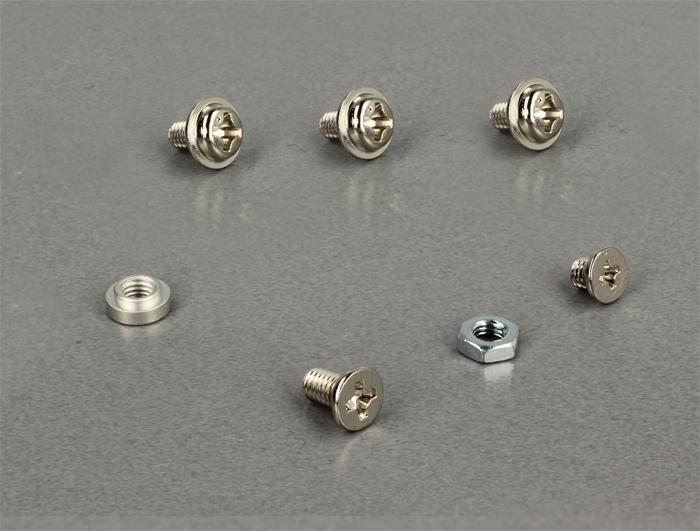

• Mounting material
