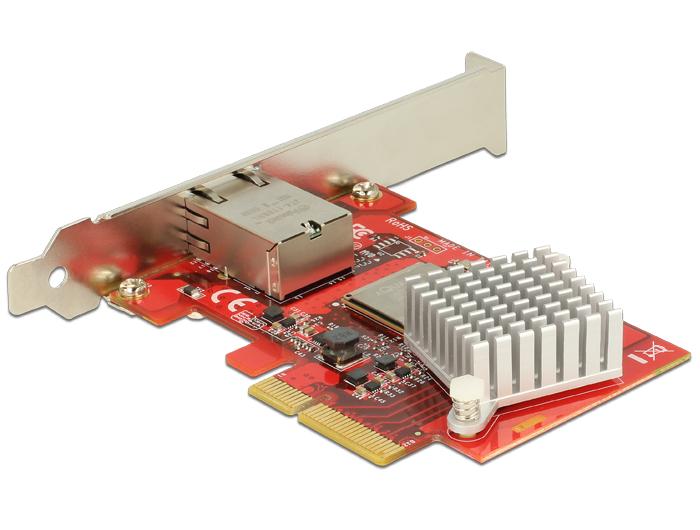

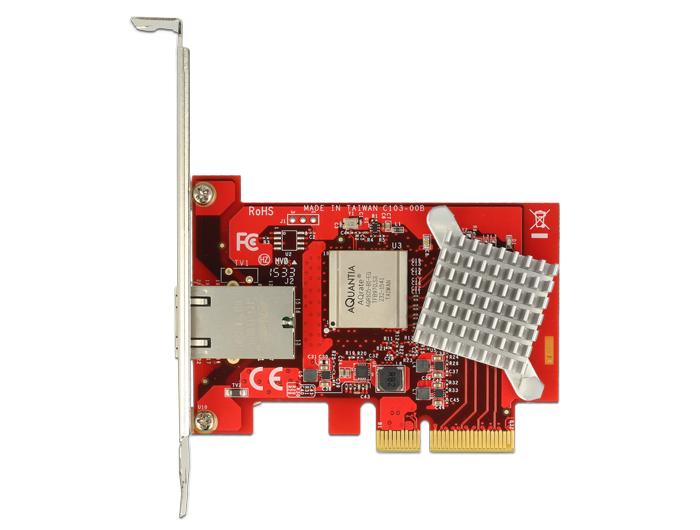

Delock PCI Express Card 1 x 10 Gigabit LAN NBASE-T RJ45

DELOCK

89456

Jauns

The Delock PCI Express card offers a network port with a data transfer rate up to 10 Gbps with conventional Cat.6 or Cat.6A copper cables. With the NBASE-T technology additional speeds of 2.5 Gbps and 5 Gbps are available. This allows for higher transmission rates than 1 Gbps when a connection with 10 Gbps over existing cable is not possible.

More details

Description:
The Delock PCI Express card offers a network port with a data transfer rate up to 10 Gbps with conventional Cat.6 or Cat.6A copper cables. With the NBASE-T technology additional speeds of 2.5 Gbps and 5 Gbps are available. This allows for higher transmission rates than 1 Gbps when a connection with 10 Gbps over existing cable is not possible.

Specification:
• Connector:
external: 1 x 10 Gigabit LAN RJ45 female
internal: 1 x PCI Express x4, V2.0
• Chipset: Tehuti TN4010
• Data transfer rate:
Fast Ethernet up to 100 Mb/s
Gigabit Ethernet up to 1 Gbps
NBASE-T (draft) with up to 2.5 Gbps and 5 Gbps
10 Gigabit Ethernet up to 10 Gbps
PCI Express x4 up to 20 Gbps
• Supports IEEE 802.3az (EEE)
• Supports 16k Jumbo frames
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Supports IEEE 802.3ad Link Aggregation

System requirements:
• Windows Server-2008 R2/Server-2012/Server-2012 R2/
7/7-64/8/8-64/8.1/8.1-64/10/10-64, Linux Kernel 2.6.24
• PC with one free PCI Express x4 / x8 / x16 / x32 slot

Package content:
• PCI Express card

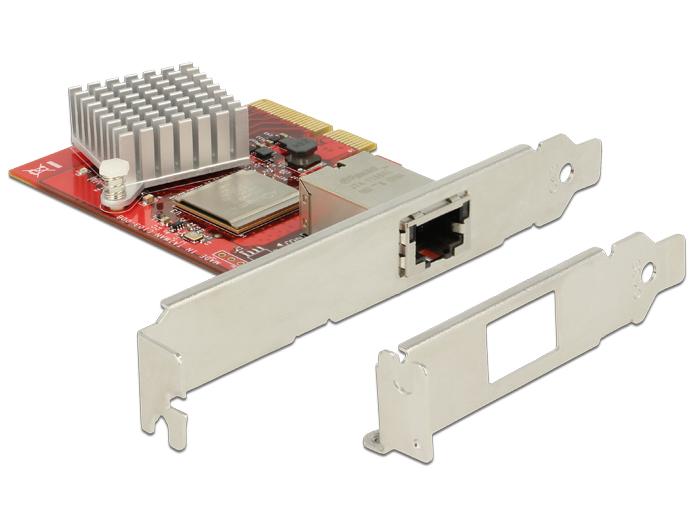

• Low profile bracket
• Driver CD
• User manual

PCI Express
