Delock PCI Express Card to 1 x internal USB 3.1 Gen 2 key A 20 pin female

DELOCK

89603

Jauns

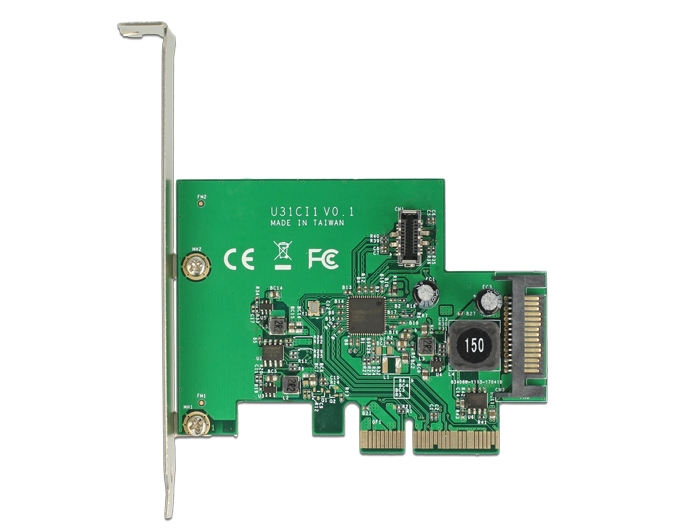

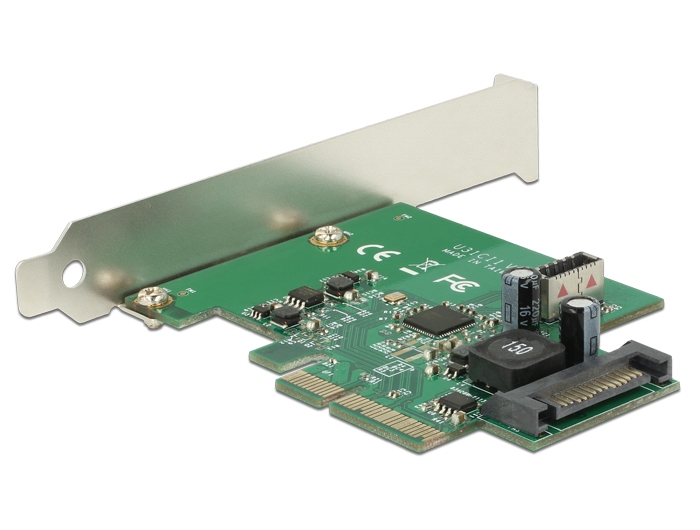

This PCI Express card by Delock expands the PC by one internal USB 3.1 key A 20 pin female port. Various cables can be connected to the card, to provide either one USB Type-C™ or two USB Type-A interfaces.
System requirements:
• Windows 8.1/8.1-64/10/10-64, Linux ex Kernel 4.4.x
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
• Optional: power supply with a free SATA power connector
Specification:
• Connectors:
  internal:
    1 x SuperSpeed USB 10 Gbps (USB 3.1 Gen 2) key A 20 pin female
    1 x SATA 15 pin power plug
    1 x PCI Express x4, V3.0
• Chipset: Asmedia ASM2142
• Data transfer rate up to:
  SuperSpeed USB 10 Gbps,
  SuperSpeed USB 5 Gbps,
  Hi-Speed 480 Mbps,
  Full-Speed 12 Mbps,
  Low-Speed 1.5 Mbps
• Power supply via PCI Express interface or via SATA 15 pin power connector
• Supports eXtensible Host Controller Interface (xHCI) specification 1.1
• Compliant with USB Attached SCSI Protocol (UASP) Rev. 1.0
Package content:
• PCI Express card

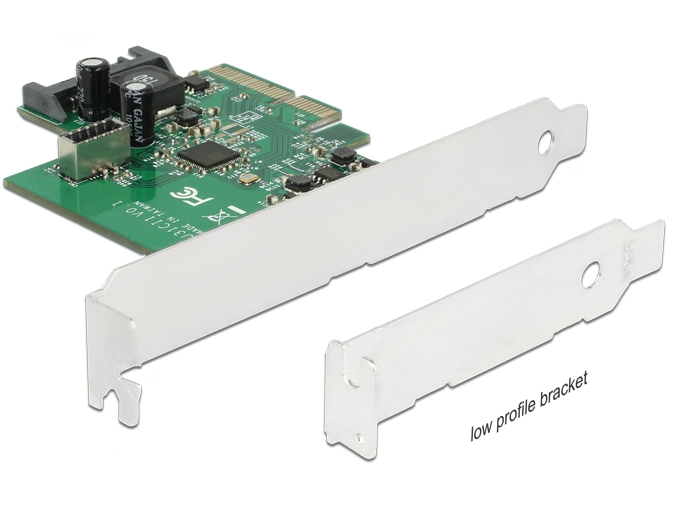

• Low profile bracket
• User manual
Data sheet:
http://www.delock.de/produkt/89603/pdf.html?sprache=en
