Delock PCI Express Card to 1 x internal M.2 Key B + Micro SIM slot - Low Profile Form Factor

Kods 89925

Condition: Jauns

Vairāk informācijas

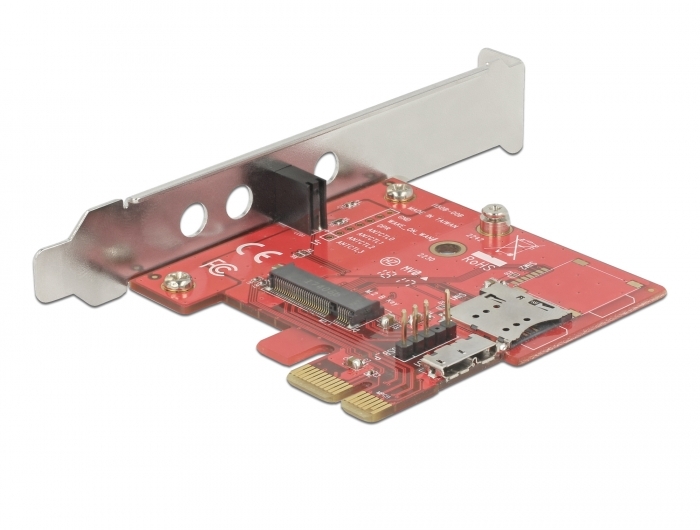

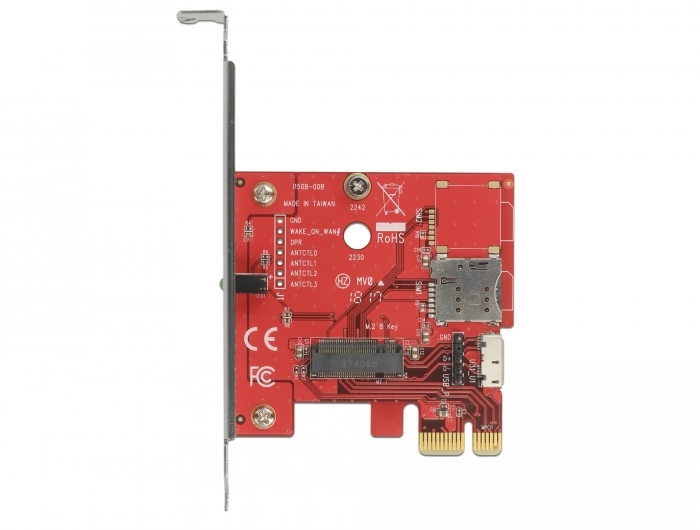

This PCI Express card by Delock expands the PC by one M.2 key B slot. Different M.2 modules with USB and PCIe signals can be inserted in the card. Furthermore there is the possibility to insert a Micro SIM card in the slot and use with an appropriate M.2 module.

System requirements:
• PC with one free PCI Express slot

Specification:
• Connectors:
  1 x 67 pin M.2 key B slot
  1 x PCI Express x1
  1 x USB 3.0 Type Micro-B female (for M.2 USB modules)
  1 x USB 2.0 pin header male (for M.2 USB modules)
• Interface: PCIe + USB
• Supports modules in format 2242, 2230, 3042 and 3030 with key B or key B+M based on PCIe and USB
• Maximum height of the components on the module: 1.35 mm, application of double-sided assembled modules supported
• 2 x LED indicator
• Each slot bracket with 3 x hole for antenna connector
• OS independent, no driver installation necessary

Package content:
• PCI Express card

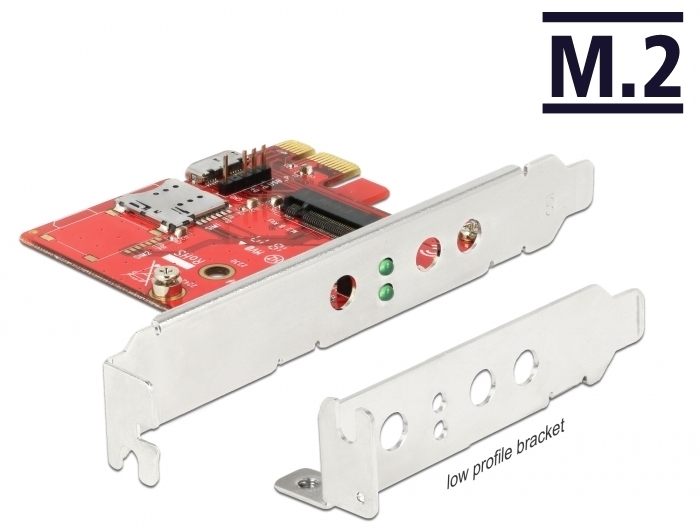

• Low profile bracket

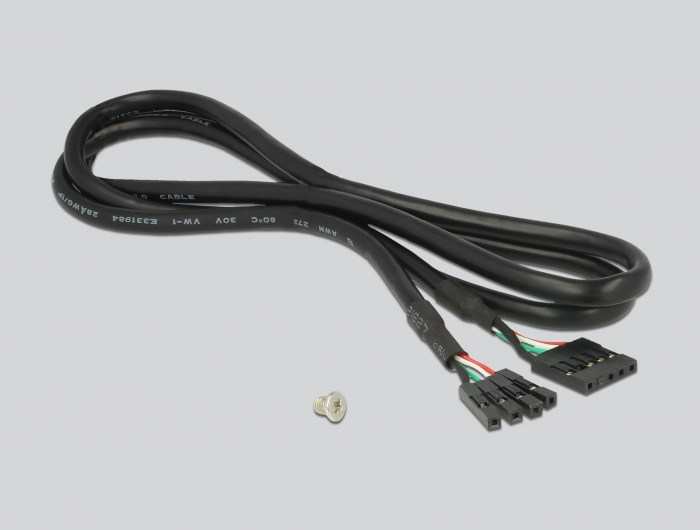

• USB pin header cable 5 pin to 4 pin, length ca. 18 cm
• User manual
