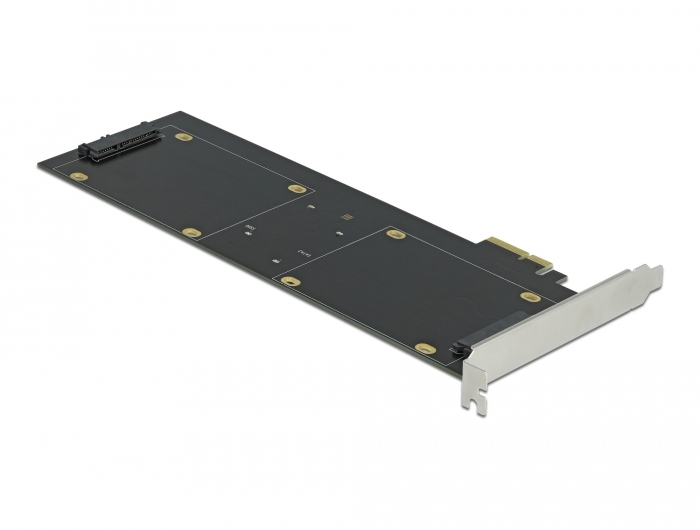

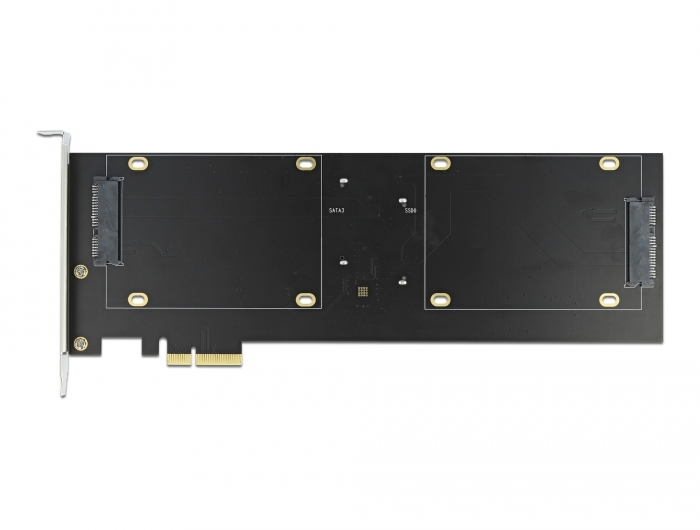

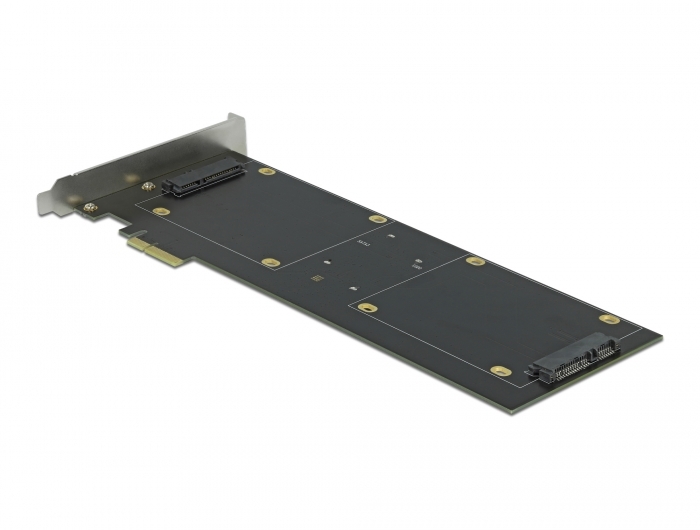

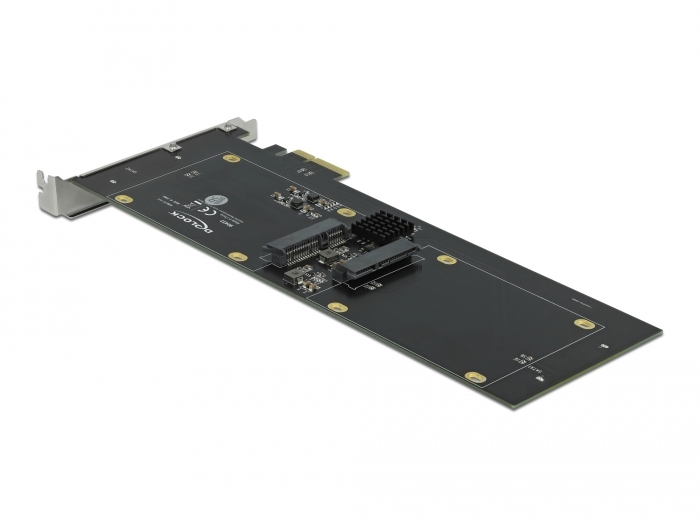

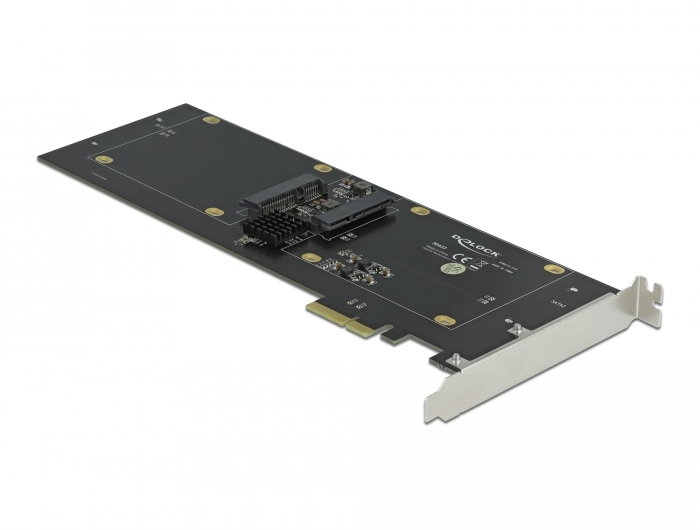

Delock PCI Express x2 Card for 4 x SATA HDD / SSD

DELOCK

90433

Jauns

This PCI Express card by Delock expands the PC by four SATA 22 pin ports. Up to four 2.5″ SSD / HDD can be connected to this card. When using more than one SATA port, there is the possibility to use different RAID modes.

HyperDuo support
The card supports a HyperDuo function. With this function it combines an SSD and an HDD to use the advantages of both data mediums, the speed of an SSD and the capacity of an HDD.

RAID support
Furthermore, the card also supports various RAID modes such as RAID 0, 1, 10 or JBOD. Also, if enough SSD or HDD are installed, two different RAID modes can be used at the same time. For example, two hard disks with RAID 0 and two hard disks can be configured in HyperDuo or RAID 0 and RAID 1.
System requirements:
• Linux Kernel 4.9.4 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express slot
Specification:
• Connectors:
  internal:
  1 x PCI Express x2, V2.0
  4 x SATA 22 pin receptacle
• Chipset: Marvell 88SE9230
• Suitable for 2.5″ SATA HDD / SSD:
  SATA HDD / SSD up to 6 Gb/s
  supports 5 V HDD / SSD
• Supports RAID 0, 1, 10, JBOD, HyperDuo Virtual Disk (Safe/Capacity)
• Bootable
• Supports Native Command Queuing (NCQ)
• Supports S.M.A.R.T.
• Supports TRIM
• Supports DevSleep
• Hot Swap
• Dimensions (LxWxH): ca. 227 x 120 x 20 mm
Package content:
• PCI Express card
• 16 x fixing screw
• 4 x HDD / SSD mounting bracket
• Driver CD
• User manual
Data sheet:
http://www.delock.de/produkt/90433/pdf.html?sprache=en
