Delock PCI Express x4 Card to 1 x internal NVMe M.2 Key M 80 mm - Low Profile Form Factor

DELOCK

90047

Jauns

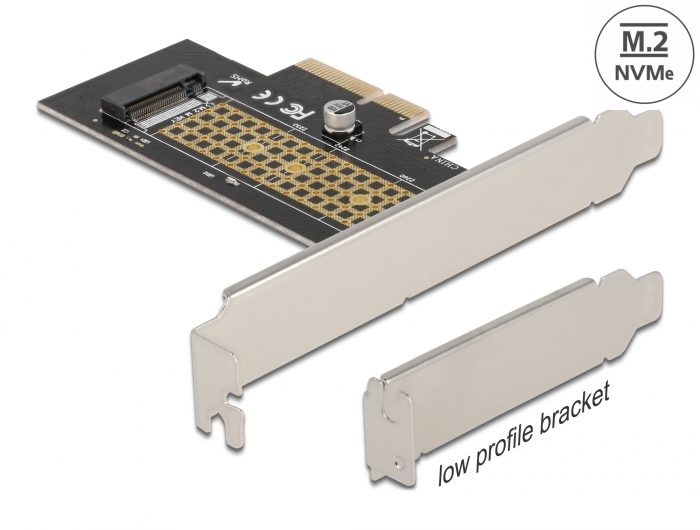

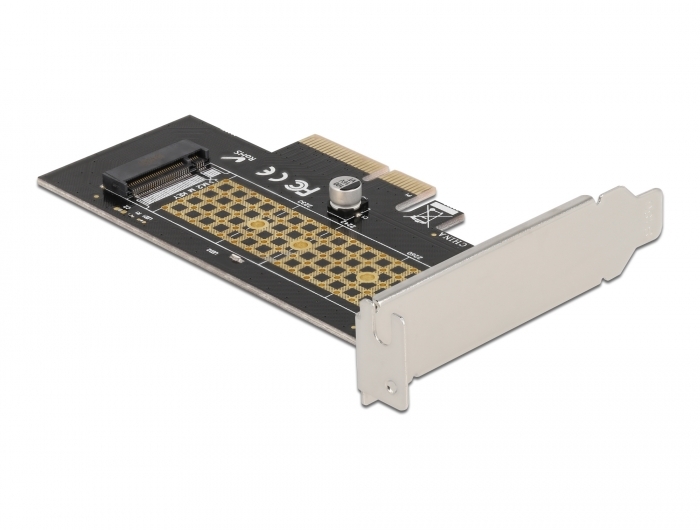

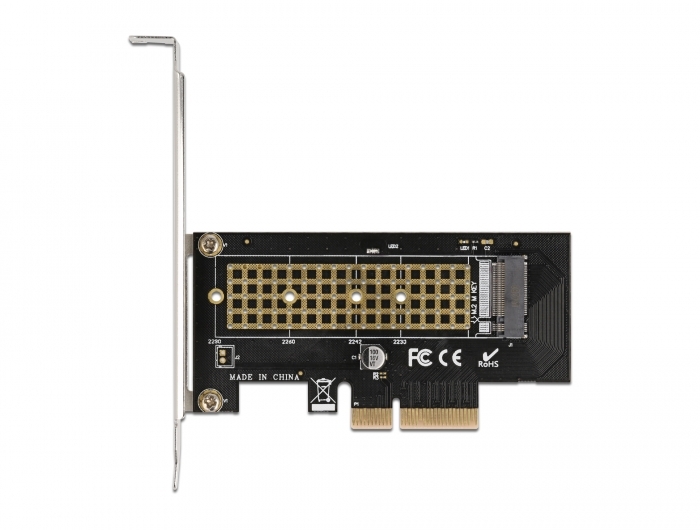

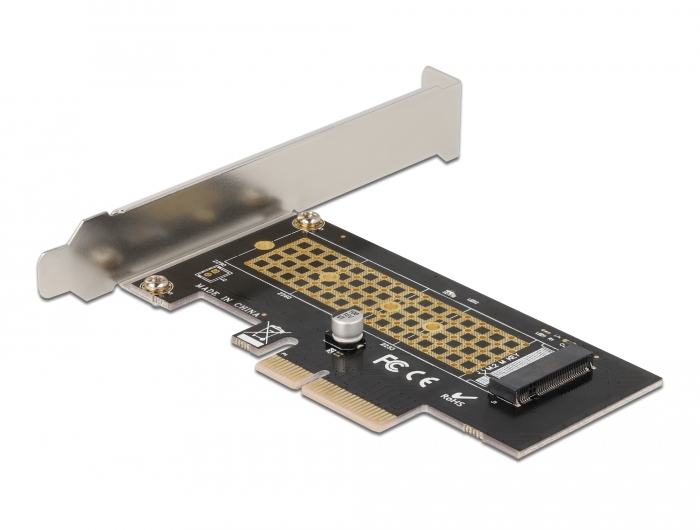

This PCI Express card by Delock expands the PC by one M.2 slot. One M.2 module in 2280, 2260, 2242 or 2230 format can be connected.
System requirements:
• Linux Kernel 5.8 or above
• Windows 8.1/8.1-64/10/10-64
• Windows Server 2019
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
Specification:
• Connectors:
  internal:
  1 x 67 pin M.2 key M slot
  1 x PCI Express x4, V4.0
• Interface: PCIe / NVMe
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M
  based on PCIe
• Maximum height of the components on the module: 1.5 mm, application of double-
  sided assembled modules supported
• 1 x LED indicator
• Supports NVM Express (NVMe)
• Bootable, ex UEFI version 2.3.1
• Supports S.M.A.R.T.
• Supports TRIM

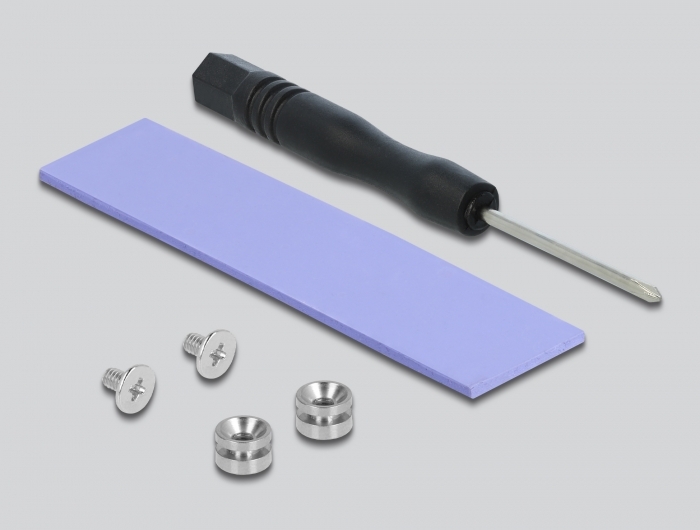

Package content:
• PCI Express card
• Low profile bracket
• Screwdriver
• Mounting material
• Thermal conductive pad
• User manual
Data sheet:
http://www.delock.de/produkt/90047/pdf.html?sprache=en
