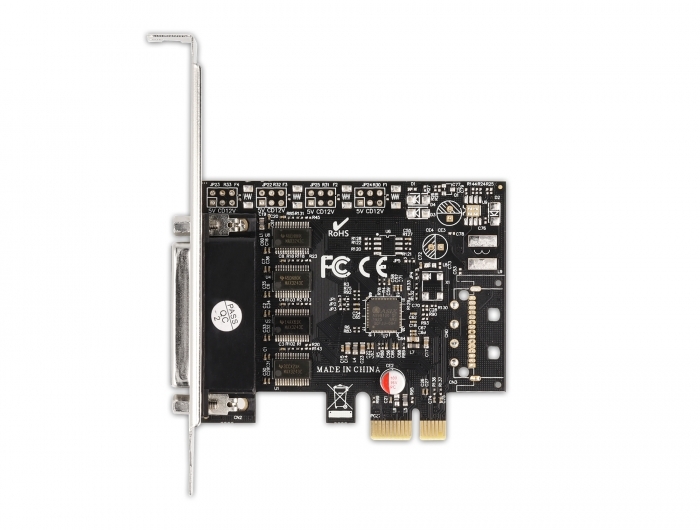

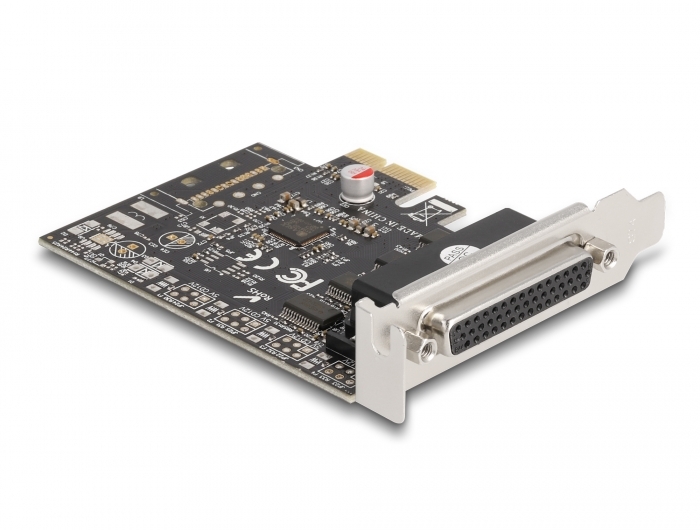

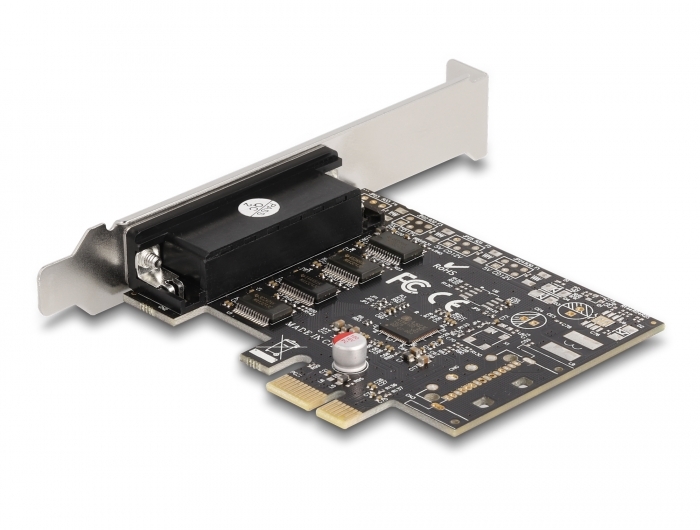

Delock PCI Express Card to 4 x Serial RS-232

DELOCK

66324

Jauns

The PCI Express card by Delock expands a PC by four external serial RS-232 ports. Different devices such as scanner, protocol converter, IoT devices etc. can be connected to this card.

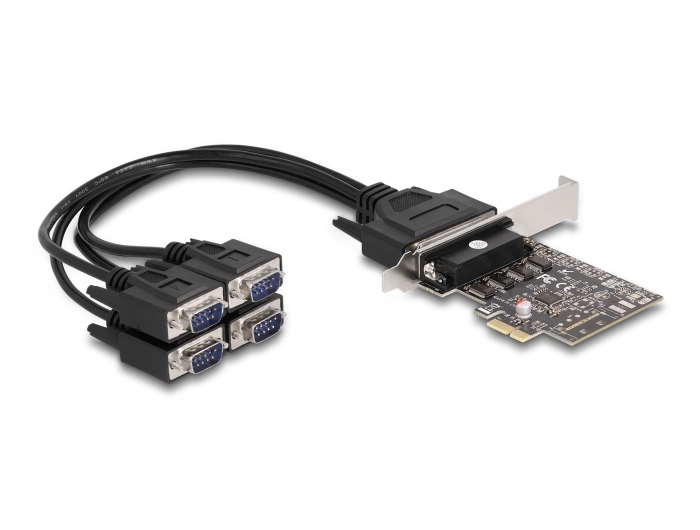

Fan-out cable
The fan-out cable provides flexibility at the RS-232 ports and simplifies the handling of computers, machines, facilities etc.

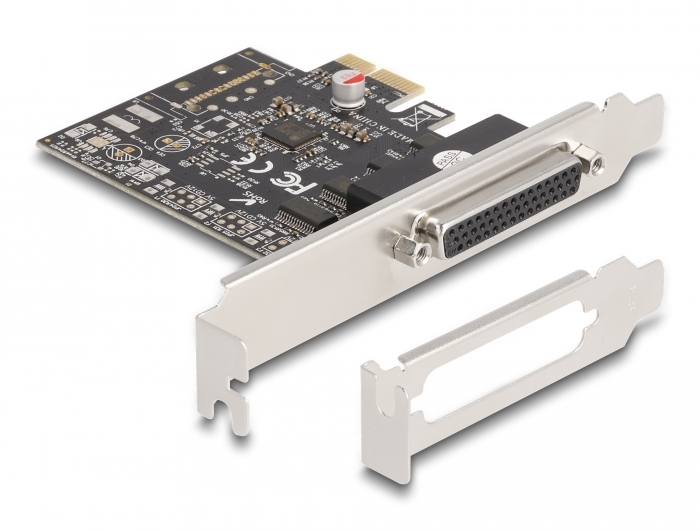

Low Profile Form Factor
The included low profile bracket enables the additional installation of the PCI Express card in industrial computers and 19″ housings.
System requirements:
• Windows 8.1/8.1-64/10/10-64/11
• Windows Server 2016/Server 2019
• PC with one free PCI Express slot
Specification:
• Connectors:
  external: 1 x D-Sub 44 pin female
  connecting cable: D-Sub 44 pin male to 4 x serial RS-232 D-Sub 9 pin male
  internal: 1 x PCI Express x1, V2.0
• Chipset: ASIX AX99100
• Compatible with 16C950 UART
• Data transfer rate up to 921.6 Kbps
• FIFO: 4 x 256 byte
• Databits: 5, 6, 7, 8, 9
• Stop bits: 1, 1.5, 2
• Parity: even, odd, none, mark, space
• Flow control: none, hardware RTS / CTS, software XON / XOFF
• Operating temperature: 0 °C ~ 70 °C
• Relative humidity: 0 ~ 90 % (non condensing)
• Dimensions (LxWxH): ca. 80 x 69 x 15 mm
• Cable length incl. connectors: ca. 38 cm
Package content:
• PCI Express card
• 1 x serial connecting cable
• 1 x low profile bracket
• Driver CD
• User manual
Data sheet:
http://www.delock.de/produkt/66324/pdf.html?sprache=en
