> >>Level One LevelOne GE PoE-Injektor Adapter POI-3014 30.0W PoE
Level One LevelOne GE PoE-Injektor Adapter POI-3014 30.0W PoE
Previous Next

Level One LevelOne GE PoE-Injektor Adapter POI-3014 30.0W PoE

LEVEL ONE

POI-3014

Jauns

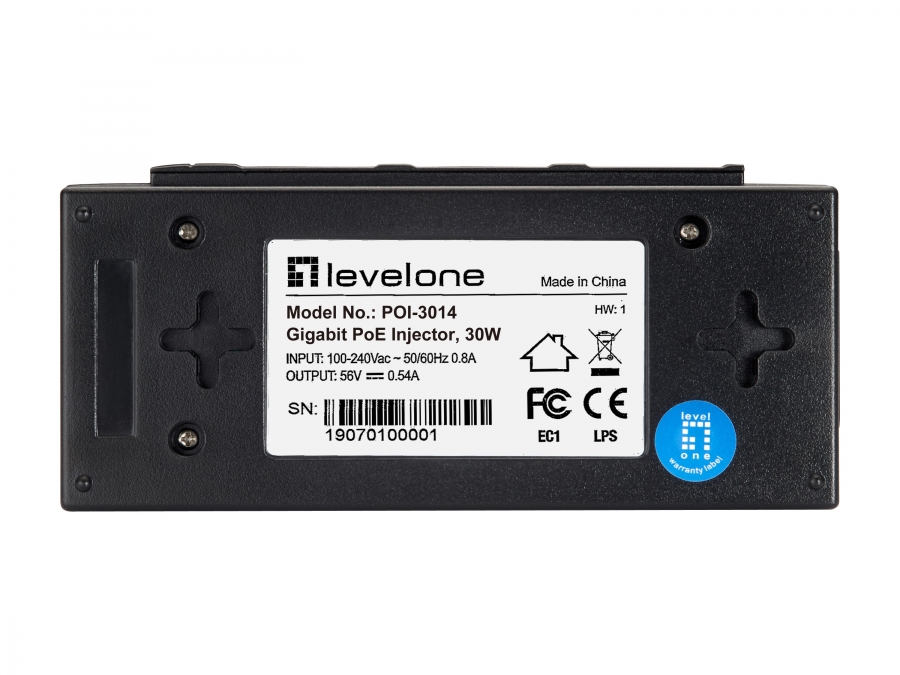

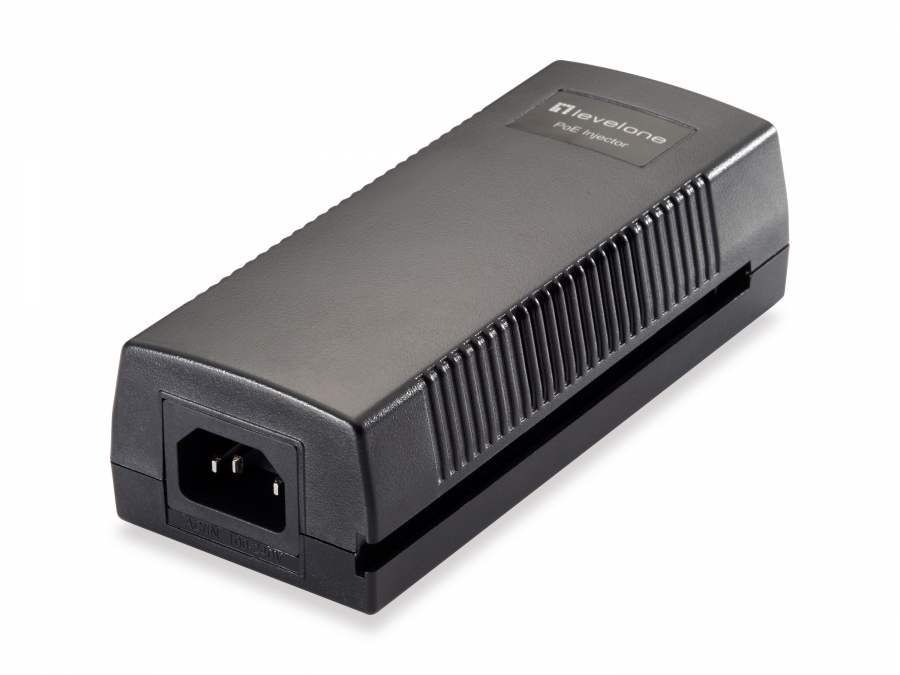

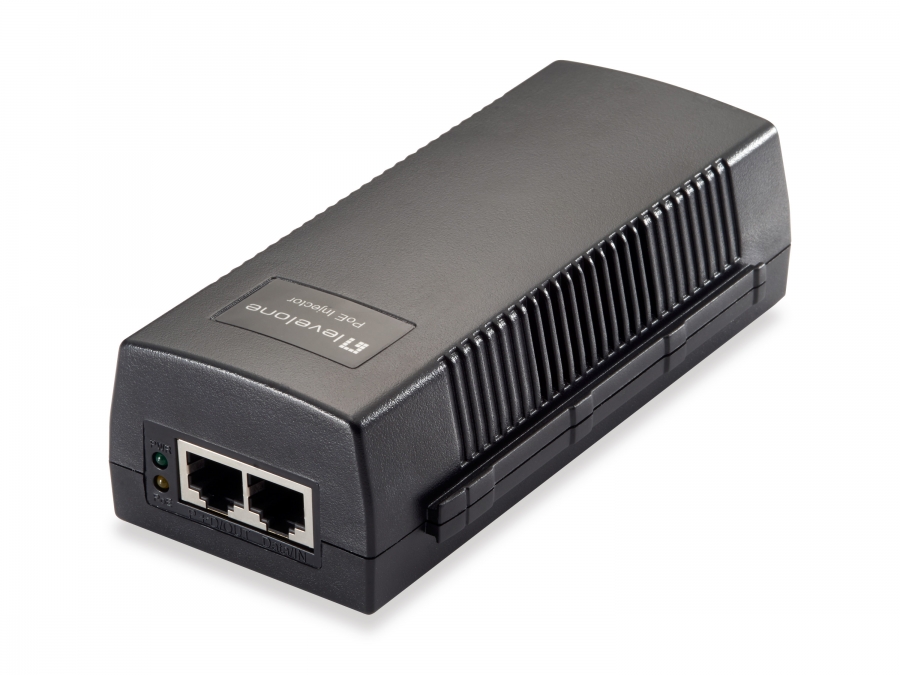

The LevelOne POI-3014 is a Power over Ethernet (PoE) injector that not only delivers a cost-effectivesolution for power distribution, but also provides a seamless way of deploying Powered Devices (PDs) onexisting LAN infrastructure.With the use of power injectors, DC power of up to 30W and the data that comes from a non-PoE switchare merged together and then transmitted to a PD such as a PoE network camera, through the Ethernetcabling. This allows you to extend the use of your existing hardware investment without needing to buyextra PoE switches.Furthermore, non-PoE devices like wireless access points can also be powered up remotely by addingadditional PoE splitters, since power and data are further split into two cables. These devices can thereforebe installed in hard-to-reach areas like ceilings where there are no outlets or electrical wiring nearby.

Ethernet interface typeFast Ethernet, Gigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Power over Ethernet (PoE)Y
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Product colourBlack
Wall mountableY
Plug and PlayY
Surge protectionY
Maximum operating distance100 m

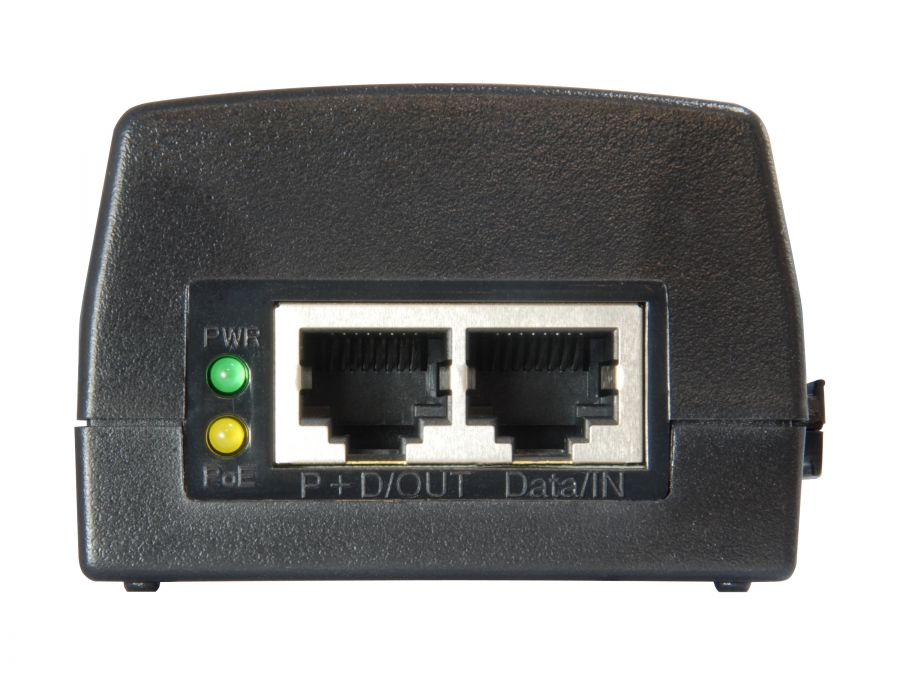

LED indicatorsPoE, Power
Pin assignment & polarity4/5 (+), 7/8 (-)
CertificationFCC Part 15, CE
Ethernet LAN (RJ-45) ports2
Power over Ethernet (PoE) voltage52 V

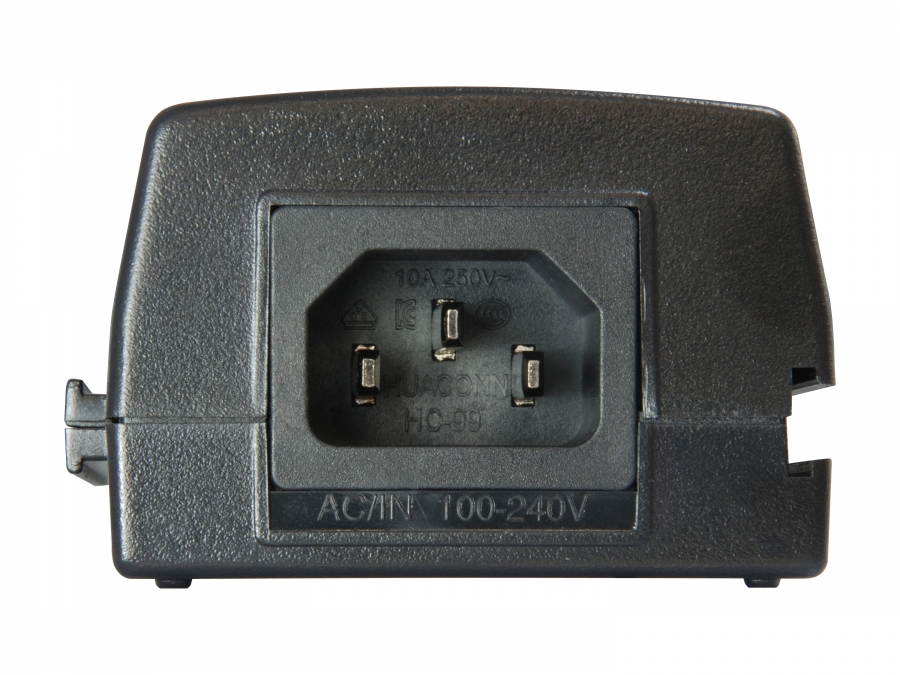

AC adapter input voltage100 - 240 V
AC adapter frequency50/60 Hz
Input current0.8 A
Output current0.6 A
Power consumption (max)30 W
Power over Ethernet (PoE) power per port30 W
Operating temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)5 - 95%
Storage temperature (T-T)0 - 70 °C
Storage relative humidity (H-H)5 - 95%
Width145.7 mm
Depth64.4 mm
Height43.4 mm
Weight350 g
Package width210 mm
Package depth145 mm
Package height55 mm
Package weight400 g
Number of products included1 pc(s)
Quick installation guideY
Sustainability certificatesRoHS
Harmonized System (HS) code85044095
