> >>Level One LevelOne 2x FE PoE-Injektor Adapter POI-3004 30.0W PoE
Level One LevelOne 2x FE PoE-Injektor Adapter POI-3004 30.0W PoE

Level One LevelOne 2x FE PoE-Injektor Adapter POI-3004 30.0W PoE

LEVEL ONE

POI-3004

Jauns

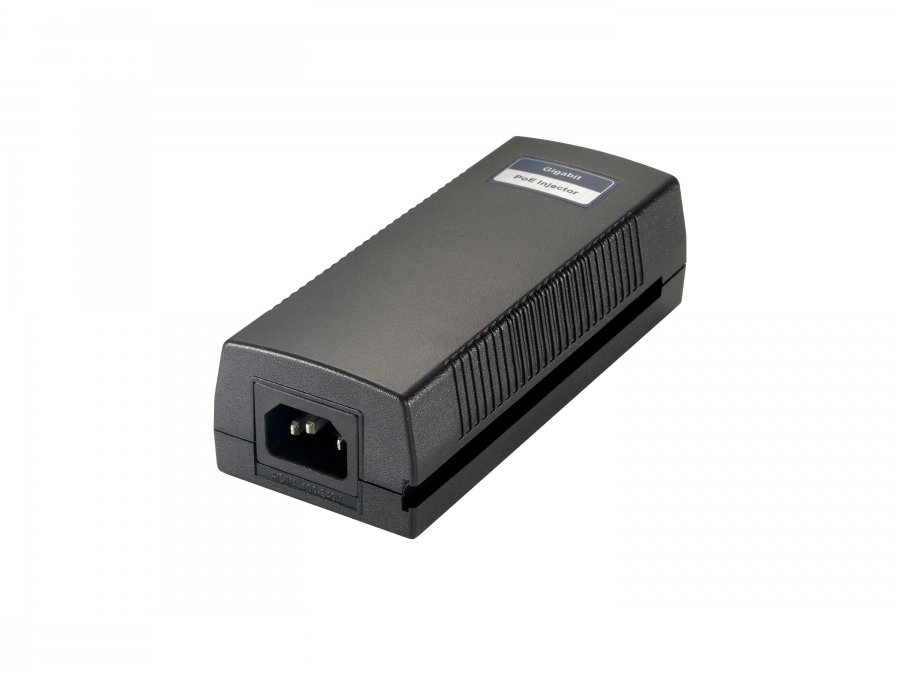

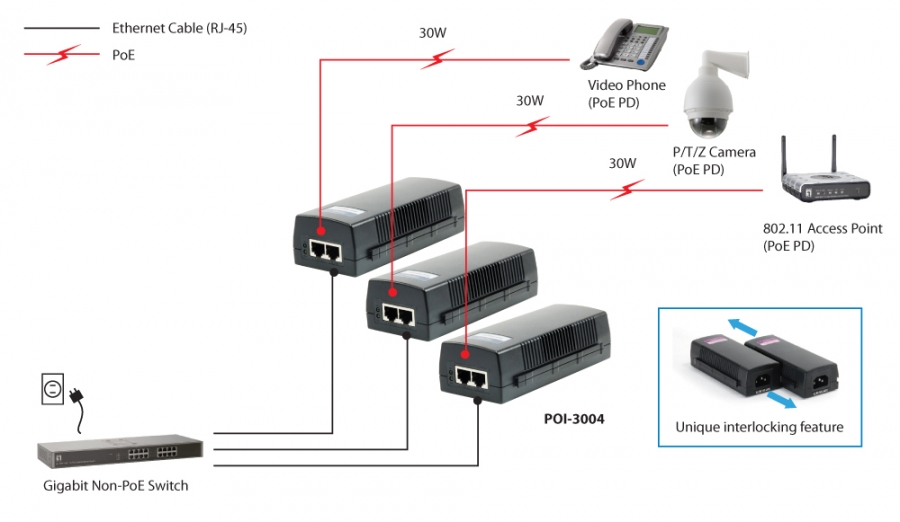

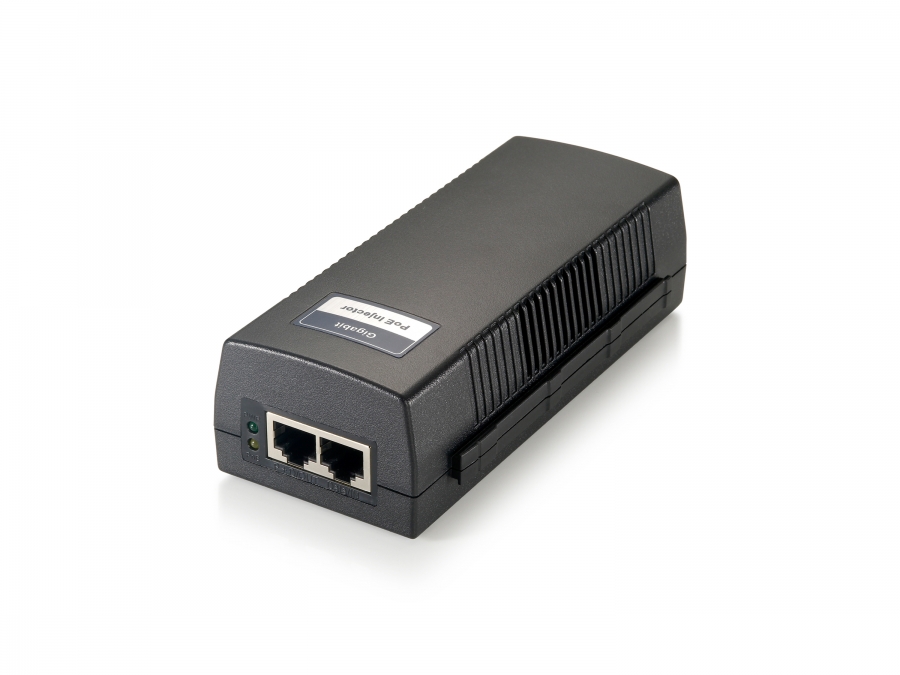

The LevelOne POI-3004 is a Power over Ethernet (PoE) injector that not only delivers a cost-effective solution for power distribution, but also provides a seamless way of deploying Powered Devices (PDs) on existing LAN infrastructure.With the use of power injectors, DC power of up to 30W and the data that comes from a non-PoE switch are merged together and then transmitted to a PD such as a PoE network camera, through the Ethernet cabling. This allows you to extend the use of your existing hardware investment without needing to buy extra PoE switches.Furthermore, non-PoE devices like wireless access points can also be powered up remotely by adding additional PoE splitters, since power and data are further split into two cables. These devices can therefore be installed in hard-to-reach areas like ceilings where there are no outlets or electrical wiring nearby.- PoE supplies up to 30W of power feeding on 2 pairs - Remove the need for a bulky power adapter and power line - Delivers power and data to equipment via a single Ethernet cable - Remote power feeding up to 100m - Unique interlocking feature for easy installation - Surge protected to enhance safety - Simple Plug and Play installation - Compact, lightweight design

Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Power over Ethernet (PoE)Y
Product colourBlack
Maximum operating distance100 m
LED indicatorsPoE, Power
CertificationFCC Part 15, CE, RoHS
Ethernet LAN (RJ-45) ports2
Power over Ethernet (PoE) voltage52 V
Output power30 W
Input voltage100 - 240 V
Input frequency50/60 Hz
Input current0.8 A
Output current0.6 A
Power consumption (max)30 W
Operating temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)5 - 95%
Storage temperature (T-T)0 - 70 °C
Storage relative humidity (H-H)5 - 95%
Width55 mm
Depth35.5 mm
Height173.5 mm
Weight275 g
Package width55 mm
Package depth125 mm
Package height210 mm
Package weight450 g
Number of products included1 pc(s)
Power cord includedY
Harmonized System (HS) code85044095
