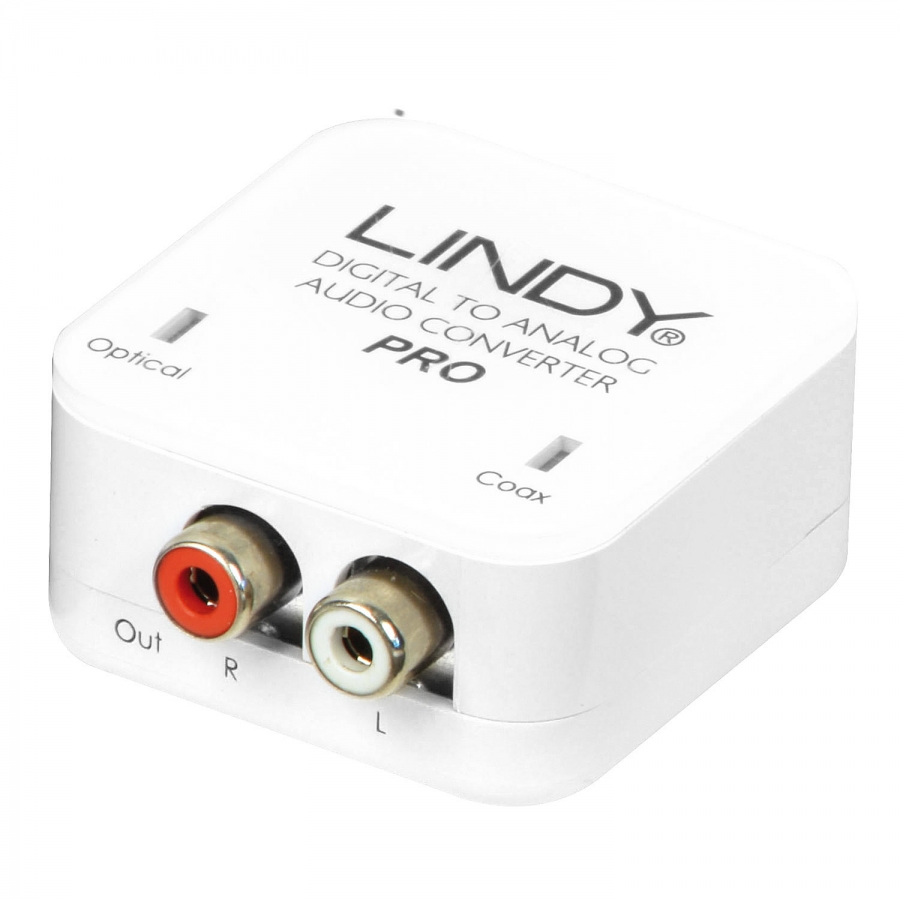

SPDIF DAC Pro

LIN70468

Jauns

Specifications

  • Video Interface: -
  • Interface Standard: -
  • Supported Bandwidth: -
  • Maximum Resolution: -
  • HDCP Support: -
  • Audio Interface: Toslink (Optical), SPDIF
  • Chipset: PCM911+PCM5101
  • Supported Audio: LPCM 2.0
  • Maximum Supported Audio Sample Rate: 192kHz
  • Input Impedance:
    • SPDIF: 75Ω
    • Toslink (Optical): 0Ω
  • Output Impedance: 470Ω
  • Output Voltage: 2V RMS
  • Frequency Response: -
  • Signal to Noise Ratio: 104db
  • Special Features: Input Signal Switch



Connectors

  • Input:
    • Toslink (Optical)
    • SPDIF (Coaxial)
  • Output: L/R Analogue (Phono)
  • Power: 5.5/2.1mm DC Socket



Physical Properties

  • Dimensions (approx.) WxDxH: 46x46x23.5mm (1.81x1.81x0.93in)
  • Housing Material: Plastic
  • Net Weight: 0.09kg (0.2lb)
  • Operating Temperature: 0°C - 40°C (32°F - 104°F)
  • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
  • Humidity: 20-90% RH (non-condensing)
  • Power Requirements: 5VDC 1.2A
  • Colour: White



Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 155x60x120mm (6.1x2.36x4.72in)
  • Gross Weight: 0.26kg (0.57lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH



Package Contents

  • Digital to Analogue Audio Converter Pro
  • Multi-Country Power Supply (EU, UK, US & AUS)
  • PSU Adapters: EU, US, UK & AUS
  • Instruction Leaflet for Multi Country Power Adapter
  • LINDY Manual



Purchasing Information

  • No.: 70468
  • EAN: 4002888704687
