Specifications - AV Interface: HDMI, DisplayPort, Type C (Alt. mode)
- Interface Standard: HDMI 2.0b, DP 1.4
- Supported Bandwidth: 18Gbps
- Maximum Distance: 70m (229.66ft)
- Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit
- HDCP Support: 2.2
- EDID Pass Through: up to 14 resolutions selectable
- Supported Audio: HDMI Pass-through, 2Ch audio stereo
- Separate Audio Ports: 3.5mm
- IR Support: -
- CEC Support: -
- Serial Interface: RS-232 Pass-through
- Transmission Protocol: HDBaseT
- Transmission Medium: Cat.6
- Laser Class (only for Fibre): -
- Wavelength (only for Fibre): -
- Chipset: VS010
- Special Features:
- Multiview
- Auto-switch
- Seamless switching
- EDID management
- PoC (Power over Cable)
Connectors - Input: 3xHDMI Type A (Female), DisplayPort (Female), USB Type C (Female)
- Output: HDBaseT RJ-45 (Female), HDMI Type A (Female), 3.5mm Audio (Female)
- Bi-directional Ports: RS-232 3-Pin Terminal Block
- Power: 5.5/2.1mm
Physical Properties - Dimensions (approx.) WxDxH: 225x100x25mm (8.86x3.94x0.98in)
- Housing Material: Metal
- Net Weight: 0.59kg (1.3lb)
- Operating Temperature: 0°C - 40°C (32°F - 104°F)
- Storage Temperature: -20°C - 60°C (-4°F - 140°F)
- Humidity: 10-50% RH (non-condensing)
- Power Requirements: 24VDC 1A
- Colour: Black
Miscellaneous - Packaging Type: Carton Box
- Packaging Dimensions: 273x138x75mm (10.75x5.43x2.95in)
- Gross Weight: 1.02kg (2.25lb)
- Warranty (Years): 2
- Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

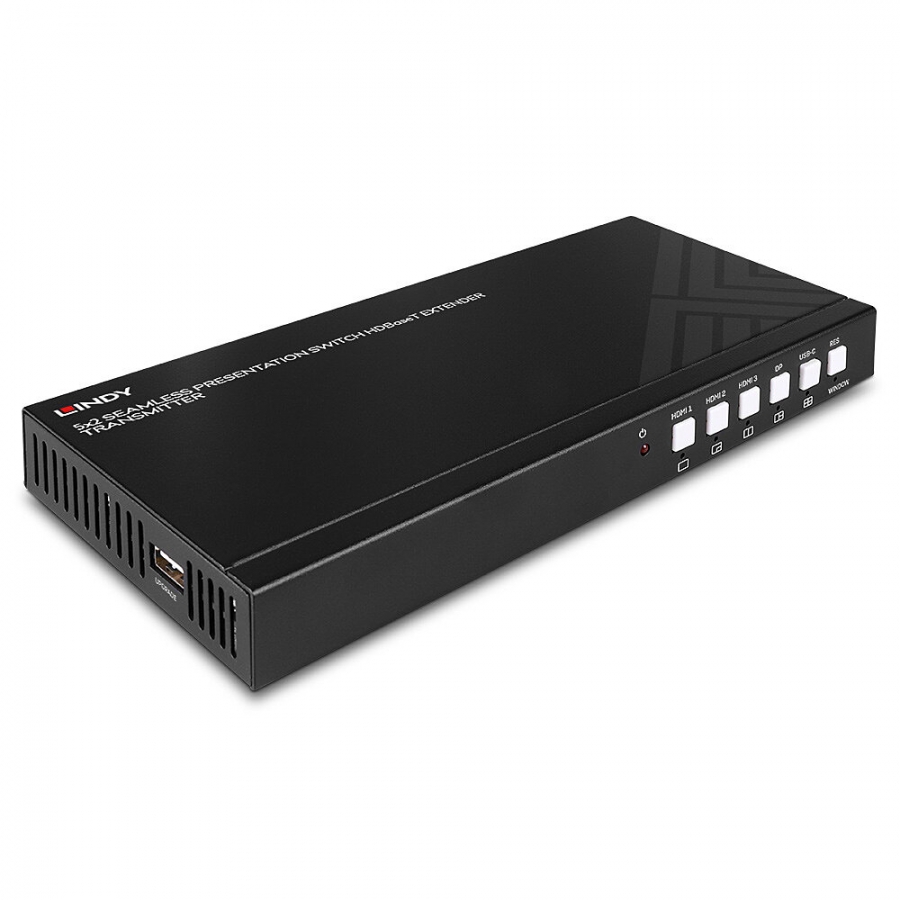

Package Content - Presentation Switch HDBaseT Transmitter
- Multi-country Power Supply (UK, EU, US & AUS)
- 3-Pin Terminal Block
- Lindy Manual
Purchasing Information - No.: 38338
- EAN: 4002888383387
|
