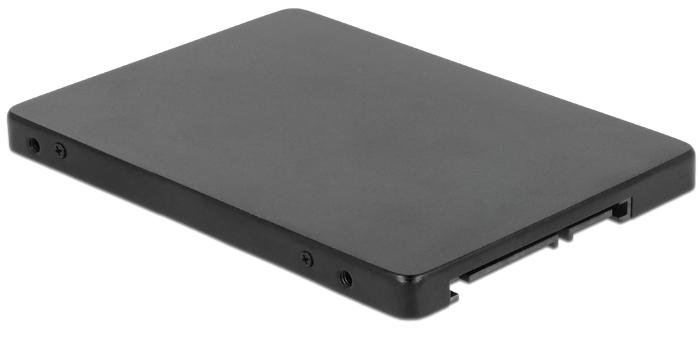

Delock 2.5 Converter SATA 22 Pin M.2 NGFF with Enclosure

DELOCK

62688

Jauns

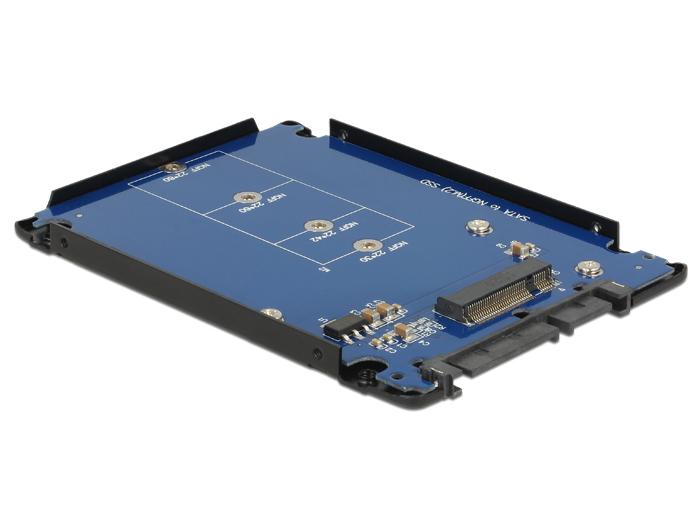

This Delock converter enables the connection of a M.2 NGFF SSD in 2280, 2260, 2242 and 2230 format. It can be used as a replacement for a 2.5â³ HDD. The converter will be installed into the system internally through a SATA 22 pin interface.

More details

Description:
This Delock converter enables the connection of a M.2 NGFF SSD in 2280, 2260, 2242 and 2230 format. It can be used as a replacement for a 2.5â³ HDD. The converter will be installed into the system internally through a SATA 22 pin interface.

Specification:
• Connector:
1 x SATA 6 Gb/s 22 pin male >
1 x 67 pin M.2 NGFF key B slot
• Interface: SATA
• Form factor: 2.5â³
• Supports M.2 NGFF modules in format 2280, 2260, 2242 and 2230 with key B
or key B+M based on SATA
• Maximum height of the components on the module: 1.35 mm
application of double-sided assembled modules supported
• Bootable

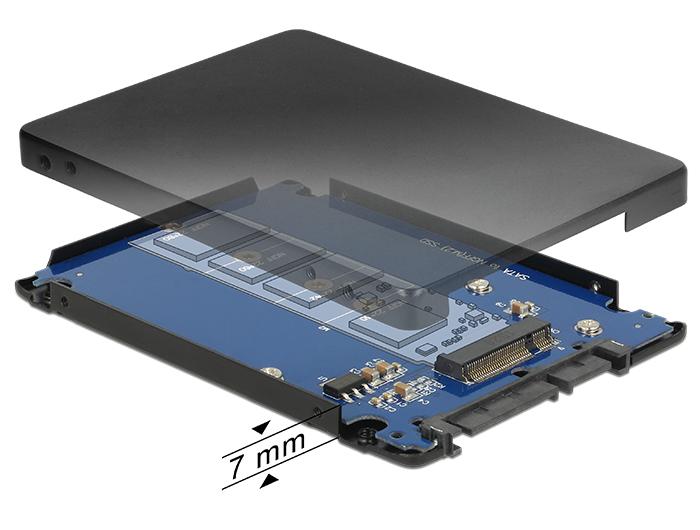

• Dimensions (LxWxH): ca. 100 x 70 x 7 mm
• OS independent, no driver installation necessary

System requirements:
• A free SATA 22 pin interface

Package content:
• Converter

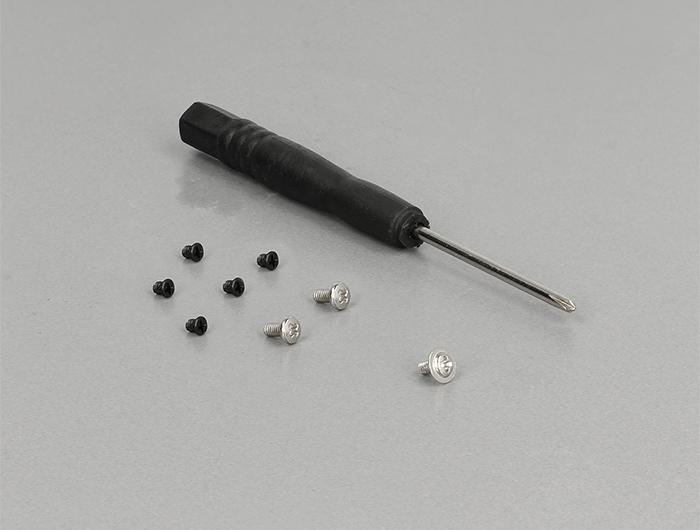

• Screw for M.2 NGFF module, screws for the enclosure
• Screwdriver
• User manual
