Delock M.2 Adapter M.2 2 x RJ45 Gigabit LAN port -40°C ~ 85°C (PCIe)

DELOCK

62754

Jauns

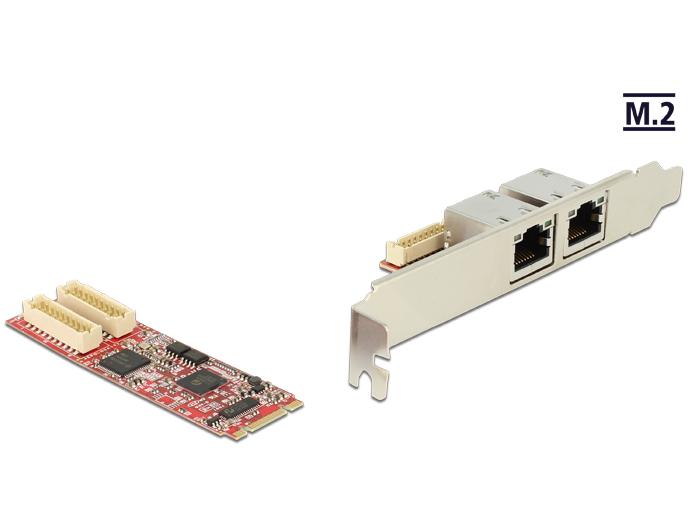

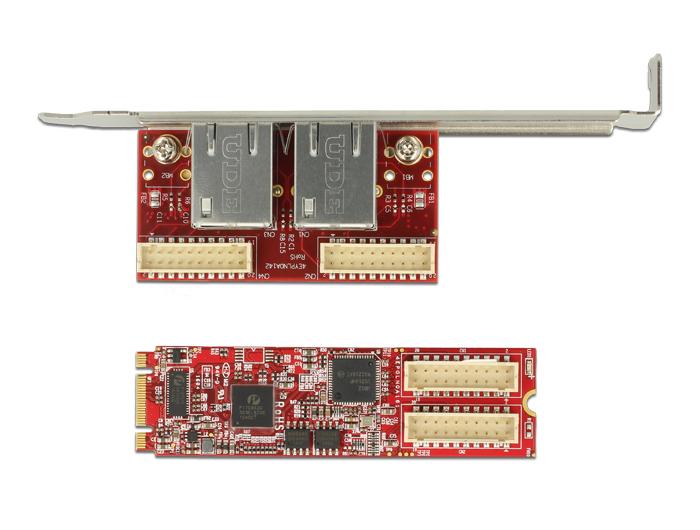

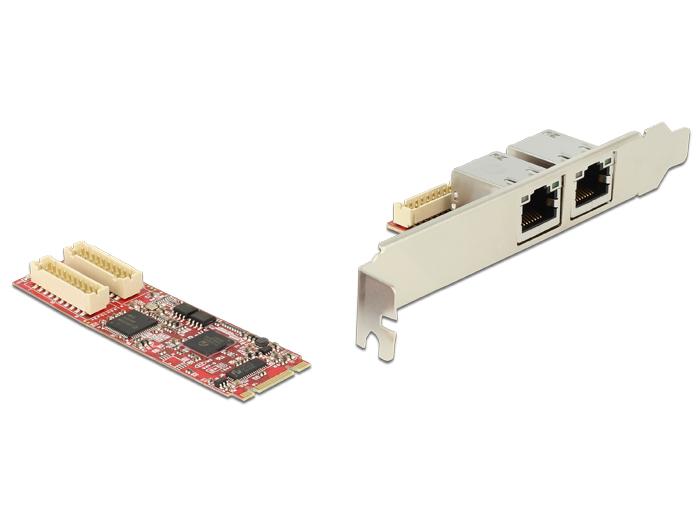

This M.2 module by Delock expands a system by two RJ45 Gigabit LAN ports.The module and the RJ45 adapter board are designed for operation in the extendedtemperature range from -40°C to 85°C.

More details

Description:
This M.2 module by Delock expands a system by two RJ45 Gigabit LAN ports.
The module and the RJ45 adapter board are designed for operation in the extended
temperature range from -40°C to 85°C.


Specification:
• Connector:
1 x M.2 Key B+M male>
2 x Gigabit LAN RJ45 female
• Interface: PCIe (2.1 x1)
• Form factor: M.2 2280
• Chipset: Intel® i210
• Maximum power consumption: 0.65 W (3.3 V, 200 mA)
• Vibration: 5G @ 7 ~ 2000 Hz
• Shock: 50G @ 0.5 ms
• Operation temperature: -40°C ~ 85°C - Industrial grade
• Storage temperature: -55°C ~ 95°C
• Dimensions (LxWxH): ca. 50.90 x 30.00 x 7.05 mm

System requirements:
• Windows 7/7-64/8.1/8.1-64/10/10-6, Linux Kernel 2.6, 3.x
• A free M.2 Key B+M slot with at least 80 mm length
• M.2 slot with PCIe interface

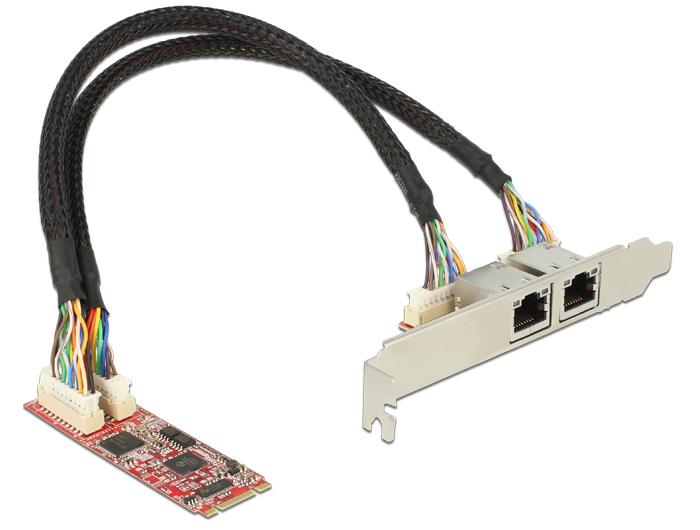

Package content:
• M.2 module
• RJ45 daughter board
• Connection cable
• Slot bracket
